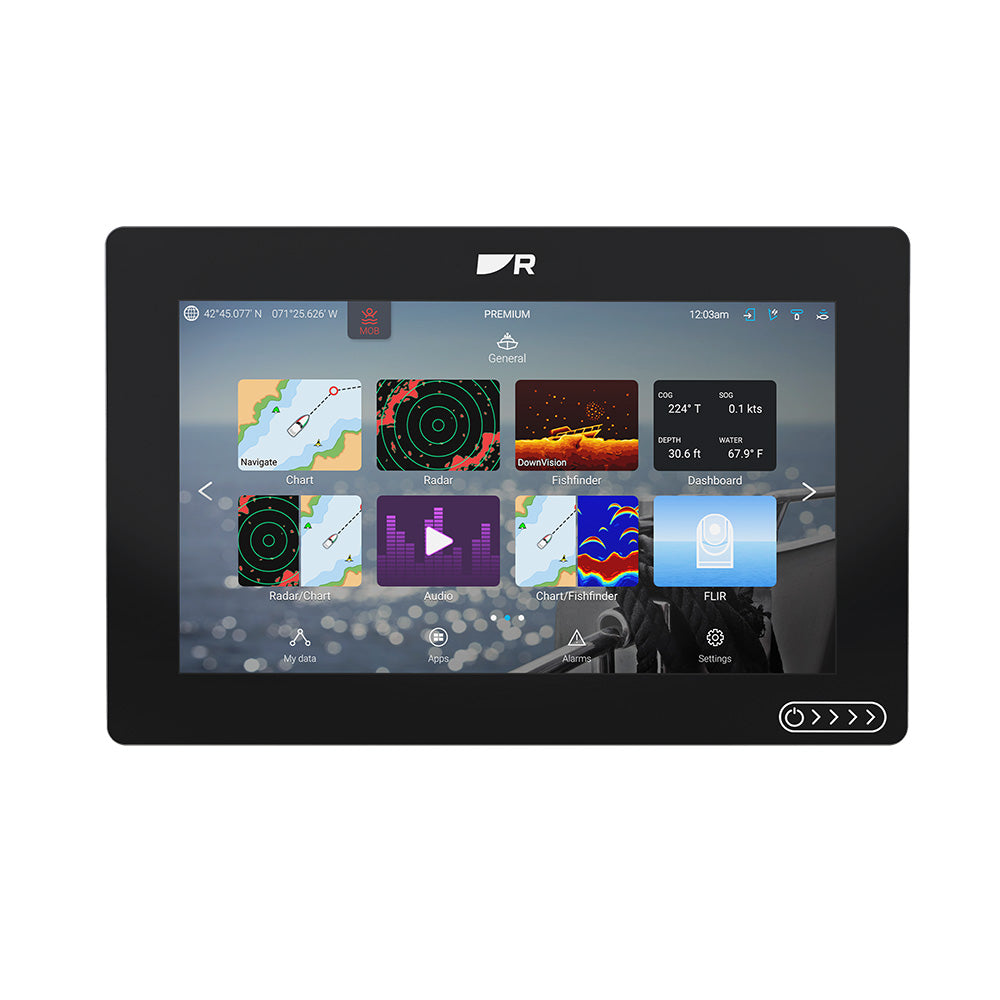

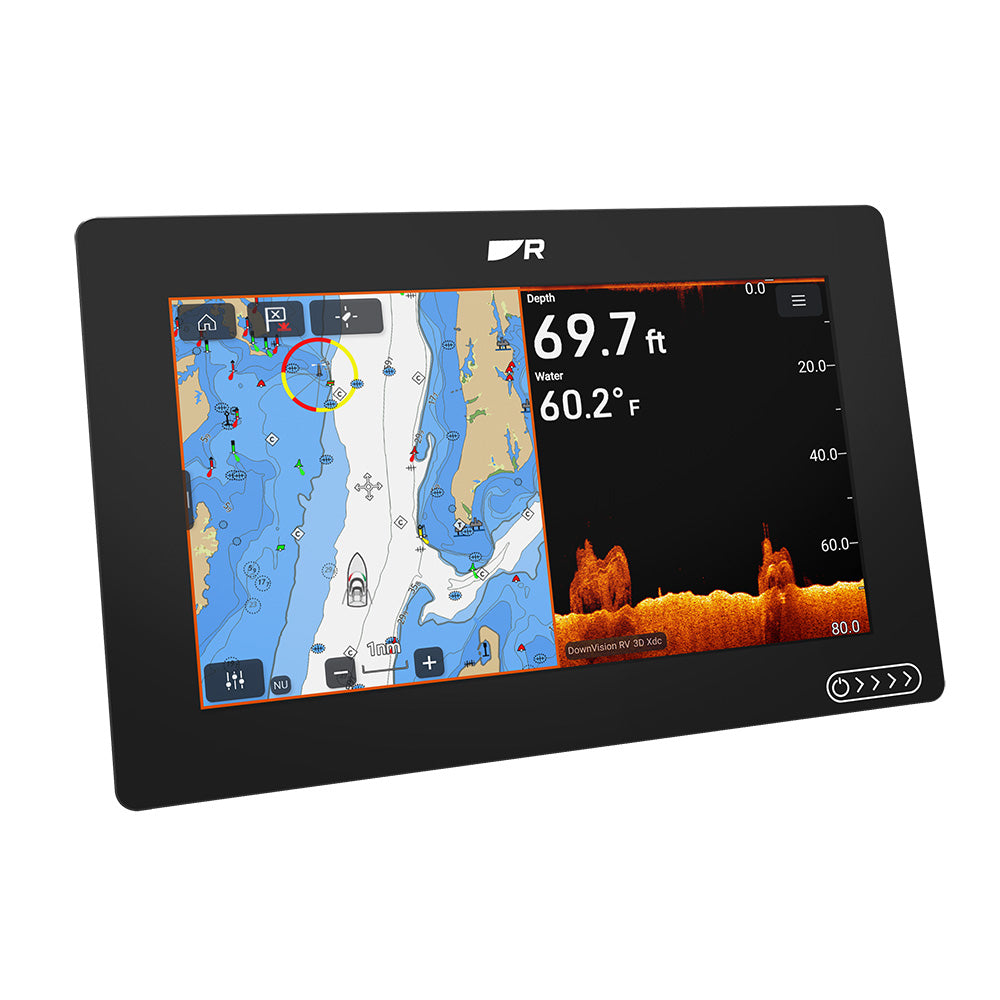

Raymarine Axiom 2 RV 9-Inch Chartplotter and Fishfinder with RealVision 3D Sonar and Lighthouse North America Chart – No Transducer - E70723-00-102

Axiom 2 RV 9 Chartplotter/Fishfinder with RealVision 3D Sonar Lighthouse North America Chart - No Transducer

Axiom 2 is the next generation of the award-winning Raymarine Axiom chartplotter product line. Featuring a powerful 6-core processor, rugged HydroTough displays, and expanded app and engine integration, Axiom 2 delivers a faster, more intuitive, and more responsive navigation experience for leisure boaters of all kinds. Designed for sailors, anglers, cruisers, and motor-yacht owners, Axiom 2 combines next-level performance with Raymarines signature durability and ease of use.

Features:

• Rugged all-weather, marine-ready design backed by a 3-year warranty.
• 6-core processor delivers faster chart rendering, quicker startups, and smoother networking and video performance.
• 7, 9, and 12-inch HydroTough IPS touchscreen displays, with high brightness (up to 1,800 nits) for all-day visibility.
• Powered by LightHouse OS with an intuitive interface and access to over 30 LightHouse apps.
• RayNet Gigabit Ethernet for high-speed integration of radar, cameras, sonar, and accessory devices.
• 64 GByte of onboard storage for apps, charts, video, and user data.
• Broad chart compatibility, including LightHouse Charts Gen 2, Navionics, C-MAP, and more.
• Built-in high-performance GPS / GNSS with fast 10 Hz position updates.
• Smart vessel monitoring and control, including engine integration, NMEA 2000, and digital switching support.

Technical Specifications:

• Dimensions (Trunnion mounted) - 10.43 (W) x 7.39 (H) x 7.01 (D)
• Dimensions (Surface / Flush mounted) - 9.61 (W) x 6.21 (H) x 7.01 (D)
• Voltage - Nominal: 12 V DC / Operating range: 8 to 16 V DC
• Power Consumption (max) - 11.98W
• Inline fuse / thermal breaker rating - 7A
• Size Type - 9 (diagonal), IPS
• Resolution - HD 1280 x 720
• Brightness/luminance - 1500 bits / 1500 cd/m
• Protective Coating - HydroTough (Oleophobic)
• Transducer - 1x 25-pin RealVision connector
• NMEA 2000 / DeviceNet - 1x DeviceNet male connector (on power cable) (LEN rating: 1)
• Network - Wired: 1x RayNet (10 / 100 / 1000 Mbit/sec Ethernet), WiFi: 1x 802.11 b / g / n, Bluetooth: v4.0
• GNSS - Internal GNSS receiver: GPS / GLONASS / BeiDou (incl. SBAS) (Cold start: <2 minutes) (10 Hz refresh rate)
• Internal Storage - 64 GByte (Solid State)
• External MicroSD storage - 1x MicroSDXC card slot
• Sonar Channels (Output power / Responsive Frequency Range) - RealVision 3D: (70 W / 350 kHz 5%), SideVision: (70 W / 350 kHz 5%), DownVision: (35 W / 350 kHz 5%), CHIRP High: (100 W / 200 kHz 5%)

The Raymarine Axiom 2 RV 9-inch chartplotter and fishfinder combines advanced navigation technology with robust durability, making it an essential tool for anglers, cruisers, and motor-yacht owners. Powered by a 6-core processor, this device provides faster chart rendering, quicker startups, and smoother operation, ensuring a responsive experience on the water. Its HydroTough IPS touchscreen display offers high brightness (up to 1,800 nits) for excellent visibility in all lighting conditions, and the rugged all-weather design is backed by a 3-year warranty for peace of mind.
Designed for seamless integration, the Axiom 2 features RayNet Gigabit Ethernet connectivity for high-speed data transfer with radar, cameras, sonar, and other accessories. With 64 GByte of onboard storage, users can store a wide array of charts, maps, videos, and user data. The device supports broad chart compatibility, including Lighthouse Charts Gen 2, Navionics, and C-MAP, offering flexible options for navigation and fishing. Its built-in high-performance GPS/GNSS receiver provides rapid 10 Hz updates, ensuring accurate positioning at all times.
The Axiom 2 RV 9-inch also incorporates smart vessel monitoring and control features, including engine integration, NMEA 2000, and digital switching support. The device's RealVision 3D sonar, along with SideVision and DownVision capabilities, delivers detailed underwater imaging with high output power and responsive frequency ranges. Its compact dimensions and lightweight design make installation straightforward, whether surface-mounted or flush-mounted. With an intuitive interface powered by LightHouse OS and access to over 30 LightHouse apps, this chartplotter/fishfinder offers an unmatched user experience for navigation and fishing enthusiasts alike.
Ideal for a variety of marine environments, the Raymarine Axiom 2 RV 9-inch chartplotter is built to withstand harsh conditions while providing reliable, high-quality performance. Its comprehensive feature set makes it a versatile choice for anyone seeking a durable, high-performance navigation and fishfinding system that enhances safety and efficiency on the water.

Features:

• Rugged all-weather, marine-ready design backed by a 3-year warranty

• Powerful 6-core processor for faster chart rendering and smoother operation

• 7, 9, and 12-inch HydroTough IPS touchscreen displays with high brightness for daylight visibility

• Powered by LightHouse OS with access to over 30 LightHouse apps

• RayNet Gigabit Ethernet for high-speed integration of radar, cameras, sonar, and accessories

• 64 GByte onboard storage for apps, charts, and user data

• Broad chart compatibility, including Lighthouse Charts Gen 2, Navionics, and C-MAP

• Built-in 10 Hz GPS/GNSS receiver for accurate positioning

• Smart vessel monitoring and control, including engine integration and digital switching

• RealVision 3D, SideVision, and DownVision sonar channels for detailed underwater imaging
