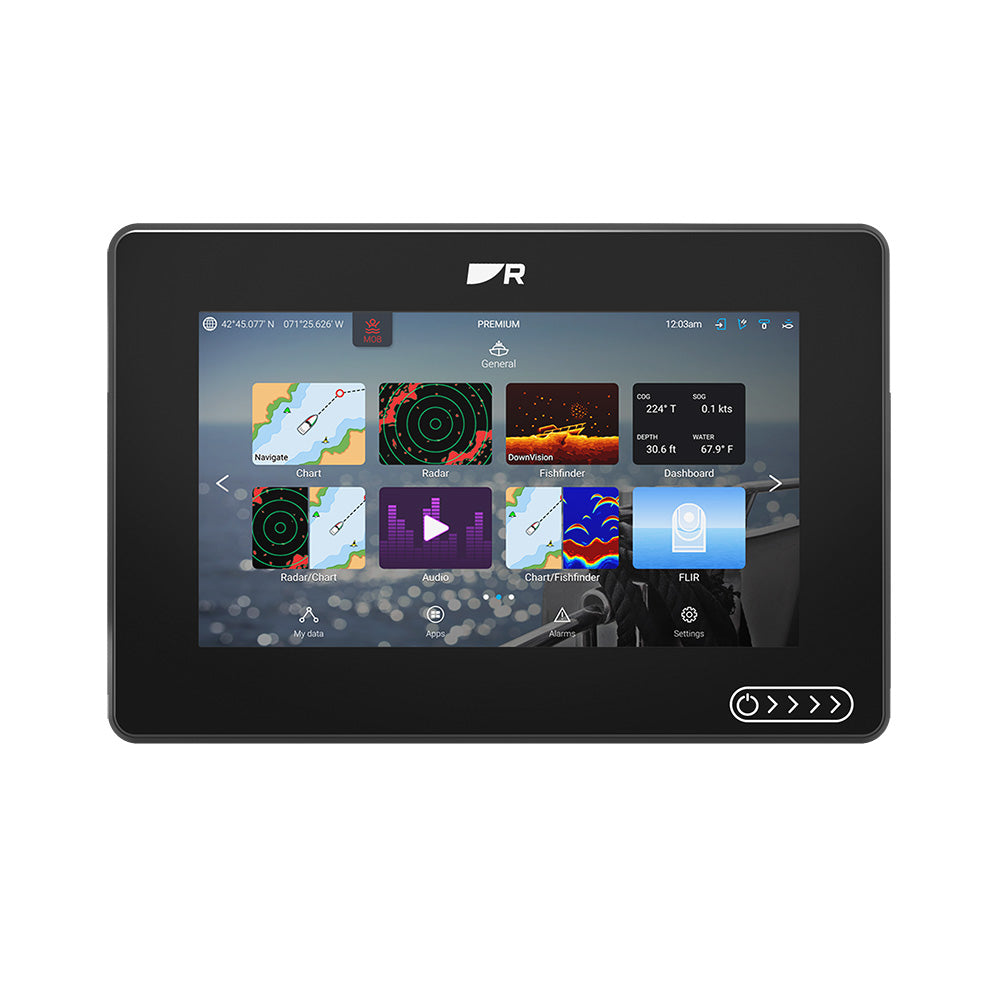

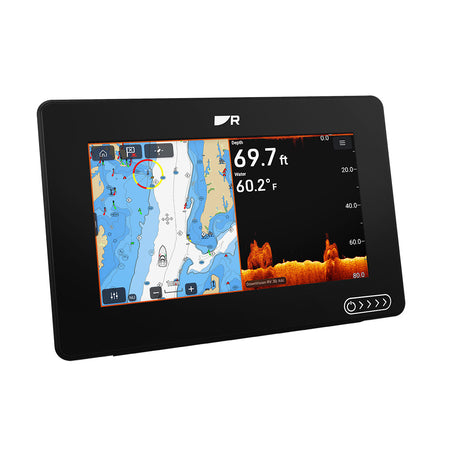

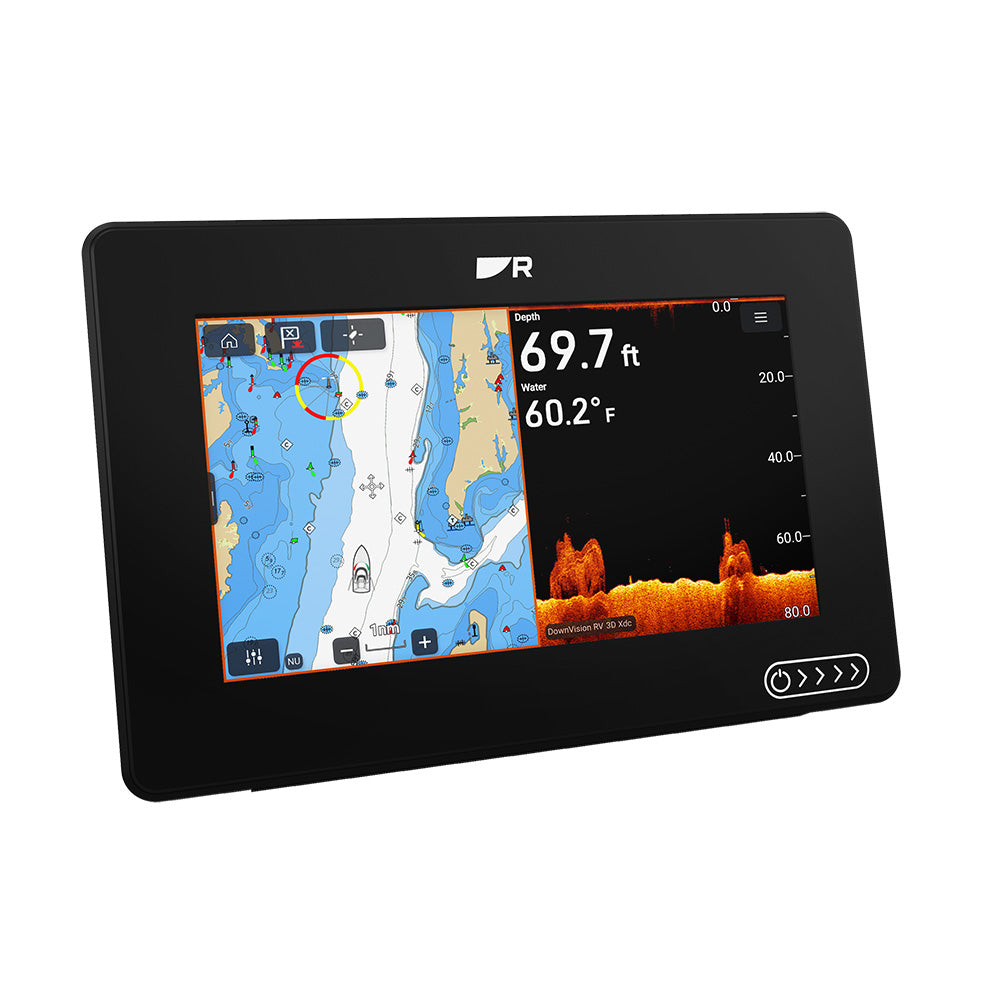

Raymarine Axiom 2 RV 7-inch Chartplotter and Fishfinder with RealVision 3D Sonar - No Transducer - E70721

Axiom 2 RV 7 Chartplotter/Fishfinder with RealVision 3D Sonar - No Transducer

Axiom 2 is the next generation of the award-winning Raymarine Axiom chartplotter product line. Featuring a powerful 6-core processor, rugged HydroTough displays, and expanded app and engine integration, Axiom 2 delivers a faster, more intuitive, and more responsive navigation experience for leisure boaters of all kinds. Designed for sailors, anglers, cruisers, and motor-yacht owners, Axiom 2 combines next-level performance with Raymarines signature durability and ease of use.

Features:

• Rugged all-weather, marine-ready design backed by a 3-year warranty.
• 6-core processor delivers faster chart rendering, quicker startups, and smoother networking and video performance.
• 7, 9, and 12-inch HydroTough IPS touchscreen displays, with high brightness (up to 1,800 nits) for all-day visibility.
• Powered by LightHouse OS with an intuitive interface and access to over 30 LightHouse apps.
• RayNet Gigabit Ethernet for high-speed integration of radar, cameras, sonar, and accessory devices.
• 64 GByte of onboard storage for apps, charts, video, and user data.
• Broad chart compatibility, including LightHouse Charts Gen 2, Navionics, C-MAP, and more.
• Built-in high-performance GPS / GNSS with fast 10 Hz position updates.
• Smart vessel monitoring and control, including engine integration, NMEA 2000, and digital switching support.

Technical Specifications:

• Dimensions (Trunnion mounted) - 9.86 (W) x 6.4 (H) x 8.58 (D)
• Dimensions (Surface / Flush mounted) - 7.92 (W) x 5.24 (H) x 8.58 (D)
• Voltage - Nominal: 12 V DC / Operating range: 8 to 16 V DC
• Power Consumption (max) - 9.84W
• Inline fuse / thermal breaker rating - 7A
• Size Type - 7 (diagonal), IPS
• Resolution - WSVGA 1024 x 600
• Brightness/luminance - 1500 bits / 1500 cd/m
• Protective Coating - HydroTough (Oleophobic)
• Transducer - 1x 25-pin RealVision connector
• NMEA 2000 / DeviceNet - 1x DeviceNet male connector (on power cable) (LEN rating: 1)
• Network - Wired: 1x RayNet (10 / 100 / 1000 Mbit/sec Ethernet), WiFi: 1x 802.11 b / g / n, Bluetooth: v4.0
• GNSS - Internal GNSS receiver: GPS / GLONASS / BeiDou (incl. SBAS) (Cold start: <2 minutes) (10 Hz refresh rate)
• Internal Storage - 64 GByte (Solid State)
• External MicroSD storage - 1x MicroSDXC card slot
• Sonar Channels (Output power / Responsive Frequency Range) - RealVision 3D: (70 W / 350 kHz 5%), SideVision: (70 W / 350 kHz 5%), DownVision: (35 W / 350 kHz 5%), CHIRP High: (100 W / 200 kHz 5%)

The Raymarine Axiom 2 RV 7-inch chartplotter and fishfinder offers advanced navigation and fishing features designed for serious boaters. Equipped with a powerful 6-core processor, this device ensures faster chart rendering, quick startup times, and smooth networking and video performance. Its rugged HydroTough IPS touchscreen display, with high brightness for all-day visibility, provides a clear interface for easy navigation and fishfinding. Built to withstand all weather conditions, the Axiom 2 is backed by a 3-year warranty, making it a durable choice for sailors, anglers, cruisers, and motor-yacht owners alike. The device's intuitive LightHouse OS offers access to over 30 apps, enhancing functionality and user experience while maintaining ease of use. High-speed RayNet Gigabit Ethernet allows seamless integration with radar, cameras, sonar, and other accessories, enabling comprehensive vessel monitoring and control. With 64 GByte of onboard storage, users can store charts, videos, and other data efficiently. The broad chart compatibility includes LightHouse Charts Gen 2, Navionics, and C-MAP, ensuring versatility for different navigation needs. The built-in high-performance GPS/GNSS receiver provides fast 10 Hz position updates for precise navigation. Connectivity options include WiFi, Bluetooth, and NMEA 2000, allowing for integration with various marine systems. The device supports smart vessel monitoring, engine integration, NMEA 2000, and digital switching, providing comprehensive control at your fingertips. The 7-inch model's compact dimensions and high-resolution display make it an ideal addition for boaters seeking reliable, feature-rich navigation and fishfinding capabilities on the water.

Features:

• Rugged all-weather, marine-ready design backed by a 3-year warranty

• 6-core processor for faster chart rendering and smoother performance

• 7-inch HydroTough IPS touchscreen display with high brightness (up to 1,800 nits)

• Powered by LightHouse OS with access to over 30 apps

• RayNet Gigabit Ethernet for high-speed accessory integration

• 64 GByte onboard storage for apps, charts, and videos

• Broad chart compatibility including LightHouse Charts Gen 2, Navionics, and C-MAP

• Built-in GPS/GNSS with 10 Hz position updates for accurate navigation

• Smart vessel monitoring with engine integration, NMEA 2000, and digital switching support

• Multiple connectivity options including WiFi, Bluetooth, and Ethernet
