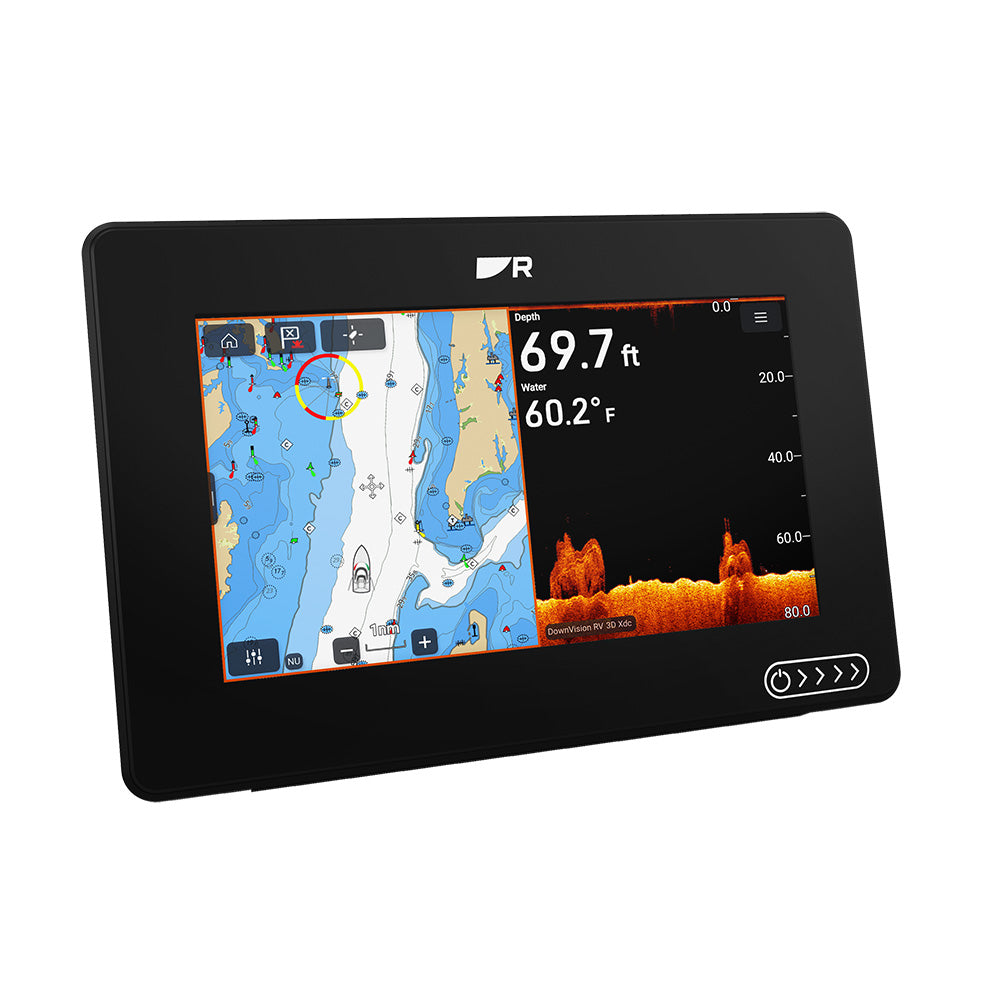

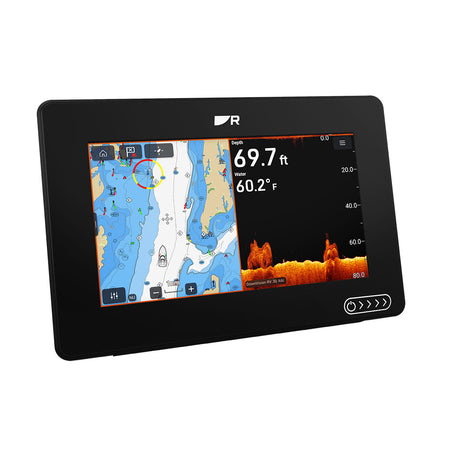

Raymarine Axiom 2 RV 7-Inch Chartplotter and Fishfinder with RealVision 3D Sonar and Lighthouse North America Charts - E70721-00-102

Axiom 2 RV 7 Chartplotter/Fishfinder with RealVision 3D Sonar Lighthouse North America Chart - No Transducer

Axiom 2 is the next generation of the award-winning Raymarine Axiom chartplotter product line. Featuring a powerful 6-core processor, rugged HydroTough displays, and expanded app and engine integration, Axiom 2 delivers a faster, more intuitive, and more responsive navigation experience for leisure boaters of all kinds. Designed for sailors, anglers, cruisers, and motor-yacht owners, Axiom 2 combines next-level performance with Raymarines signature durability and ease of use.

Features:

• Rugged all-weather, marine-ready design backed by a 3-year warranty.
• 6-core processor delivers faster chart rendering, quicker startups, and smoother networking and video performance.
• 7, 9, and 12-inch HydroTough IPS touchscreen displays, with high brightness (up to 1,800 nits) for all-day visibility.

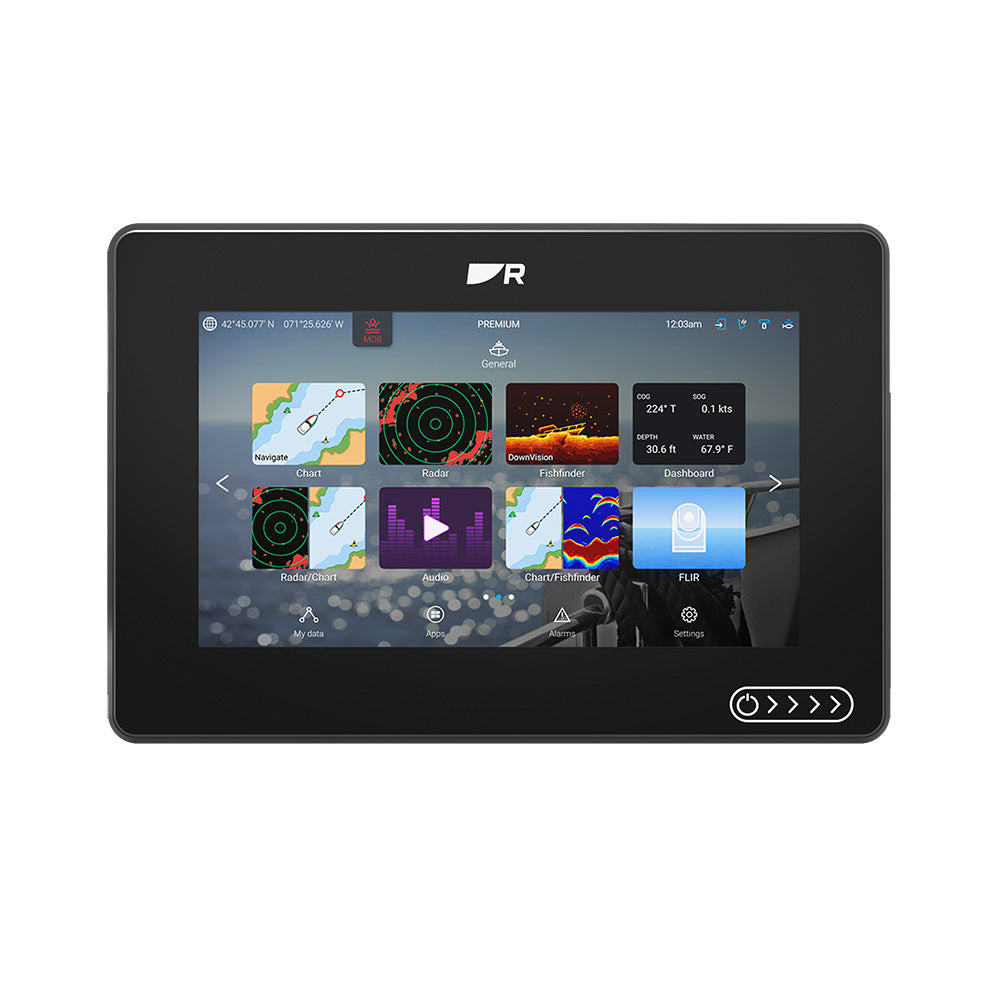

• Powered by LightHouse OS with an intuitive interface and access to over 30 LightHouse apps.
• RayNet Gigabit Ethernet for high-speed integration of radar, cameras, sonar, and accessory devices.
• 64 GByte of onboard storage for apps, charts, video, and user data.
• Broad chart compatibility, including LightHouse Charts Gen 2, Navionics, C-MAP, and more.
• Built-in high-performance GPS / GNSS with fast 10 Hz position updates.
• Smart vessel monitoring and control, including engine integration, NMEA 2000, and digital switching support.

Technical Specifications:

• Dimensions (Trunnion mounted) - 9.86 (W) x 6.4 (H) x 8.58 (D)
• Dimensions (Surface / Flush mounted) - 7.92 (W) x 5.24 (H) x 8.58 (D)
• Voltage - Nominal: 12 V DC / Operating range: 8 to 16 V DC
• Power Consumption (max) - 9.84W
• Inline fuse / thermal breaker rating - 7A
• Size Type - 7 (diagonal), IPS
• Resolution - WSVGA 1024 x 600
• Brightness/luminance - 1500 bits / 1500 cd/m
• Protective Coating - HydroTough (Oleophobic)
• Transducer - 1x 25-pin RealVision connector
• NMEA 2000 / DeviceNet - 1x DeviceNet male connector (on power cable) (LEN rating: 1)
• Network - Wired: 1x RayNet (10 / 100 / 1000 Mbit/sec Ethernet), WiFi: 1x 802.11 b / g / n, Bluetooth: v4.0
• GNSS - Internal GNSS receiver: GPS / GLONASS / BeiDou (incl. SBAS) (Cold start: <2 minutes) (10 Hz refresh rate)
• Internal Storage - 64 GByte (Solid State)
• External MicroSD storage - 1x MicroSDXC card slot
• Sonar Channels (Output power / Responsive Frequency Range) - RealVision 3D: (70 W / 350 kHz 5%), SideVision: (70 W / 350 kHz 5%), DownVision: (35 W / 350 kHz 5%), CHIRP High: (100 W / 200 kHz 5%)

The Raymarine Axiom 2 RV 7-Inch Chartplotter and Fishfinder offers professional-grade navigation and fishfinding capabilities designed for leisure boaters, anglers, and cruisers. Featuring a rugged HydroTough IPS touchscreen display with high brightness, this unit ensures excellent visibility even in bright sunlight. Powered by a fast 6-core processor, the Axiom 2 provides faster map rendering, smoother networking, and quicker startup times, enhancing your overall boating experience. Its integrated LightHouse OS offers an intuitive interface with access to over 30 LightHouse apps, enabling easy customization and control of your vessel's systems.
Constructed for durability, the Raymarine Axiom 2 is marine-ready with a 3-year warranty, making it suitable for all-weather conditions. The device includes a built-in high-performance GPS/GNSS receiver with 10 Hz update rate for precise positioning. Its broad chart compatibility supports LightHouse Charts Gen 2, Navionics, C-MAP, and more, ensuring comprehensive mapping options. The unit features RayNet Gigabit Ethernet for high-speed connection to radar, cameras, sonar, and other accessories, facilitating seamless integration. Additionally, onboard 64 GByte of storage accommodates apps, maps, videos, and user data, providing ample space for customization.
Designed with versatility in mind, this chartplotter supports NMEA 2000 and digital switching, allowing for smart vessel monitoring and engine integration. The 7-inch HydroTough IPS touchscreen boasts a resolution of 1024 x 600 pixels and a brightness level of 1500 nits, facilitating all-day visibility. Its robust construction, combined with advanced sonar capabilities like RealVision 3D, SideVision, DownVision, and CHIRP High, makes this device ideal for serious anglers and navigation enthusiasts. Whether surface, flush, or trunnion mounted, the Raymarine Axiom 2 RV 7-Inch Chartplotter and Fishfinder is a reliable, high-performance addition to any vessel.
Note: This package includes the chartplotter with RealVision 3D Sonar and Lighthouse North America Chart, but does not include a transducer.

Features:

• All-weather marine-grade design backed by a 3-year warranty

• Powerful 6-core processor for faster performance and responsiveness

• 7-inch HydroTough IPS touchscreen with high brightness for daytime visibility

• Operates on Raymarine's intuitive LightHouse OS with access to numerous apps

• Gigabit Ethernet support for high-speed device integration

• 64 GByte onboard storage for apps, charts, and media

• Compatible with LightHouse Charts Gen 2, Navionics, C-MAP, and more

• Built-in GPS / GNSS with 10 Hz update rate for precise positioning

• Supports NMEA 2000 and digital vessel monitoring systems

• Advanced sonar capabilities including RealVision 3D Sonar, SideVision, DownVision, and CHIRP High
