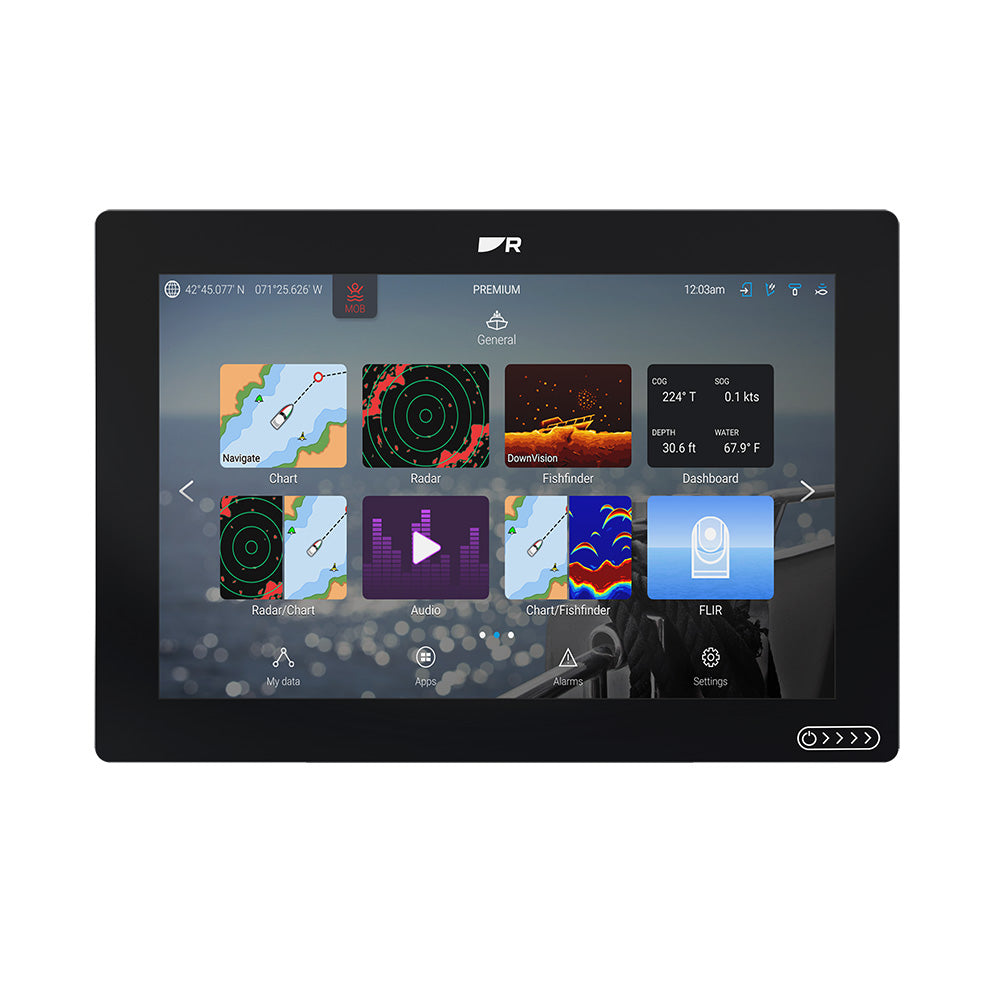

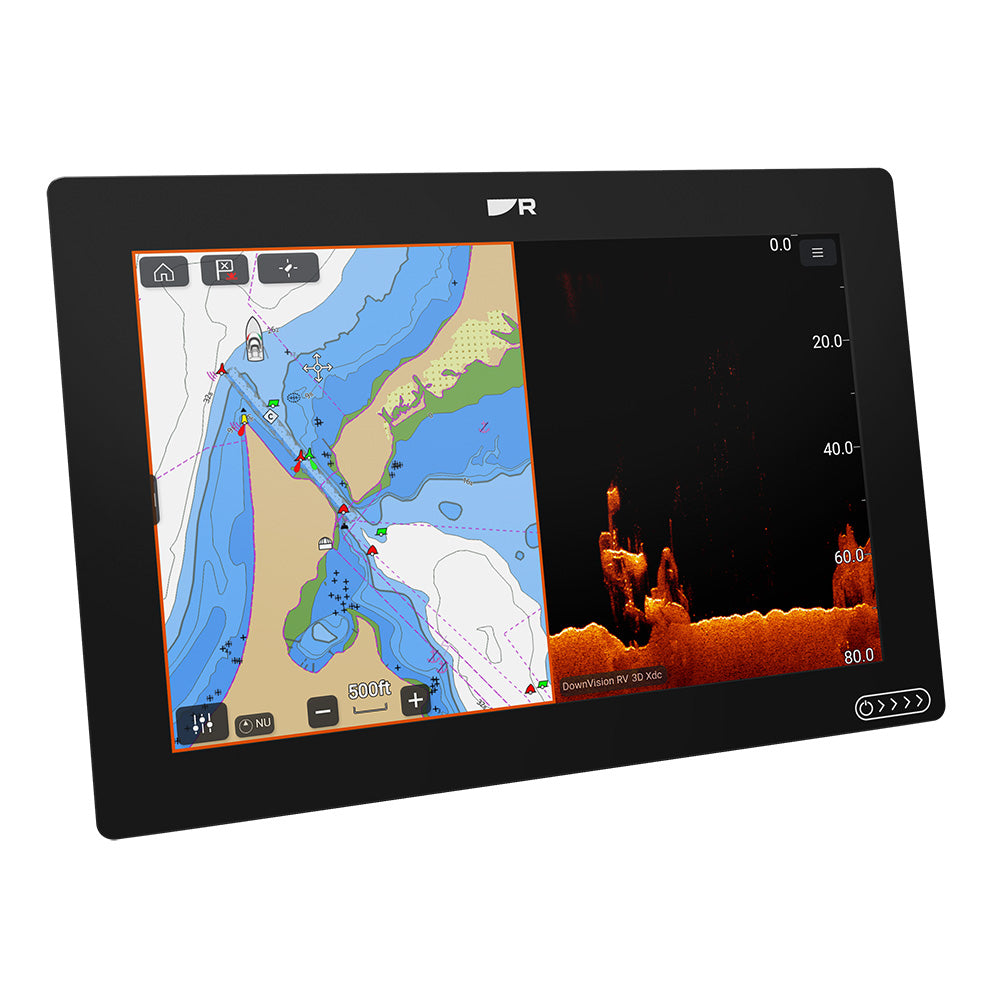

Raymarine Axiom 2 RV 12-inch Chartplotter and Fishfinder with RealVision 3D Sonar - No Transducer - E70725

Axiom 2 RV 12 Chartplotter/Fishfinder with RealVision 3D Sonar - No Transducer

Axiom 2 is the next generation of the award-winning Raymarine Axiom chartplotter product line. Featuring a powerful 6-core processor, rugged HydroTough displays, and expanded app and engine integration, Axiom 2 delivers a faster, more intuitive, and more responsive navigation experience for leisure boaters of all kinds. Designed for sailors, anglers, cruisers, and motor-yacht owners, Axiom 2 combines next-level performance with Raymarines signature durability and ease of use.

Features:

• Rugged all-weather, marine-ready design backed by a 3-year warranty.
• 6-core processor delivers faster chart rendering, quicker startups, and smoother networking and video performance.
• 7, 9, and 12-inch HydroTough IPS touchscreen displays, with high brightness (up to 1,800 nits) for all-day visibility.
• Powered by LightHouse OS with an intuitive interface and access to over 30 LightHouse apps.
• RayNet Gigabit Ethernet for high-speed integration of radar, cameras, sonar, and accessory devices.
• 64 GByte of onboard storage for apps, charts, video, and user data.
• Broad chart compatibility, including LightHouse Charts Gen 2, Navionics, C-MAP, and more.
• Built-in high-performance GPS / GNSS with fast 10 Hz position updates.
• Smart vessel monitoring and control, including engine integration, NMEA 2000, and digital switching support.

Technical Specifications:

• Dimensions (Trunnion mounted) - 12.36 (W) x 8.93 (H) x 7.01 (D)
• Dimensions (Surface / Flush mounted) - 12.36 (W) x 8.54 (H) x 7.01 (D)
• Voltage - Nominal: 12 V DC / Operating range: 8 to 16 V DC
• Power Consumption (max) - 18.96W
• Inline fuse / thermal breaker rating - 7A
• Size Type - 12.1 (diagonal), IPS
• Resolution - WXGA 1280 x 800
• Brightness/luminance - 1800 bits / 1800 cd/m
• Protective Coating - HydroTough (Oleophobic)
• Transducer - 1x 25-pin RealVision connector
• NMEA 2000 / DeviceNet - 1x DeviceNet male connector (on power cable) (LEN rating: 1)
• Network - Wired: 1x RayNet (10 / 100 / 1000 Mbit/sec Ethernet), WiFi: 1x 802.11 b / g / n, Bluetooth: v4.0
• GNSS - Internal GNSS receiver: GPS / GLONASS / BeiDou (incl. SBAS) (Cold start: <2 minutes) (10 Hz refresh rate)
• Internal Storage - 64 GByte (Solid State)
• External MicroSD storage - 1x MicroSDXC card slot
• Sonar Channels (Output power / Responsive Frequency Range) - RealVision 3D: (70 W / 350 kHz 5%), SideVision: (70 W / 350 kHz 5%), DownVision: (35 W / 350 kHz 5%), CHIRP High: (100 W / 200 kHz 5%)

The Raymarine Axiom 2 RV 12-inch Chartplotter and Fishfinder is designed to elevate your navigation and fishing experience with advanced features and a rugged build. Equipped with a high-bright IPS touchscreen display up to 1,800 nits, this device offers excellent visibility in all lighting conditions, making it suitable for day and night use on any marine vessel. The powerful 6-core processor enables faster chart rendering, quicker startups, and seamless networking, providing a more responsive interface for users who demand precision and efficiency. Built for durability, the Axiom 2 features HydroTough coating and an all-weather marine-ready design backed by a 3-year warranty, ensuring reliable performance in harsh environments. It supports broad chart compatibility including LightHouse Charts Gen 2, Navionics, and C-MAP, giving you versatile options for navigation and planning.

Features:

• All-weather marine-ready design with HydroTough coating and a 3-year warranty

• Powerful 6-core processor for faster chart rendering and smooth networking

• High-brightness 12-inch IPS touchscreen display for all-day visibility

• Powered by LightHouse OS with access to over 30 apps

• RayNet Gigabit Ethernet for high-speed device integration

• 64 GByte onboard SSD storage for charts, videos, and data

• Broad chart compatibility including LightHouse Charts Gen 2, Navionics, and C-MAP

• Built-in high-performance GPS/GNSS with 10 Hz updates

• Advanced sonar with RealVision 3D, SideVision, DownVision, and Chirp High channels

• Supports NMEA 2000, DeviceNet, WiFi, and Bluetooth connectivity

• Multiple transducer and network connections for versatile installation

• Rugged, waterproof design with oleophobic HydroTough coating

• Operates within a wide voltage range for seamless marine integration
