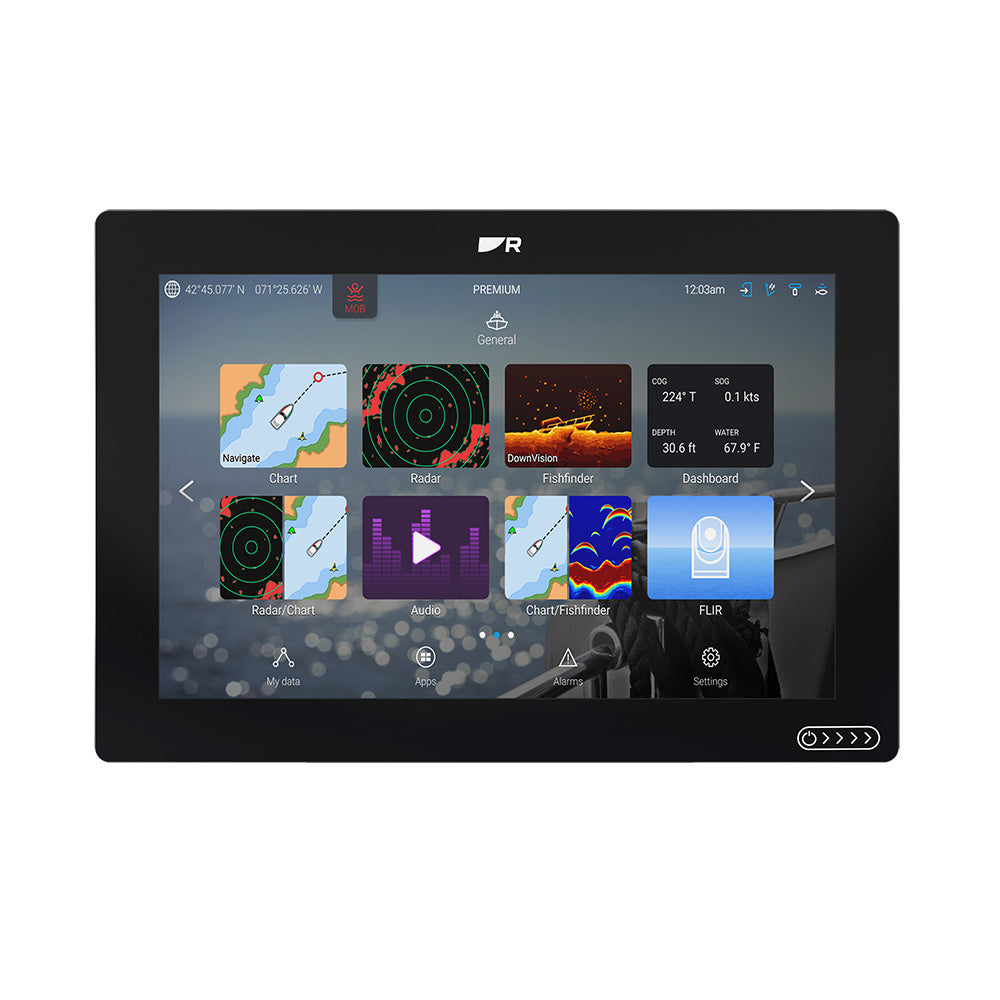

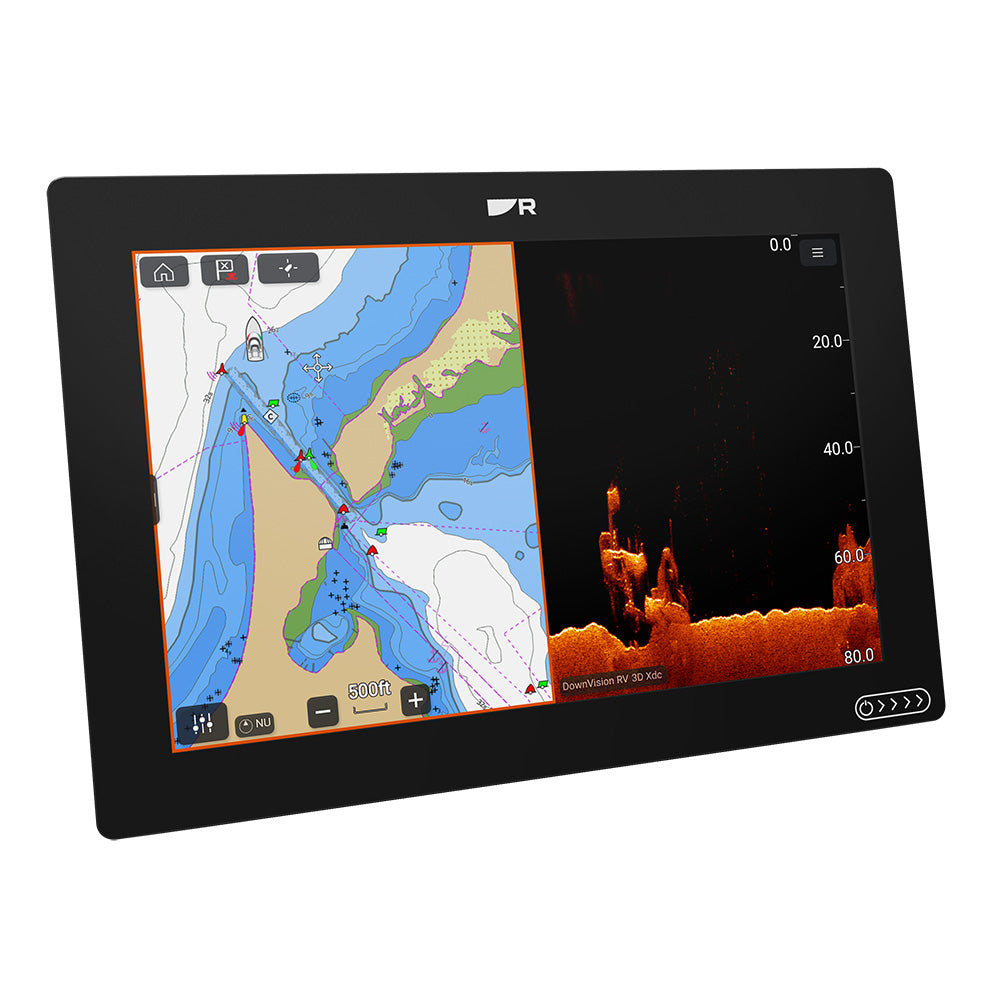

Raymarine Axiom 2 RV 12-inch Chartplotter and Fishfinder with RealVision 3D Sonar and Lighthouse North America Charts - E70725-03-102

Axiom 2 RV 12 Chartplotter/Fishfinder with RealVision 3D Sonar, Lighthouse North America Chart RV-100 Transducer

Axiom 2 is the next generation of the award-winning Raymarine Axiom chartplotter product line. Featuring a powerful 6-core processor, rugged HydroTough displays, and expanded app and engine integration, Axiom 2 delivers a faster, more intuitive, and more responsive navigation experience for leisure boaters of all kinds. Designed for sailors, anglers, cruisers, and motor-yacht owners, Axiom 2 combines next-level performance with Raymarines signature durability and ease of use.

Features:

• Rugged all-weather, marine-ready design backed by a 3-year warranty.
• 6-core processor delivers faster chart rendering, quicker startups, and smoother networking and video performance.
• 7, 9, and 12-inch HydroTough IPS touchscreen displays, with high brightness (up to 1,800 nits) for all-day visibility.
• Powered by LightHouse OS with an intuitive interface and access to over 30 LightHouse apps.
• RayNet Gigabit Ethernet for high-speed integration of radar, cameras, sonar, and accessory devices.
• 64 GByte of onboard storage for apps, charts, video, and user data.
• Broad chart compatibility, including LightHouse Charts Gen 2, Navionics, C-MAP, and more.
• Built-in high-performance GPS / GNSS with fast 10 Hz position updates.
• Smart vessel monitoring and control, including engine integration, NMEA 2000, and digital switching support.

Technical Specifications:

• Dimensions (Trunnion mounted) - 12.36 (W) x 8.93 (H) x 7.01 (D)
• Dimensions (Surface / Flush mounted) - 12.36 (W) x 8.54 (H) x 7.01 (D)
• Voltage - Nominal: 12 V DC / Operating range: 8 to 16 V DC
• Power Consumption (max) - 18.96W
• Inline fuse / thermal breaker rating - 7A
• Size Type - 12.1 (diagonal), IPS
• Resolution - WXGA 1280 x 800
• Brightness/luminance - 1800 bits / 1800 cd/m
• Protective Coating - HydroTough (Oleophobic)
• Transducer - 1x 25-pin RealVision connector
• NMEA 2000 / DeviceNet - 1x DeviceNet male connector (on power cable) (LEN rating: 1)
• Network - Wired: 1x RayNet (10 / 100 / 1000 Mbit/sec Ethernet), WiFi: 1x 802.11 b / g / n, Bluetooth: v4.0
• GNSS - Internal GNSS receiver: GPS / GLONASS / BeiDou (incl. SBAS) (Cold start: <2 minutes) (10 Hz refresh rate)
• Internal Storage - 64 GByte (Solid State)
• External MicroSD storage - 1x MicroSDXC card slot
• Sonar Channels (Output power / Responsive Frequency Range) - RealVision 3D: (70 W / 350 kHz 5%), SideVision: (70 W / 350 kHz 5%), DownVision: (35 W / 350 kHz 5%), CHIRP High: (100 W / 200 kHz 5%)

The Raymarine Axiom 2 RV 12-inch chartplotter and fishfinder combines advanced navigation technology with high-resolution imaging to enhance your marine experience. Featuring a robust all-weather design backed by a 3-year warranty, this device is built to withstand harsh marine environments. Its large 12-inch HydroTough IPS touchscreen display offers high brightness (up to 1,800 nits) for clear visibility in bright sunlight, ensuring you can operate it effectively during all times of the day. Powered by Raymarine's LightHouse OS, the Axiom 2 provides an intuitive interface and access to over 30 LightHouse apps, simplifying navigation and fishfinding tasks for boaters, anglers, cruisers, and yachters alike.

Features:

• Rugged all-weather design: Marine-ready construction with a 3-year warranty ensures durability in harsh marine conditions.

• Powerful processing: 6-core processor delivers faster chart rendering, quicker startup times, and smooth networking and video performance.

• High-brightness touchscreen: Available in 7, 9, and 12-inch HydroTough IPS displays with up to 1,800 nits brightness for all-day visibility.

• Advanced sonar capabilities: Includes RealVision 3D sonar, SideVision, DownVision, and CHIRP High channels for detailed underwater imaging.

• High-speed connectivity: RayNet Gigabit Ethernet, WiFi 802.11 b/g/n, and Bluetooth v4.0 enable seamless integration with radar, cameras, sonar, and accessories.

• Storage capacity: 64 GB onboard solid-state storage plus a MicroSDXC card slot for additional data, charts, and videos.

• Navigation accuracy: Built-in high-performance GPS/GNSS with 10 Hz update rate provides precise position tracking and fast cold start times.

• Versatile chart compatibility: Supports Lighthouse Charts Gen 2, Navionics, C-MAP, and other popular chart formats.

• Vessel monitoring: Supports engine integration, NMEA 2000, and digital switching for comprehensive vessel control.

• Transducer: Includes RV-100 transducer with RealVision 3D sonar for detailed underwater imaging and fish finding.
