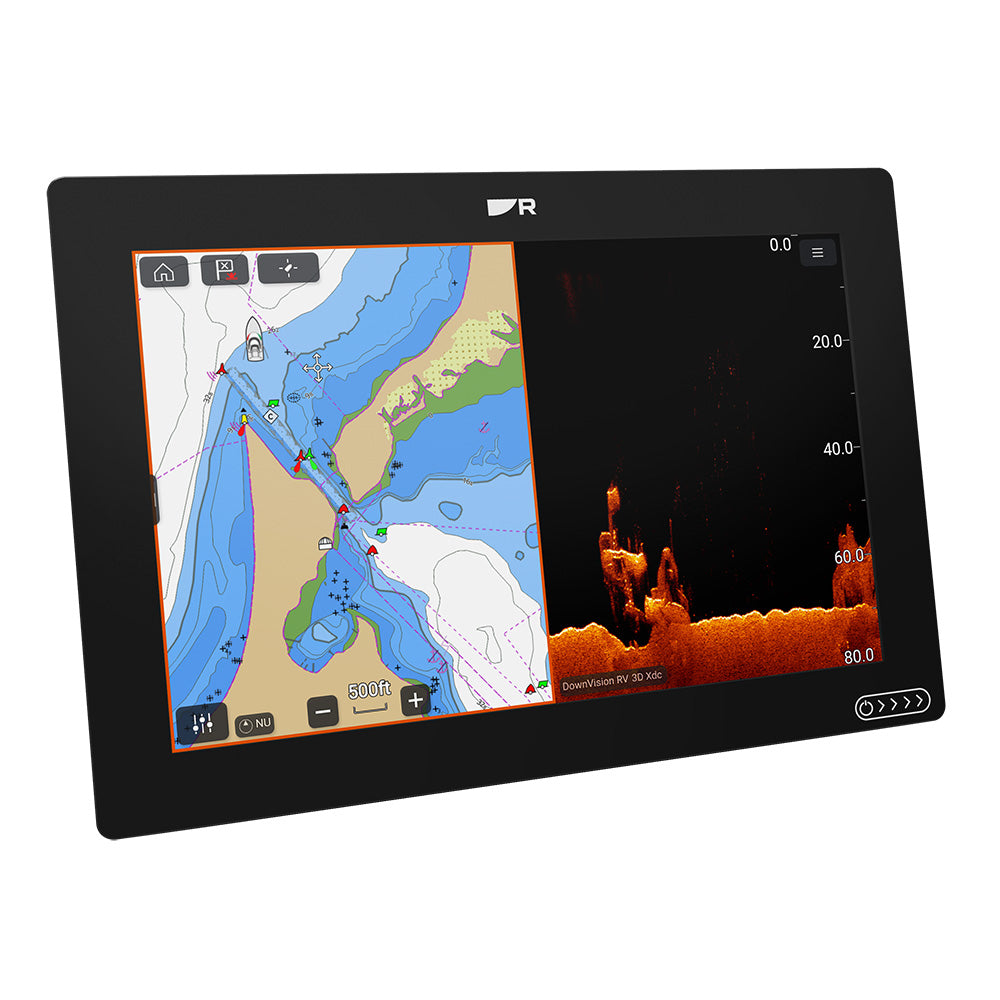

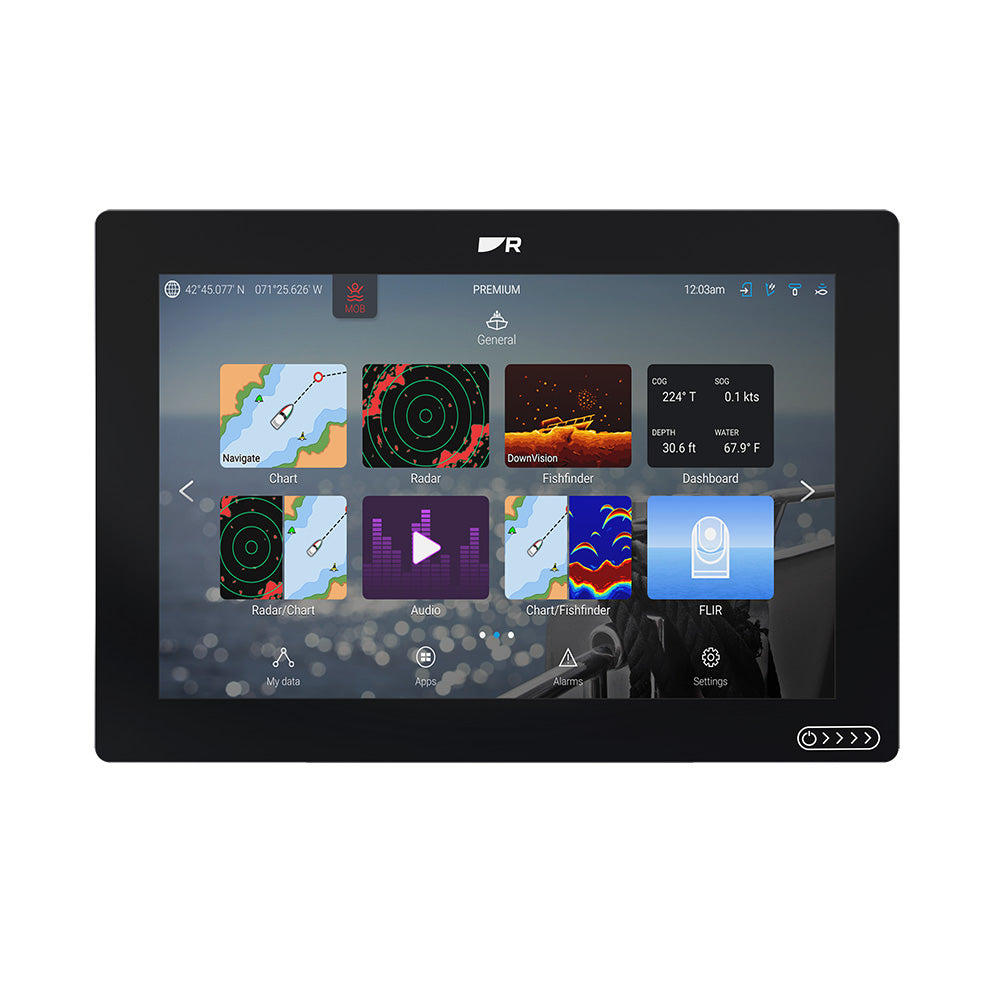

Raymarine Axiom 2 RV 12-Inch Chartplotter and Fishfinder with RealVision 3D Sonar and Lighthouse North America Chart – No Transducer - E70725-00-102

Axiom 2 RV 12 Chartplotter/Fishfinder with RealVision 3D Sonar Lighthouse North America Chart - No Transducer

Axiom 2 is the next generation of the award-winning Raymarine Axiom chartplotter product line. Featuring a powerful 6-core processor, rugged HydroTough displays, and expanded app and engine integration, Axiom 2 delivers a faster, more intuitive, and more responsive navigation experience for leisure boaters of all kinds. Designed for sailors, anglers, cruisers, and motor-yacht owners, Axiom 2 combines next-level performance with Raymarines signature durability and ease of use.

Features:

• Rugged all-weather, marine-ready design backed by a 3-year warranty.
• 6-core processor delivers faster chart rendering, quicker startups, and smoother networking and video performance.
• 7, 9, and 12-inch HydroTough IPS touchscreen displays, with high brightness (up to 1,800 nits) for all-day visibility.
• Powered by LightHouse OS with an intuitive interface and access to over 30 LightHouse apps.
• RayNet Gigabit Ethernet for high-speed integration of radar, cameras, sonar, and accessory devices.
• 64 GByte of onboard storage for apps, charts, video, and user data.
• Broad chart compatibility, including LightHouse Charts Gen 2, Navionics, C-MAP, and more.
• Built-in high-performance GPS / GNSS with fast 10 Hz position updates.
• Smart vessel monitoring and control, including engine integration, NMEA 2000, and digital switching support.

Technical Specifications:

• Dimensions (Trunnion mounted) - 12.36 (W) x 8.93 (H) x 7.01 (D)
• Dimensions (Surface / Flush mounted) - 12.36 (W) x 8.54 (H) x 7.01 (D)
• Voltage - Nominal: 12 V DC / Operating range: 8 to 16 V DC
• Power Consumption (max) - 18.96W
• Inline fuse / thermal breaker rating - 7A
• Size Type - 12.1 (diagonal), IPS
• Resolution - WXGA 1280 x 800
• Brightness/luminance - 1800 bits / 1800 cd/m
• Protective Coating - HydroTough (Oleophobic)
• Transducer - 1x 25-pin RealVision connector
• NMEA 2000 / DeviceNet - 1x DeviceNet male connector (on power cable) (LEN rating: 1)
• Network - Wired: 1x RayNet (10 / 100 / 1000 Mbit/sec Ethernet), WiFi: 1x 802.11 b / g / n, Bluetooth: v4.0
• GNSS - Internal GNSS receiver: GPS / GLONASS / BeiDou (incl. SBAS) (Cold start: <2 minutes) (10 Hz refresh rate)
• Internal Storage - 64 GByte (Solid State)
• External MicroSD storage - 1x MicroSDXC card slot
• Sonar Channels (Output power / Responsive Frequency Range) - RealVision 3D: (70 W / 350 kHz 5%), SideVision: (70 W / 350 kHz 5%), DownVision: (35 W / 350 kHz 5%), CHIRP High: (100 W / 200 kHz 5%)

The Raymarine Axiom 2 RV 12-inch chartplotter and fishfinder combines advanced navigation technology with reliable durability, making it an essential instrument for anglers, cruisers, and motor-yacht owners. Equipped with a high-performance 6-core processor, this device ensures faster chart rendering, quick startup times, and smooth operation for all your marine navigation and fishfinding needs. The rugged HydroTough IPS touchscreen display features up to 1,800 nits of brightness, providing excellent visibility even in direct sunlight, while its compact design allows for versatile mounting options suitable for various vessel configurations. Powered by Raymarine's intuitive LightHouse OS, users gain access to over 30 customizable LightHouse apps that enhance navigation, fishfinding, and vessel monitoring capabilities, streamlining marine operations effectively.

The Axiom 2 RV 12-inch features broad compatibility with leading marine charts including LightHouse Charts Gen 2, Navionics, and C-MAP, offering flexible charting options. Its integrated high-precision GPS / GNSS receiver provides rapid 10 Hz position updates, ensuring accurate tracking and navigation. Network connectivity is robust with RayNet Gigabit Ethernet, allowing high-speed integration of radar, cameras, sonar, and other accessories, making it ideal for complex marine setups. Additional features include 64 GByte onboard storage for apps, charts, and videos, along with a MicroSDXC slot for external data expansion. The device offers smart vessel monitoring and control, supporting engine integration, NMEA 2000, and digital switching, enabling comprehensive vessel management from a single interface.

Designed with durability in mind, the Axiom 2 RV 12-inch is built to withstand all weather conditions, backed by a 3-year warranty. Its high-brightness display ensures visibility in all lighting environments, while the HydroTough oleophobic coating provides resistance against water, oil, and fingerprints. The device features multiple connectivity options including WiFi, Bluetooth, and Ethernet, facilitating seamless data sharing and device integration. Its advanced sonar capabilities with RealVision 3D, SideVision, and DownVision channels deliver detailed underwater imaging, making it an excellent choice for serious anglers and boaters seeking precise fishfinding performance. The compact size and versatile mounting options make installation straightforward, providing a professional-grade navigation and fishfinding solution for any marine vessel.

Features:

• All-weather marine-ready design with a 3-year warranty

• Powerful 6-core processor for faster performance and smoother operation

• High-brightness HydroTough IPS touchscreen display, up to 1,800 nits

• Powered by LightHouse OS with access to over 30 apps

• Broad chart compatibility including LightHouse, Navionics, and C-MAP

• Built-in high-performance GPS / GNSS with 10 Hz updates

• RayNet Gigabit Ethernet for high-speed accessory integration

• 64 GByte onboard storage for apps, charts, and videos

• Versatile connectivity: WiFi, Bluetooth, Ethernet

• Advanced sonar with RealVision 3D, SideVision, and DownVision channels

• Supports vessel monitoring, engine integration, NMEA 2000, and digital switching

• Rugged HydroTough display with oleophobic coating for durability
