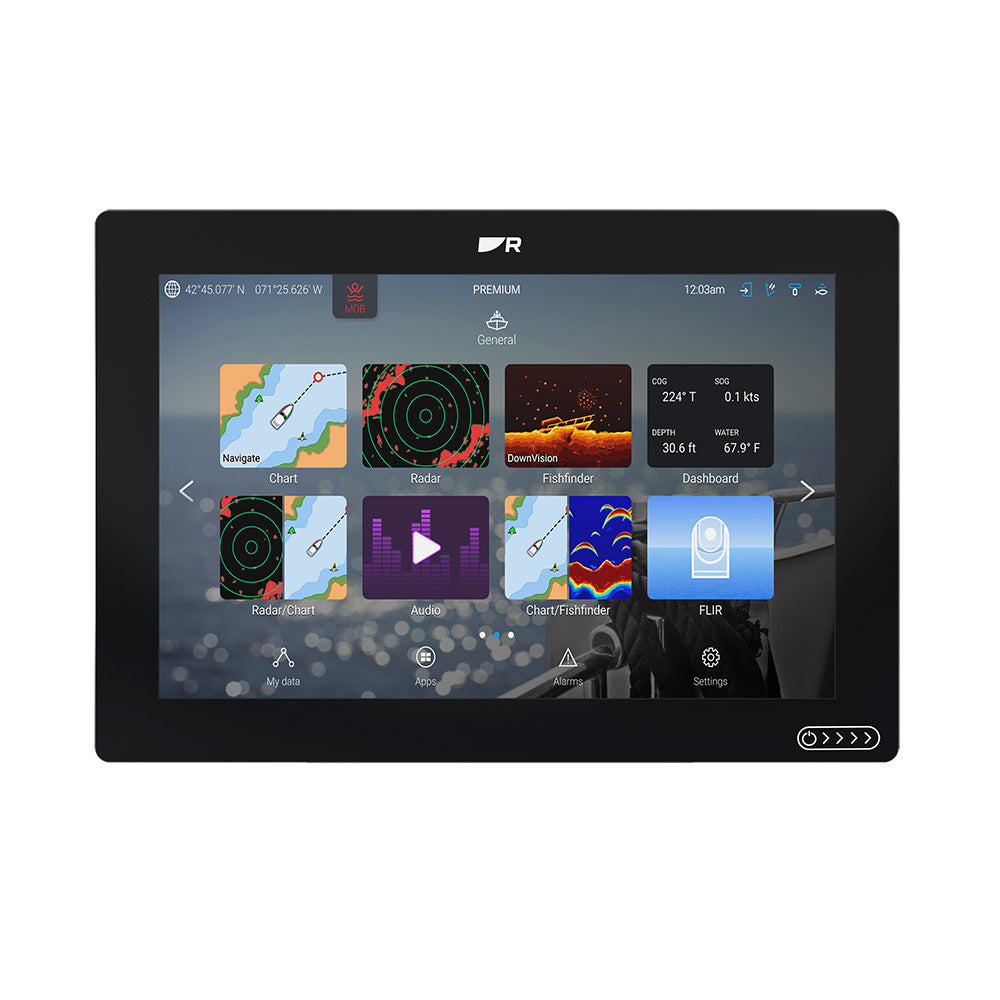

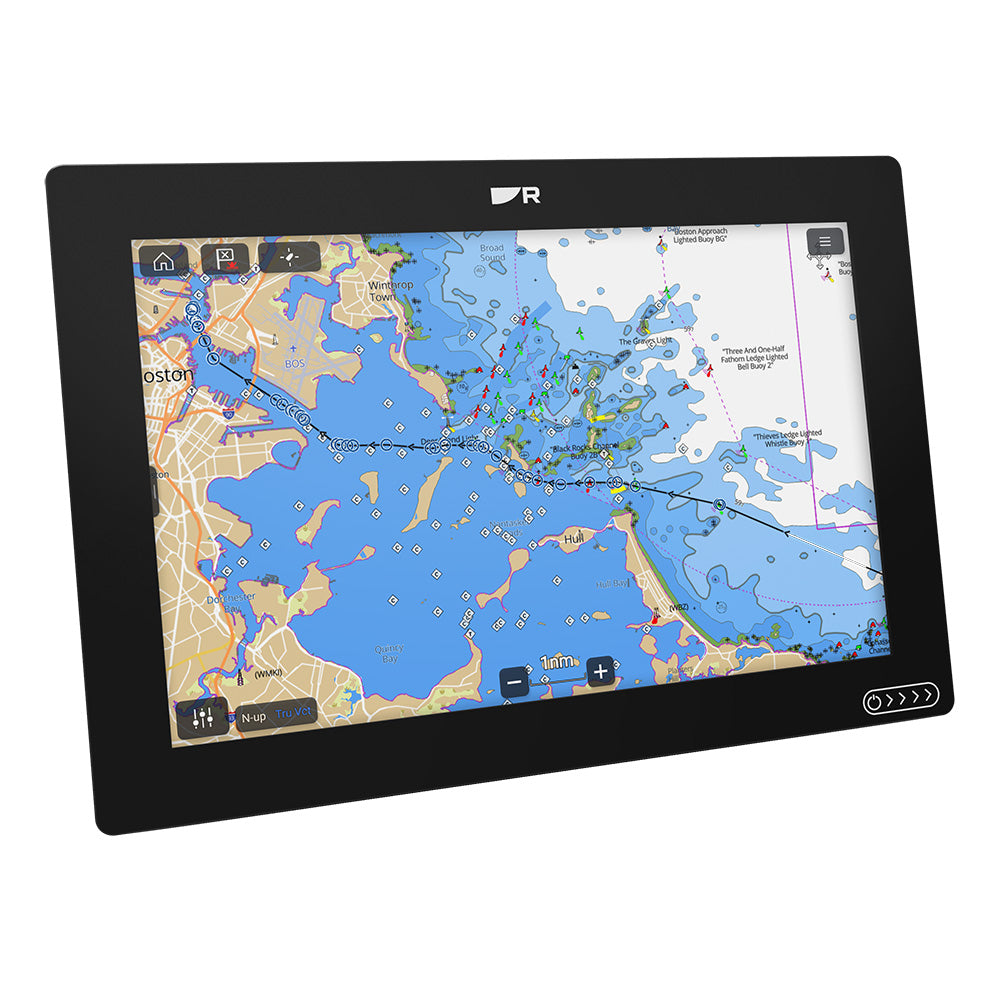

Raymarine Axiom 2 12-Inch Multifunction Display with Lighthouse North America Chart - E70724-00-102

Axiom 2 12 Multifunction Display with Lighthouse North America Chart

Axiom 2 is the next generation of the award-winning Raymarine Axiom chartplotter product line. Featuring a powerful 6-core processor, rugged HydroTough displays, and expanded app and engine integration, Axiom 2 delivers a faster, more intuitive, and more responsive navigation experience for leisure boaters of all kinds. Designed for sailors, anglers, cruisers, and motor-yacht owners, Axiom 2 combines next-level performance with Raymarines signature durability and ease of use.

Features:

• Rugged all-weather, marine-ready design backed by a 3-year warranty.
• 6-core processor delivers faster chart rendering, quicker startups, and smoother networking and video performance.
• 7, 9, and 12-inch HydroTough IPS touchscreen displays, with high brightness (up to 1,800 nits) for all-day visibility.
• Powered by LightHouse OS with an intuitive interface and access to over 30 LightHouse apps.
• RayNet Gigabit Ethernet for high-speed integration of radar, cameras, sonar, and accessory devices.
• 64 GB of onboard storage for apps, charts, video, and user data.
• Broad chart compatibility, including LightHouse Charts Gen 2, Navionics, C-MAP, and more.
• Built-in high-performance GPS / GNSS with fast 10 Hz position updates.
• Smart vessel monitoring and control, including engine integration, NMEA 2000, and digital switching support.

Technical Specifications:

• Dimensions (Trunnion mounted) - 12.36 (W) x 8.93 (H) x 7.01 (D)
• Dimensions (Surface / Flush mounted) - 12.36 (W) x 8.54 (H) x 7.01 (D)
• Voltage - Nominal: 12 V DC / Operating range: 8 to 16 V DC
• Power Consumption (max) - 15.48W
• Inline fuse / thermal breaker rating - 7A
• Size Type - 12.1 (diagonal), IPS
• Resolution - WXGA 1280 x 800
• Brightness/luminance - 1800 bits / 1800 cd/m
• Protective Coating - HydroTough (Oleophobic)
• NMEA 2000 / DeviceNet - 1x DeviceNet male connector (on power cable) (LEN rating: 1)
• Network - Wired: 1x RayNet (10 / 100 / 1000 Mbit/sec Ethernet), WiFi: 1x 802.11 b / g / n, Bluetooth: v4.0
• GNSS - Internal GNSS receiver: GPS / GLONASS / BeiDou (incl. SBAS) (Cold start: <2 minutes) (10 Hz refresh rate)
• Internal Storage - 64 GByte (Solid State)
• External MicroSD storage - 1x MicroSDXC card slot

The Raymarine Axiom 2 12-inch Multifunction Display (Part Number: E70724-00-102) is designed to elevate your navigation experience with next-generation technology tailored for leisure boaters, anglers, sailors, and motor-yacht owners. Featuring a rugged HydroTough IPS touchscreen with high brightness up to 1,800 nits, this display offers all-day visibility in various lighting conditions. Its durable, all-weather marine-ready design ensures reliable performance even in challenging environments, backed by a comprehensive 3-year warranty. The Axiom 2 combines a powerful 6-core processor for faster chart rendering, quicker startup times, and seamless networking and video performance, making it one of the most responsive chartplotters available today. Powered by Raymarine's LightHouse OS, it provides an intuitive interface and access to over 30 LightHouse apps, enabling users to customize their navigation systems easily and efficiently. The display supports broad chart compatibility, including LightHouse Charts Gen 2, Navionics, C-MAP, and more, allowing for versatile charting options to suit different needs and regions. Connectivity is enhanced through RayNet Gigabit Ethernet, facilitating high-speed integration of radar, cameras, sonar, and other accessories, while onboard storage of 64 GB ensures ample space for apps, charts, videos, and user data. The built-in high-performance GNSS receiver provides fast 10 Hz position updates using GPS, GLONASS, BeiDou, and SBAS satellites, ensuring accurate navigation. Smart vessel monitoring features include engine integration, NMEA 2000 support, and digital switching, providing comprehensive control and monitoring capabilities for modern vessels. The display's dimensions are optimized for both surface/flush and trunnion mounts, with a power consumption maxing out at 15.48W, making it efficient for continuous use. With its broad feature set and durable design, the Raymarine Axiom 2 12-inch Multifunction Display is an excellent choice for serious boaters seeking reliable, high-performance navigation technology in a sleek, waterproof package.
