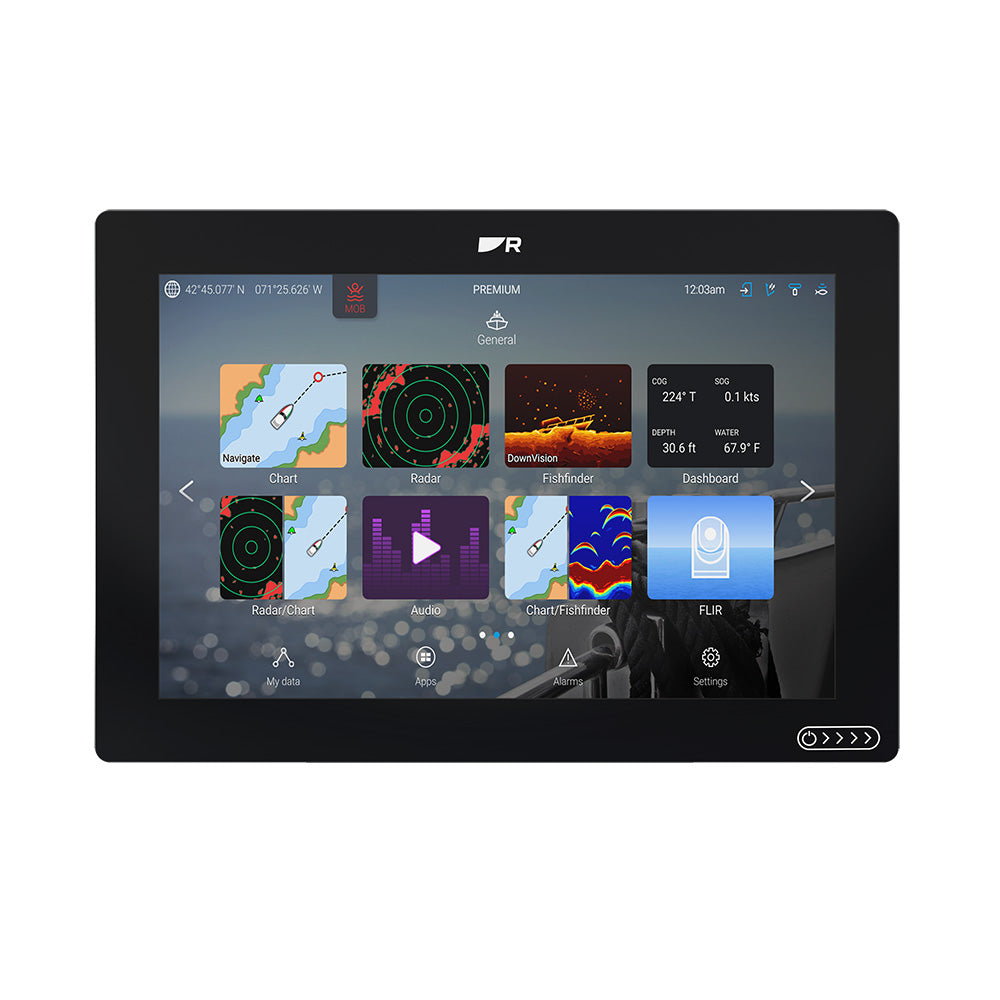

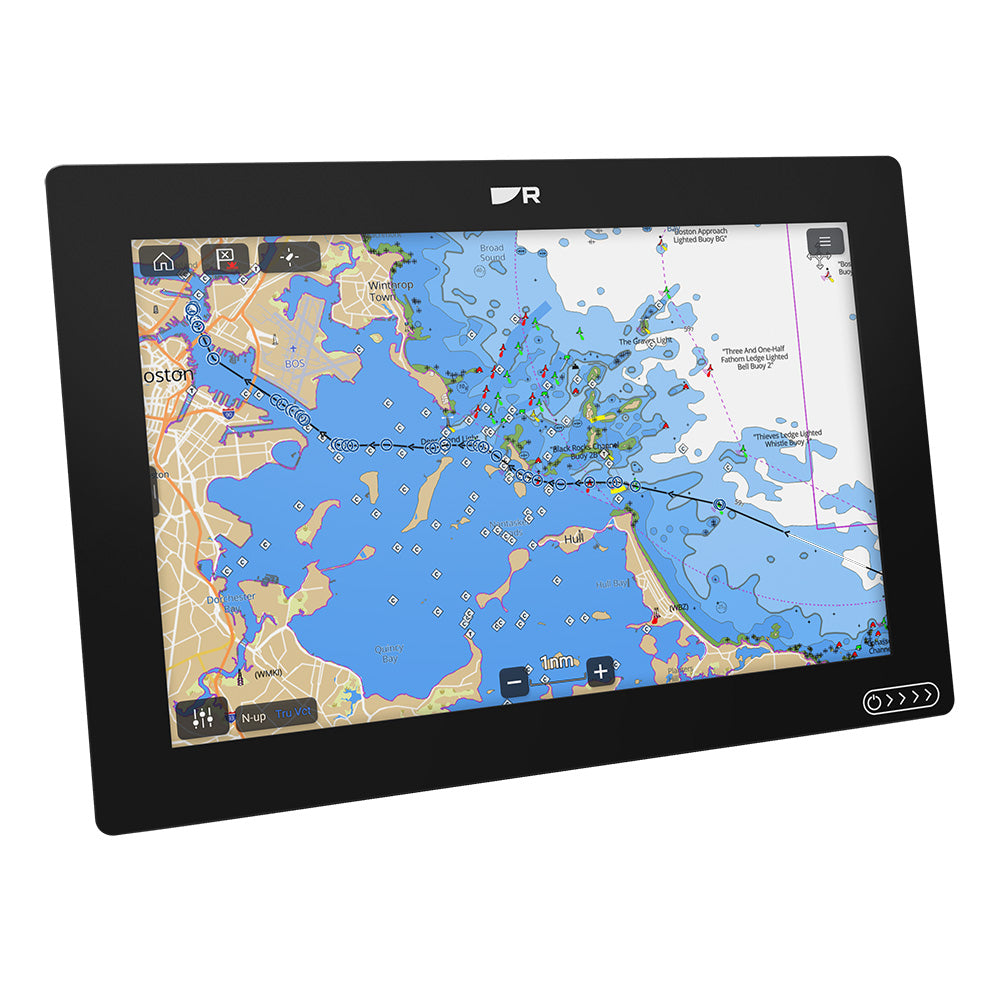

Raymarine Axiom 2 12-Inch Multifunction Display - Marine Chartplotter with Touchscreen & WiFi - E70724

Axiom 2 12 Multifunction Display

Axiom 2 is the next generation of the award-winning Raymarine Axiom chartplotter product line. Featuring a powerful 6-core processor, rugged HydroTough displays, and expanded app and engine integration, Axiom 2 delivers a faster, more intuitive, and more responsive navigation experience for leisure boaters of all kinds. Designed for sailors, anglers, cruisers, and motor-yacht owners, Axiom 2 combines next-level performance with Raymarines signature durability and ease of use.

Features:

• Rugged all-weather, marine-ready design backed by a 3-year warranty.
• 6-core processor delivers faster chart rendering, quicker startups, and smoother networking and video performance.
• 7, 9, and 12-inch HydroTough IPS touchscreen displays, with high brightness (up to 1,800 nits) for all-day visibility.
• Powered by LightHouse OS with an intuitive interface and access to over 30 LightHouse apps.
• RayNet Gigabit Ethernet for high-speed integration of radar, cameras, sonar, and accessory devices.
• 64 GByte of onboard storage for apps, charts, video, and user data.
• Broad chart compatibility, including LightHouse Charts Gen 2, Navionics, C-MAP, and more.
• Built-in high-performance GPS / GNSS with fast 10 Hz position updates.
• Smart vessel monitoring and control, including engine integration, NMEA 2000, and digital switching support.

Technical Specifications:

• Dimensions (Trunnion mounted) - 12.36 (W) x 8.93 (H) x 7.01 (D)
• Dimensions (Surface / Flush mounted) - 12.36 (W) x 8.54 (H) x 7.01 (D)
• Voltage - Nominal: 12 V DC / Operating range: 8 to 16 V DC
• Power Consumption (max) - 15.48W
• Inline fuse / thermal breaker rating - 7A
• Size Type - 12.1 (diagonal), IPS
• Resolution - WXGA 1280 x 800
• Brightness/luminance - 1800 bits / 1800 cd/m
• Protective Coating - HydroTough (Oleophobic)
• NMEA 2000 / DeviceNet - 1x DeviceNet male connector (on power cable) (LEN rating: 1)
• Network - Wired: 1x RayNet (10 / 100 / 1000 Mbit/sec Ethernet), WiFi: 1x 802.11 b / g / n, Bluetooth: v4.0
• GNSS - Internal GNSS receiver: GPS / GLONASS / BeiDou (incl. SBAS) (Cold start: <2 minutes) (10 Hz refresh rate)
• Internal Storage - 64 GByte (Solid State)
• External MicroSD storage - 1x MicroSDXC card slot

The Raymarine Axiom 2 12-inch Multifunction Display offers next-generation navigation technology designed for serious boaters, sailors, anglers, and cruisers. Featuring a rugged HydroTough IPS touchscreen with high brightness (up to 1,800 nits), this display provides excellent visibility in all lighting conditions. Powered by a 6-core processor, the Axiom 2 ensures faster chart rendering, quick startup times, and smooth network performance, making navigation more intuitive and responsive. Its durable all-weather design is backed by a 3-year warranty, providing peace of mind for marine environments.
Equipped with Raymarine's LightHouse OS, the Axiom 2 offers an intuitive interface and access to over 30 LightHouse apps for customization and expanded functionality. The device supports broad chart compatibility, including LightHouse Charts Gen 2, Navionics, and C-MAP, enabling versatile navigation options. Integrated high-performance GPS/GNSS with a 10 Hz update rate ensures precise positioning, while built-in WiFi and Bluetooth connectivity facilitate seamless data sharing and device integration. The RayNet Gigabit Ethernet port allows high-speed connection to radar, cameras, sonar, and other accessories, enhancing your onboard networking.
The 64 GByte onboard storage provides ample space for apps, charts, videos, and user data. The device supports NMEA 2000 and DeviceNet, enabling smart vessel monitoring, engine integration, and digital switching, making it ideal for complex marine systems. Its compact design, whether surface-mounted or trunnion-mounted, fits a variety of installation requirements. With broad compatibility for charts and external MicroSDXC storage, the Raymarine Axiom 2 12-inch display is a powerful, durable, and user-friendly solution for modern marine navigation and vessel management.

Features:

• Rugged all-weather, marine-ready design backed by a 3-year warranty

• 6-core processor delivers faster chart rendering, quicker startups, and smoother networking and video performance

• 7, 9, and 12-inch HydroTough IPS touchscreen displays with high brightness for all-day visibility

• Powered by LightHouse OS with an intuitive interface and access to over 30 LightHouse apps

• RayNet Gigabit Ethernet for high-speed integration of radar, cameras, sonar, and accessories

• 64 GByte onboard storage for apps, charts, videos, and user data

• Broad chart compatibility including LightHouse Charts Gen 2, Navionics, and C-MAP

• Built-in high-performance GPS / GNSS with 10 Hz position updates

• Smart vessel monitoring and control, including engine integration, NMEA 2000, and digital switching support
