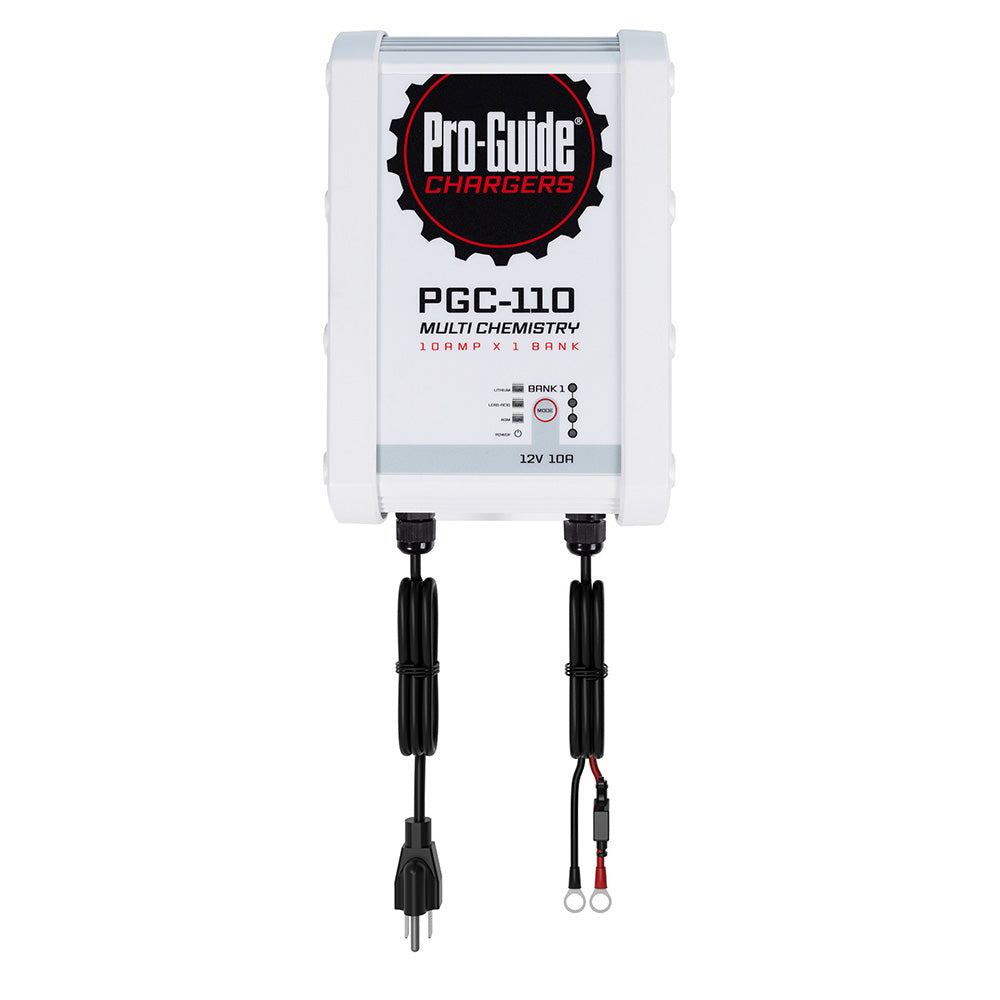

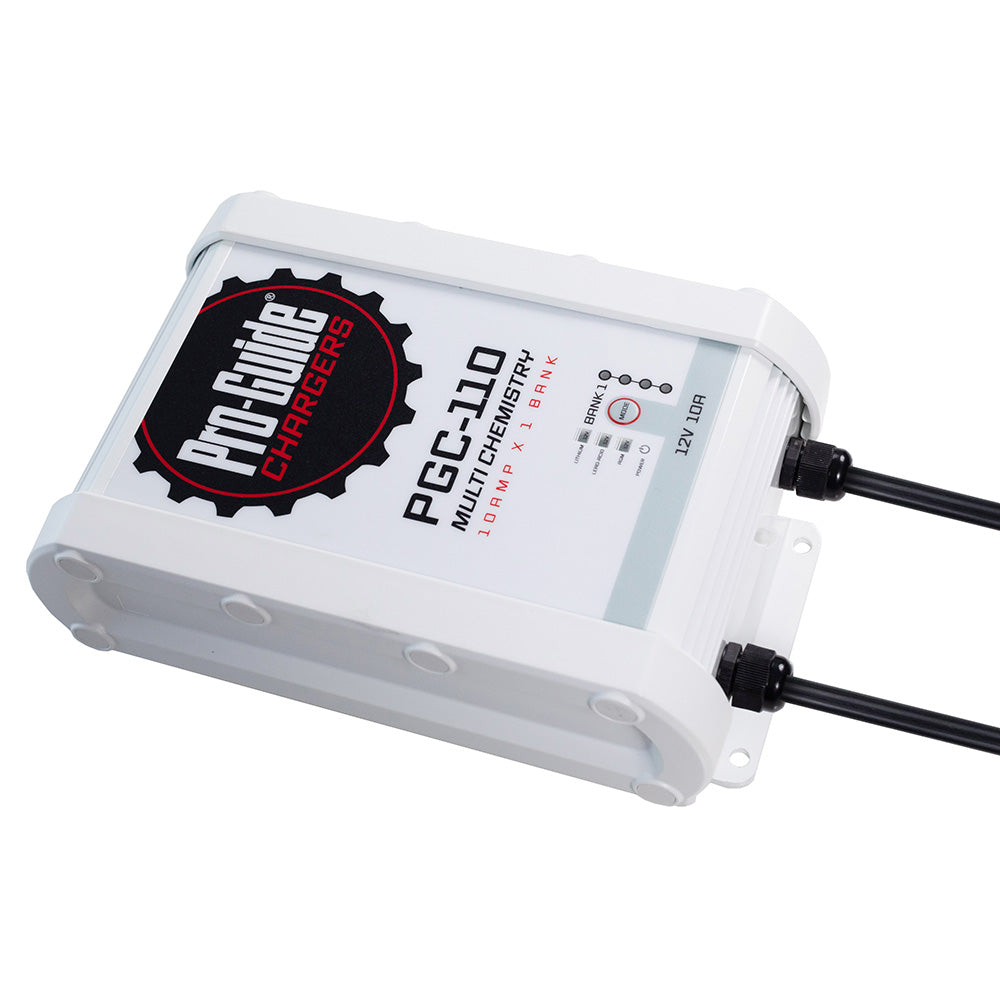

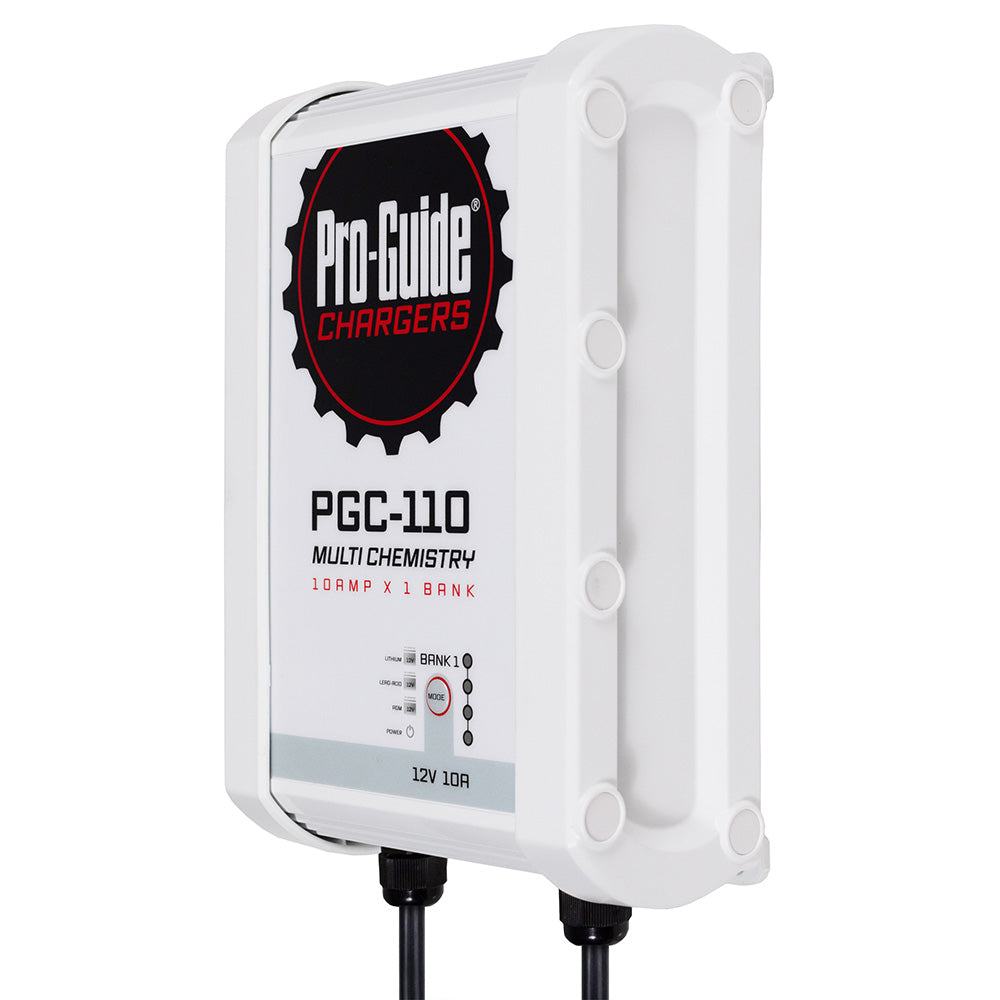

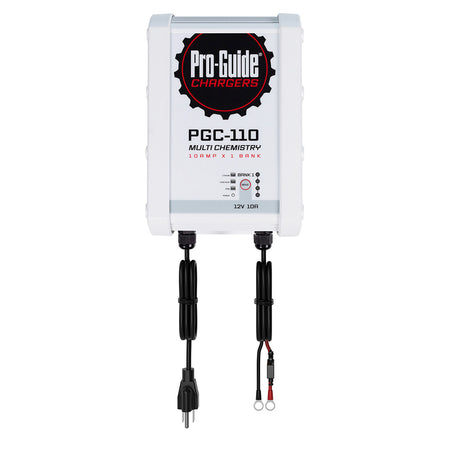

Pro-Guide Batteries 1 Bank On-Board Battery Charger - 12V - 10-Amp - PGC-110

1 Bank On-Board Battery Charger - 12V - 10-Amp

The Pro-Guide GPC-110 is a 12V on-board battery charger for lead-acid, AGM, and lithium batteries.

Select one of three charge profiles.

Activation Mode supplies a short supply of voltage to wake any asleep Lithium Battery, or hold the button for (3-5) seconds to enter a manual Activation Mode.

The PGC Line is designed to stay plugged in year-round. With the Intelligent PGC Algorithm, each PGC Charger checks each batterys state of charge on a specific timeline, ensuring that youll be fully charged for your next adventure.

With over 40 years of experience, Pro-Guide is proud to stand behind this charger with a 2 Year Free and 4 Year Total Warranty.

Protection:

• Output Over-Voltage


• Output Over Current


• Output Short Circuit


• Output Reverse Polarity


• Over Temperature

Input:

• Input Voltage: AC 110-120V


• Frequency: 60Hz


• Input Current: <6A

Specifications:

• Battery Type: Lead Acid/AGM/Lithium


• Output Voltage: DC 12V x 1


• Max Output Voltage: 14.1-14.3 for Lead Acid Battery, 14.3-14.7 for AGM Battery, 14.4-14.7 for Lithium Battery


• Output Current: 10A x 1


• Length: 6.02


• Width: 9.96


• Height: 3.86


• Weight: 9.5 lbs


• IP Rating: 68

The Pro-Guide Batteries PGC-110 is a versatile 12V on-board battery charger designed to maintain and recharge lead-acid, AGM, and lithium batteries efficiently. Built with a user-friendly interface, this charger offers three selectable charging profiles, allowing you to optimize charging based on your battery type. The activation mode can provide a quick voltage boost to awaken sleeping lithium batteries or be manually activated by holding the button for several seconds, ensuring your batteries are always ready for use. Designed for year-round installation, the PGC-110 features an advanced Intelligent PGC Algorithm that periodically checks each battery's state of charge, helping prevent undercharging and extending battery life. With over 40 years of industry experience, Pro-Guide Batteries backs this charger with a comprehensive 2-year free warranty and a total of 4 years of coverage, providing reliable performance and peace of mind. Safety features include protection against output over-voltage, over-current, short circuits, reverse polarity, and overheating, making it suitable for demanding environments. The charger operates on standard AC power, drawing less than 6 amps at 110-120V, 60Hz, and outputs a consistent 12V DC at up to 10 amps. Compact and durable, it measures approximately 6 inches in length, 10 inches in width, and 4 inches in height, weighing around 9.5 pounds. Its IP68 rating ensures resistance to dust and water, making it ideal for vehicle or marine applications. Whether used as a maintenance charger or a primary charging source, the Pro-Guide PGC-110 provides reliable, safe, and efficient battery management for your lead-acid, AGM, or lithium batteries in any environment.

Features:

• Three selectable charge profiles for optimal battery maintenance

• Activation mode to wake or manually activate lithium batteries

• Intelligent PGC Algorithm periodically checks battery charge status

• Designed for year-round installation with durable IP68 rating

• Protection features including over-voltage, over-current, short circuit, reverse polarity, and over-temperature safeguards

• Compatible with lead-acid, AGM, and lithium batteries

• Compact design with approximately 6 inches length and 10 inches width

• Lightweight at around 9.5 pounds for easy installation and handling

• Operates on AC 110-120V, 60Hz, with less than 6A input current

• Backed by a 2-year free warranty and a total of 4 years of coverage
