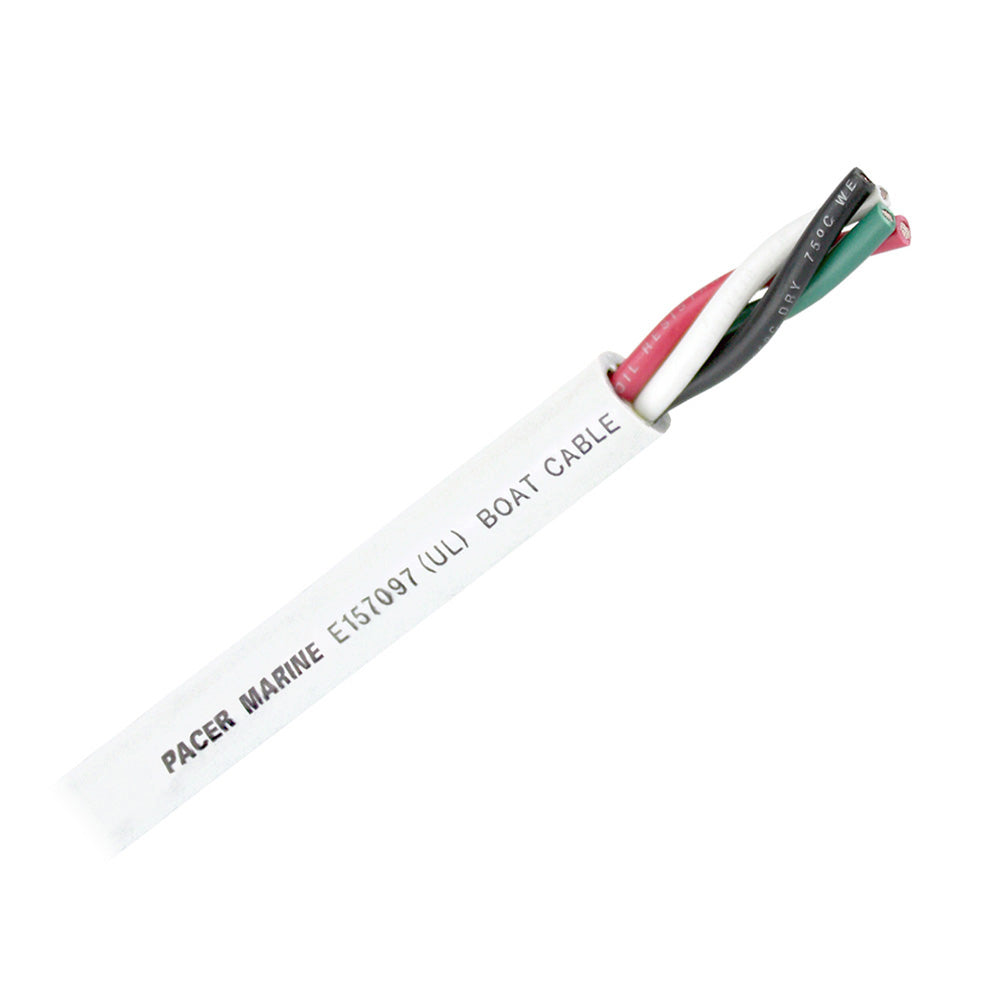

Pacer Group WR8/4-100 Round 4 Conductor Marine Cable - 100 Feet 8/4 AWG with Tinned Copper Conductors

Round 4 Conductor Cable - 100 - 8/4 AWG - Black, Red, Green, White

Round boat cable is a type of marine cable designed to be routed through hulls and tight spaces. That is to say, it is designed with flexibility in mind. The round shape of this multi-conductor marine cable allows it to bend in any direction, making any installation go much easier. You may not realize just how useful it is, but trust us, when working in tight spaces, you will want an extremely flexible cable.

Features:

• 8 AWG round boat cable


• 100 ft. of cable


• No. of Conductors: 4

Specifications:

• Conductor Colors: Black, red, green, white


• Conductor Stranding: 7x24/0.0100


• Jacket Color: White


• Jacket Thickness (inch): 0.080


• Nom. Cable O.D. (inch): 0.830

Characteristics:

• Conductor: Annealed Fine Stranded Tinned Copper ASTM B172 Class K


• Insulation: -20 C to 105 C Flexible, Color Coded PVC


• Temperature Rating: 105 C Dry, 75 C Wet, 60 C Oil


• Voltage Rating: 600 V


• Resistant to: acid, alkali, abrasion, flame, gasoline, oil, and moisture

Applications:

• Pacers round boat cable is excellent for AC and DC internal wiring of boats and recreational vehicles

Compliances:

• UL Standard 1426 (BC-5W2)


• ABYC: E-11.15


• Coast Guard: 33 CFR part 183


• RoHS Compliant

The Pacer Group WR8/4-100 is a high-quality round marine cable designed specifically for demanding boat and recreational vehicle wiring applications. Crafted with flexibility and durability in mind, this 8 AWG cable features four color-coded conductors*black, red, green, and white*making wiring installation straightforward and organized. Its round shape allows for easy routing through tight spaces and hulls, ensuring a secure and efficient electrical setup in marine environments.

Constructed with annealed fine stranded tinned copper conductors, the cable offers excellent conductivity and resistance to corrosion, especially in harsh conditions. The PVC insulation is flexible across a wide temperature range, from -20?C to 105?C, and is resistant to acids, alkali, abrasion, flame, gasoline, oil, and moisture. This resilience makes it ideal for wet and dry environments, providing reliable performance whether submerged or exposed to the elements. The cable's jacket, in a clean white color, features a thickness of 0.080 inches, with an outer diameter of approximately 0.83 inches, ensuring durability without sacrificing flexibility.

Rated for 600 volts, the Pacer WR8/4-100 is suitable for both AC and DC internal wiring on boats and recreational vehicles. Its compliance with industry standards such as UL 1426, ABYC E-11.15, and Coast Guard 33 CFR part 183 underscores its safety and reliability for marine use. RoHS compliance further ensures environmentally friendly manufacturing and disposal.

Whether you*re upgrading your vessel*s electrical system or installing new wiring, this 100-foot roll of Pacer Group's WR8/4-100 cable provides the flexibility, durability, and safety needed for a professional and long-lasting installation. Its easy-to-handle design and superior resistance properties make it an excellent choice for marine electricians and DIY enthusiasts alike, ensuring your electrical systems are both efficient and secure in even the most challenging environments.

Features:
* 8 AWG round marine cable with four color-coded conductors: black, red, green, and white
* Flexible PVC insulation rated from -20?C to 105?C, suitable for wet and dry conditions
* Constructed with annealed fine stranded tinned copper conductors for corrosion resistance and high conductivity
* Rated for 600 volts, ideal for AC and DC internal wiring in boats and recreational vehicles
* Resistant to acids, alkali, abrasion, flame, gasoline, oil, and moisture for enhanced durability in harsh environments
* Includes 100 feet of cable with a jacket thickness of 0.080 inches and an outer diameter of approximately 0.83 inches
* Compliance with UL 1426, ABYC E-11.15, Coast Guard 33 CFR part 183, and RoHS standards for safety and environmental responsibility
