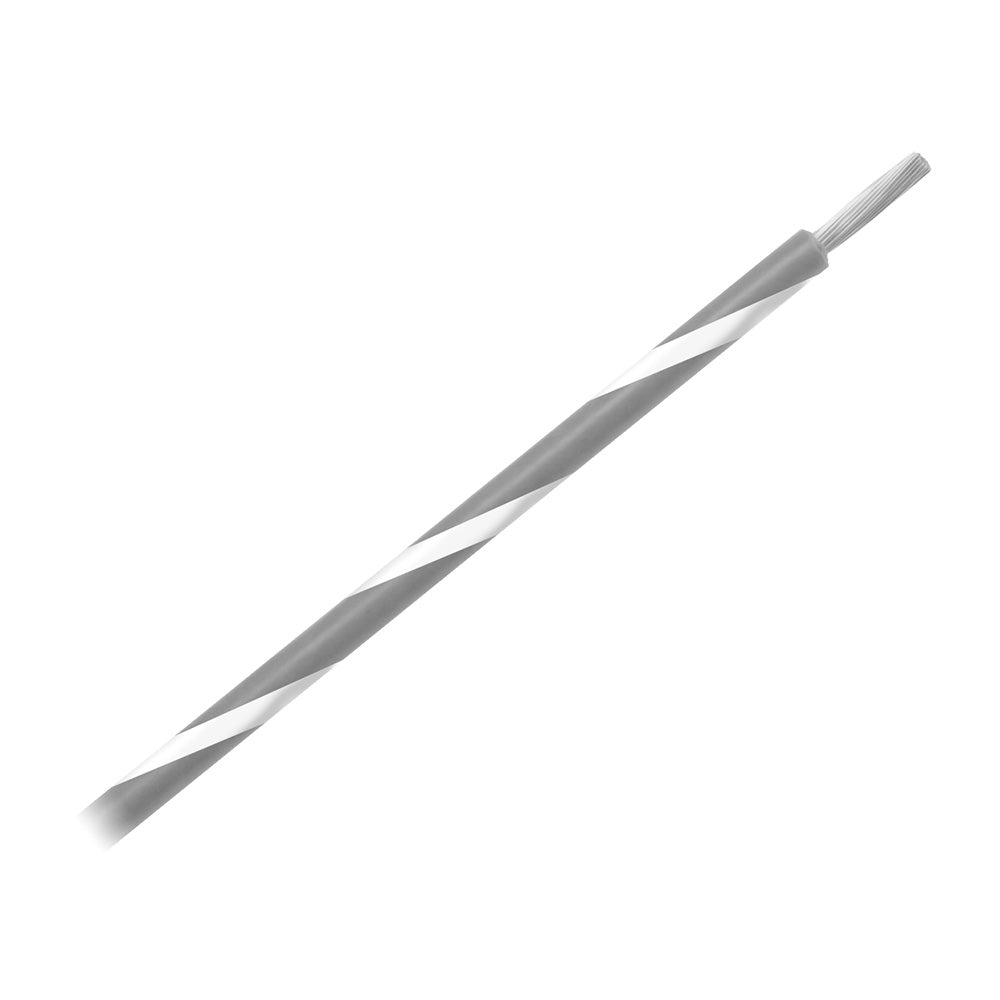

Pacer Group 14 AWG Gauge Striped Marine Wire 500' Spool - Grey with White Stripe - WUL14GY-9-500

14 AWG Gauge Striped Marine Wire 500 Spool - Grey with White Stripe

Striped wire is perfect for situations involving a large number of wires. Using 14 AWG striped marine wire makes the identification process easier, which increases job efficiency. All of Pacers primary wire is constructed in Sarasota, FL, USA, from Type III Class K tinned copper. During the manufacturing process, the copper conductors are jacketed with PVC insulation. This insulation is specifically designed to be durable and flexible. All of Pacers primary striped wire meets the standards and requirements of UL, ABYC, and NMMA. How many possible combinations of 14 AWG striped marine wire does Pacer offer Choice is everything, and Pacer has gone out of the way to offer just that. By offering a variety of options, you are guaranteed to find the combination you are looking for. Pacer offers over 100 possible combinations for 14 AWG striped marine wire. Have a question about striped marine wire Contact a Pacer expert today.

Features:

• Stranded, tinned copper conductors


• Highly flexible color-coded insulation


• Annealed Finely Stranded Tinned Copper ASTM b172 Class K


• Resistant to: Acid, Alkali, Abrasion, Flame, Gasoline, Oil, Moisture

Specifications:

• Insulation: -20 C to 105 C Flexible, Color Coded PVC


• Temperature Rating: 105 C Dry, 75 C Wet, 60 C Oil


• Voltage Rating: 600-V

Applications:

• Point-to-point wiring


• Internal wiring of panels and motors

Compliances:

• UL Standard 1426 (BC-5W2)


• AWM 1015/1230


• AWM 1028/1231


• MTW, CSA: TEW


• ABYC: E-8.14, E-9.14, Coast Guard: 33 CFR part183

The Pacer Group 14 AWG Gauge Striped Marine Wire with Grey and White stripes offers a practical solution for complex wiring projects involving multiple circuits. Constructed from high-quality, Type III Class K tinned copper, this wire ensures excellent conductivity and durability. All Pacer marine wire is manufactured in Sarasota, FL, USA, and features a flexible PVC insulation designed to withstand harsh marine environments. Its color-coded design simplifies identification during installation, reducing errors and increasing efficiency in large wiring setups. This wire meets rigorous standards set by UL, ABYC, and NMMA, making it a reliable choice for marine applications.
Designed for point-to-point wiring, internal panel, and motor wiring, this 14 AWG wire is rated for 600 volts and can operate efficiently across a wide temperature range, from -20?C to 105?C. The highly flexible, stranded construction minimizes fatigue and breakage, while the PVC insulation provides resistance to acids, alkalis, abrasion, flames, gasoline, oil, and moisture. This combination of features makes it suitable for demanding marine environments where reliability and safety are paramount.
Pacer offers over 100 different striped wire configurations, allowing users to select the perfect combination for their specific needs. Whether you require a particular stripe pattern or length, Pacer's extensive options ensure you find an ideal match. All of these features make the Pacer 14 AWG marine wire a versatile and dependable component for boat wiring, panel connections, and motor installations, backed by comprehensive industry compliance and safety standards.

Features:
* Stranded, tinned copper conductors for reliable conductivity
* Highly flexible, color-coded PVC insulation for easy identification
* Annealed, finely stranded Tinned Copper ASTM b172 Class K for durability
* Resistant to acid, alkali, abrasion, flame, gasoline, oil, and moisture
