Pacer DT Deutsch Plug Repair Kit - 14-18 AWG (8 Position) - TDT06F-8RS

DT Deutsch Plug Repair Kit - 14-18 AWG (8 Position)

Pacer's DT repair kits use the larger size 16 contacts (Deutsch Pin P/N 0460-215-16141, Socket P/N 0462-209-16141) for applications using 14 AWG wires. However, DT series connectors are designed for 20-14 wire gauge applications. The DT series offers electrical designers the ability to use multiple sizes of 16 contacts (20-14 AWG) each with a 13-amp continuous capacity, within a single shell. Pacer also sells these other components for use in a wider range of applications.

Features:

• Packs include all parts needed to assemble a connector


• One to two extra terminals


• Cavity plugs to seal open circuits


• Applications:


• Wire-to-wire applications


• Enclosed connectors offer field-proven reliability and rugged quality

Compliances:

• Ingress Protection (IP) Level: IP68 and IP6K9K


• EU RoHS/ELV


• Standard UL-94 Recognized

Characteristics:

• Wedge locks ensure contact alignment and retention


• Redundant Silicone Seals


• Hand-insertable and removable contacts

Technical Specifications:

• Number of Cavities: 8


• Housing: Rectangular receptacle, plastic reinforced with glass fiber


• Contact Size: 16 (13 amp)


• Wire Size: 14 AWG


• Holds Pin/Socket: Sockets


• Operating Temperature: -55°C to 125°C

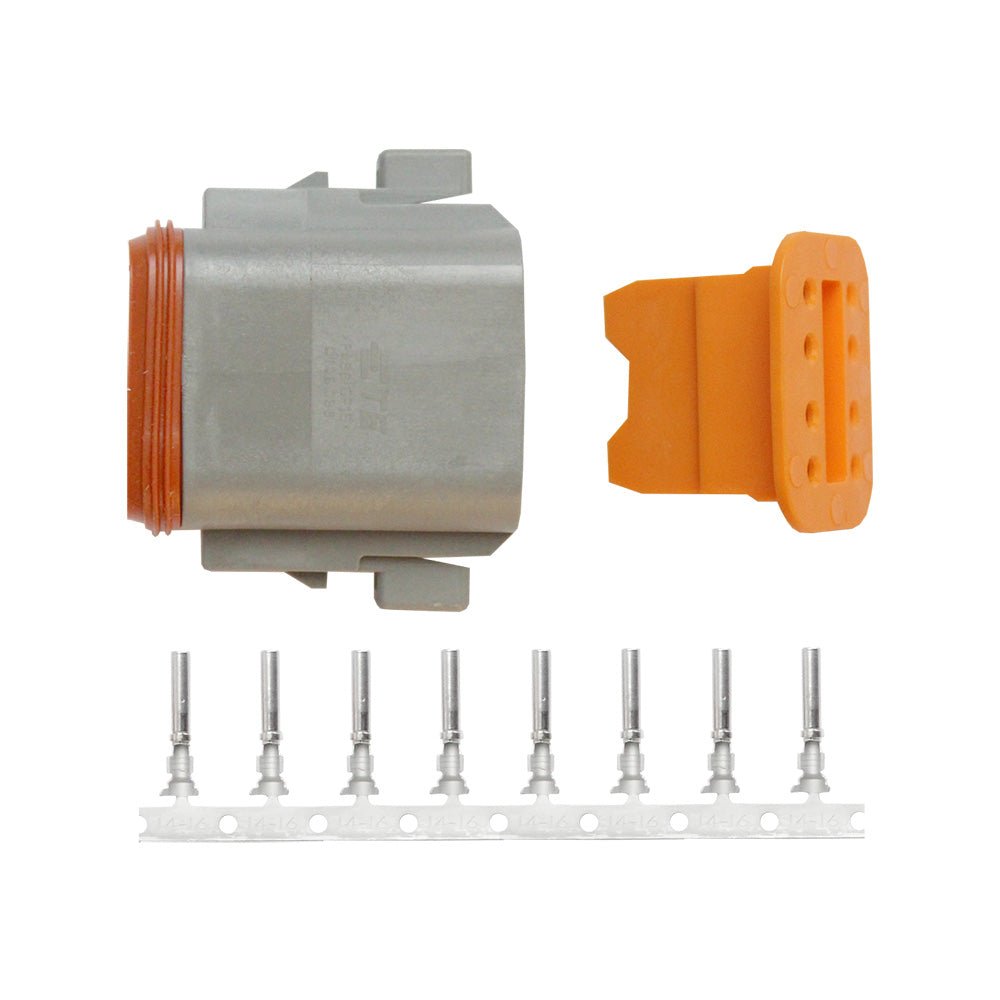

Contents:

• (1) 8 pos. plug


• (1) 8 pos. wedge lock


• (10) sockets


• (4) cavity plugs
