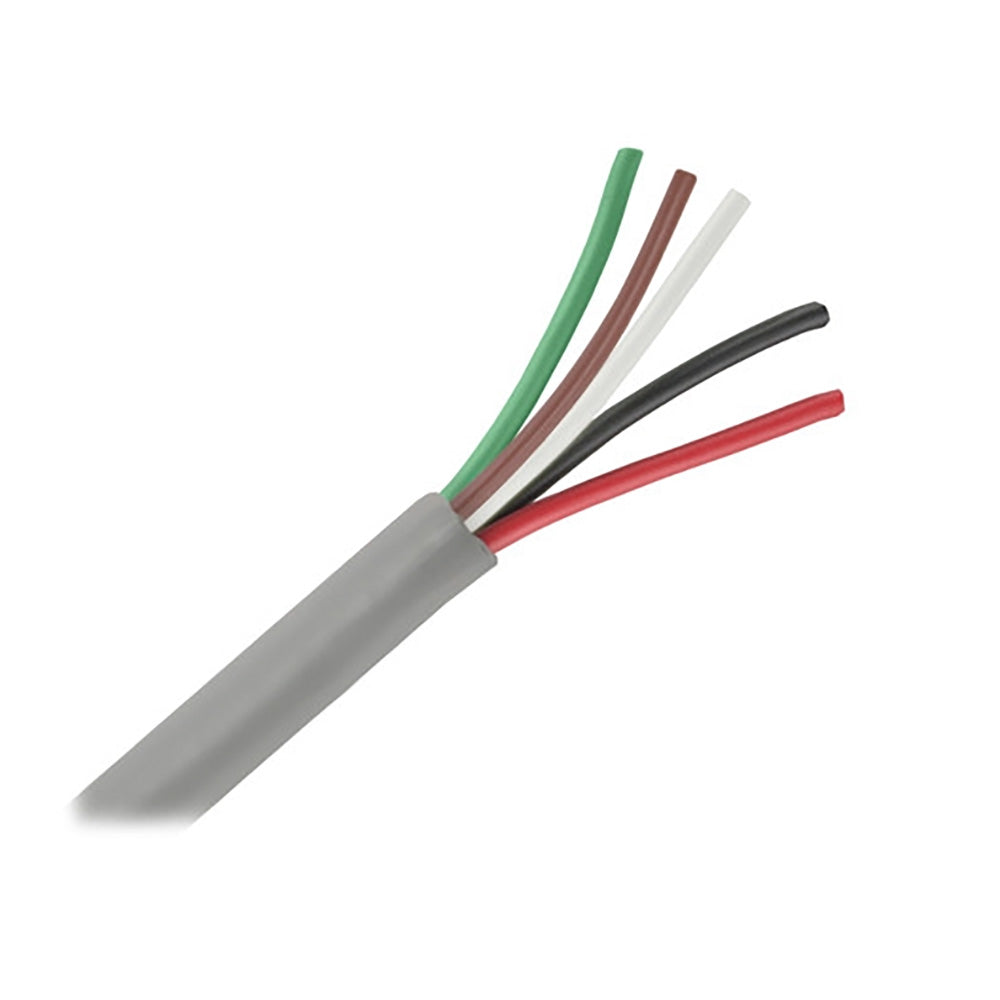

Pacer 18/5 AWG Unshielded Multiconductor Cable, 25 ft, Green, Brown, White, Black & Red

Unshielded 5 Conductor Cable - 25 - 18/5 AWG - Green, Brown, White, Black, Red

Unshielded multiconductor 18 AWG cables are used in a wide variety of applications. Oftentimes, they can be found in things like consumer electronics and industrial control equipment. They are used in advanced signal transmissions in controlled environments as well. What does all that mean Well, essentially, it means that multiconductor cables are used for controlling equipment.

Unshielded multiconductor 18 AWG cables are constructed from finely stranded tinned copper conductors. The conductors are insulated with color-coded PVC. The now insulated conductors are covered with a durable yet flexible PVC jacket. This keeps the conductors together while offering superior protection. These cables are manufactured to meet the requirements for UL, CSA, RoHS, and NEC. Temperatures and voltages are not always the same from cable to cable.

Features:

• 25 ft. of cable


• Fully annealed stranded tinned copper per ASTM B33


• Premium-grade color-coded PVC insulation


• Grey PVC jacket20C to 105C

Specifications:

• Number of Conductors: 5


• Conductor Colors: Green, brown, white, black, and red


• Conductor Stranding: 16/30


• Jacket Color: Grey


• Nom. Cap. pF/ft Between Conductors: 25.0


• Nom. Insulation Thickness: 5 conductors @ 0.016


• Jacket Thickness (inch): 5 conductors @ 0.032


• Nom. Cable O.D. (inch): 5 conductors @ 0.272

Applications:

• Public address systems


• Intercoms and internal telephones


• Suitable for EIA RS-232 applications


• Remote control circuits

Compliances:

• NEC Article 800 Type CM (UL: 75C)


• UL Style 2464 (UL: 80C, 300V, VW-1)


• CSA CMG (CSA: 60C) (Except 18/5)


• CE: Low voltage directive (LVD 2006/95/EC)


• RoHS compliant directive 2011/65/EU


• Vertical tray flame test (70,000 BTU)

The Pacer 18/5 AWG unshielded multiconductor cable is designed for versatile applications including consumer electronics, industrial control systems, and signal transmission in controlled environments. This 25-foot cable features five color-coded conductors*green, brown, white, black, and red*that facilitate easy identification and wiring accuracy. Constructed from finely stranded, fully annealed tinned copper conductors meeting ASTM B33 standards, the cable ensures reliable electrical performance and durability. The conductors are insulated with premium-grade, color-coded PVC, providing excellent insulation and resistance to environmental factors. The durable, flexible PVC jacket covers the entire cable, offering superior mechanical protection while maintaining ease of installation. This cable complies with UL, CSA, RoHS, and NEC standards, making it suitable for a wide range of safety and performance requirements. It is rated for temperatures from 20?C to 105?C and designed to handle voltages appropriate for control and signaling tasks. This makes it ideal for applications such as public address systems, intercoms, internal telephones, EIA RS-232 data connections, and remote control circuits. The cable's construction features a 16/30 strand configuration for each conductor, with an insulation thickness of approximately 0.016 inches and a jacket thickness of about 0.032 inches. Its small outer diameter of approximately 0.272 inches allows for flexible routing in tight spaces. The Pacer 18/5 AWG multiconductor cable also meets critical safety standards, including UL Style 2464 and NEC Article 800 Type CM, with additional certifications from CSA and CE. Its flame-retardant properties and compliance with RoHS further enhance its suitability for both commercial and industrial environments, ensuring safe, reliable operation across various applications and conditions.

Features:
* 25-foot length for versatile installation
* Fully annealed stranded tinned copper conductors meeting ASTM B33 standards
* Premium-grade, color-coded PVC insulation for easy identification
* Durable, flexible PVC jacket providing superior mechanical protection
* Temperature rating from 20?C to 105?C for reliable performance
* Suitable for control circuits, signal transmission, and communication applications
* Meets UL, CSA, RoHS, and NEC standards for safety and environmental compliance
* Compact outer diameter for flexible routing in tight spaces
* Flame-retardant construction with UL style 2464 certification
* Ideal for use in public address systems, intercoms, telephones, and remote control circuits
