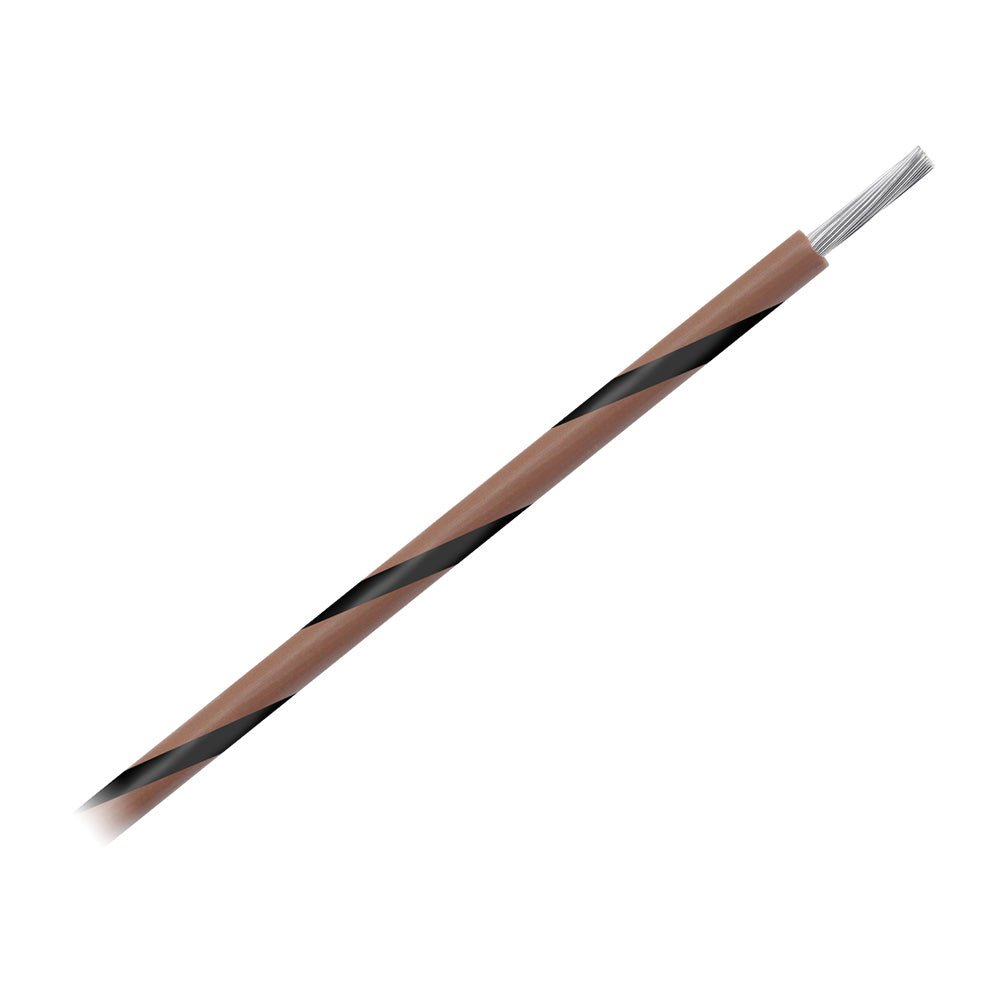

Pacer 14 AWG Gauge Striped Marine Wire 1000' Spool - Brown w/Black Stripe - WUL14BR-0-1000

14 AWG Gauge Striped Marine Wire 1000' Spool - Brown with Black Stripe

Striped wire is perfect for situations involving a large number of wires. Using 14 AWG striped marine wire makes the identification process easier, which increases job efficiency. All of Pacer's primary wire is constructed in Sarasota, FL, USA, from Type III Class K tinned copper. During the manufacturing process, the copper conductors are jacketed with PVC insulation. This insulation is specifically designed to be durable and flexible. All of Pacer's primary striped wire meets the standards and requirements of UL, ABYC, and NMMA.

How many possible combinations of 14 AWG striped marine wire does Pacer offer? Choice is everything, and Pacer has gone out of its way to offer just that. By offering a variety of options, users are guaranteed to find the ideal combination. Pacer offers over 100 possible combinations for 14 AWG striped marine wire. Have a question about striped marine wire? Contact a Pacer expert today. This particular brown marine wire has a black stripe and comes in a 1000 ft. spool.

Features:

• Stranded, Tinned copper conductors


• Highly flexible color-coded insulation


• Annealed Finely Stranded Tinned Copper ASTM b172 Class K


• Resistant to: Acid, Alkali, Abrasion, Flame, Gasoline, Oil, Moisture

Specifications:

• Spool Length: 1000 ft.


• Insulation: -20 degrees C to 105 degrees C Flexible, Color Coded PVC


• Temperature Rating: 105 degrees C Dry, 75 degrees C Wet, 60 degrees C Oil


• Voltage Rating: 600-V

Applications:

• Point-to-point wiring


• Internal wiring of panels and motors

Compliances:

• UL Standard 1426 (BC-5W2)


• AWM 1015/1230


• AWM 1028/1231


• MTW, CSA: TEW


• ABYC: E-8.14, E-9.14, Coast Guard: 33 CFR part183
