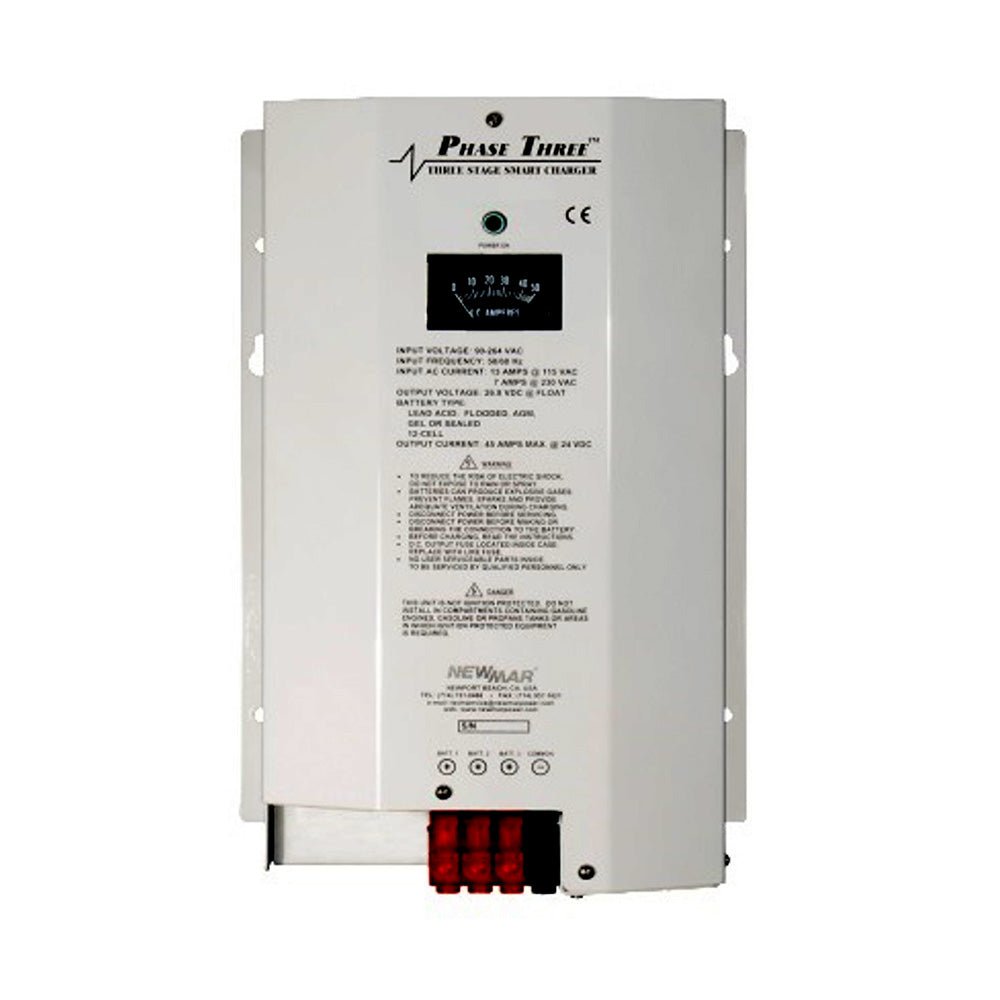

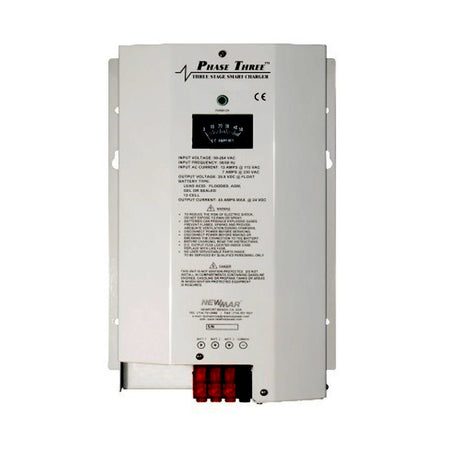

PT-24-8W Battery Charger

“Smart” marine battery charging technology for 24-volt systems aboard workboats, military vessels, commercial vessels, and recreational craft. This charger interacts with batteries, providing the optimum three-stage charge process for fast recovery and conditioning, maximizing performance, and extending battery life.

A selector switch adjusts output voltage to adapt to gel-cell, flooded lead-acid, or AGM battery types. An optional temperature compensation sensor also adjusts output for ideal voltage based on changes in the batteries’ ambient temperature. All models are housed in a rugged stainless steel case with a durable white powder coat finish, and the internal circuitry is polyurethane coated for maximum corrosion resistance.

Features:

• 24-volt model


• “Smart” circuitry provides three-stage charging – bulk, absorption, float


• Gel-Cell/Flooded Lead-acid/AGM battery type switch selects optimum charge/float voltages


• Multiple isolated output banks; ammeter indicates total output current


• The optional sensor adjusts output voltage based on battery temperature


• Current limiting prevents damage from overloading


• Use as a power supply; can power loads without a battery in line


• Built to last – rugged stainless steel case with a durable white powder coat finish with an optional drip shield and marinized internal circuitry


• Protection: Current Limiting, Thermal Protection, Forced Air Cooling, Drip Shield


• Install in conjunction with PT-MCU for additional control and monitoring


• ABS-type approval for battery charging and power supplies

Specifications:

• Input VAC (50-60 Hz.): 85 – 264


• Input Amps @ Full Load: @ 115 VAC: 2.8, @ 230 VAC: 1.4


• Power Factor: .98@115V and .93@230V


• Max Output Amps: 8


• Output Banks: 3


• Battery Capacity (Amp-Hours): 16 – 80


• Operating Temp. Rating Reference: T-1


• Case Size Reference: A-1


• Case Size (H x W x D): 11.2A x 7.7 x 4.75A inches (28.4A x 19.6 x 12.1A centimeters) *Note with Dripshield installed A add 1.1” (2.8 cm) to height and .92” (2.3 cm) to depth


• Weight Lbs./Kg: 8/4


• Optional Temp. Sensor Model: TCS-12/24


• Remote Panel Model: RP


• Compliance Reference: CG, CE, ABS

Temperature Rating References:

• Temperature: -10 degrees C to +60 degrees C


• Derate Linearly From 100% @ 40 degrees C to 60% @ 60 degrees C

Nominal Output Voltages at Gel/Flooded Switch Settings (without Temperature Compensation):

• Gel-Cell: 28.0 VDC Charge @ 50% load and 27.2 VDC Float @ .5 amp load


• Flooded/AGM: 28.4 VDC Charge @ 50% load and 26.8 VDC Float @ .5 amp load

Compliance References:

• UL: UL 1950 (per DNB report)


• CG: USCG CFR 183.410 (Ignition protected)


• EN: EN 60335-1


• CE: Carries the CE mark


• ABS: PT Series meets SVR 2009 4-8-3/5.9, Under 90 meters Rules 2006 4-6-4/7.19, and HSNC 2007 4-8-3/5.13.

Options:

• Remote Panel, model RP, for use with all models except PT-24-20U, PT-24-60, and PT-32-25 (LEDs indicate charger output stage. Manual re-initialization of three-stage charge cycle. With 25′ of cable. Panel dimensions: 3″ H x 4.75″ W)
