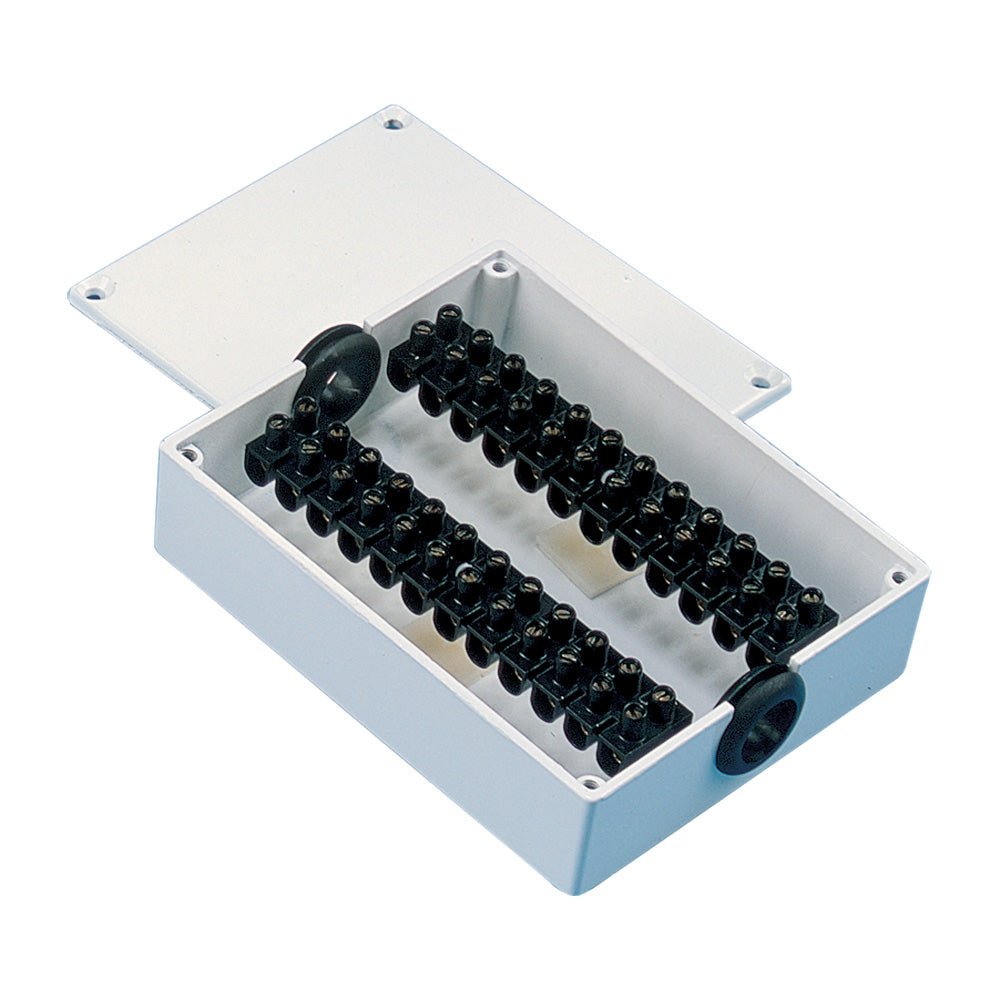

Newmar BX-3 Junction Box

BX-3 Junction Box

This BX Series splashproof box provides secure, protected wiring connections in wheelhouses or below decks and engine rooms.

Features:

• IP rating 54 – “Splashproof”


• Rugged cast aluminum box with white enamel finish


• Metal box reduces electrical interference


• Easy wiring access through multiple grommeted cable entries


• Supplied with high-quality connector strips – secure wires with compression fittings – no terminals required – see matrix below for connector strips specifications per box

Specifications:

• Number of Connector Strips: 2


• Positions per Strip: 11


• Max Wire Gauge: 14


• Max Amps (per position): 10


• Cable Entries: 2


• Cable Diameter: 0.59 in.


• Box Size: 4.7 x 3.7 x 1.3 in.


• Box Size: 11.9 x 9.4 x 3.3 cm
