Manufactures Part Number: AC-II
Truck Freight: No

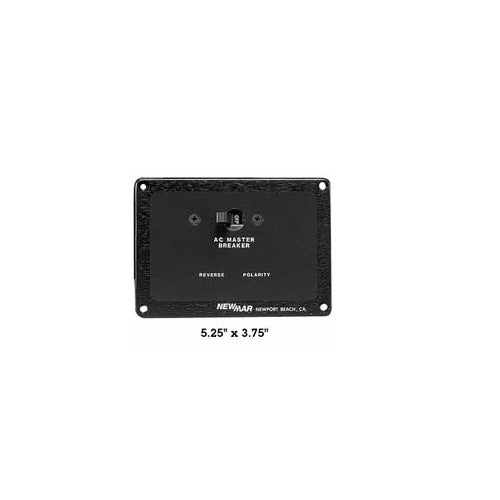

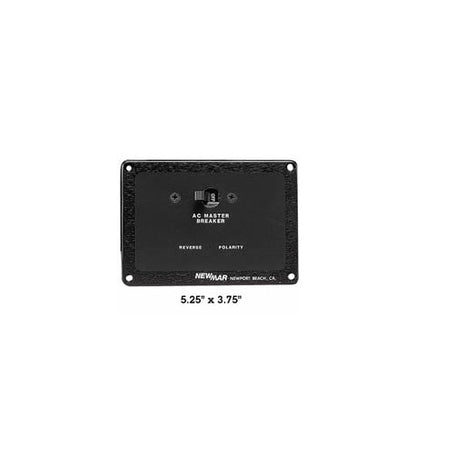

Newmar AC-II AC Master Breaker
AC Master panels
Essential control/protection whenever AC from shorepower or generators is on board. A double pole master breaker with power on indicator light protects both hot and neutral legs of the AC circuit. A reverse polarity light provides clear warning when wiring is reversed and poses a shock hazard. Single pole branch circuit breakers (Model AC-IX) and individual ?ON? indicator lights provide control and protection of various AC loads. For 115/230 VAC applications ? see ratings note. A label set of common on-board circuits is provided.
AC-IX:
30 amp master breaker , 5 branch circuit capacity 4 installed standard 1-10A, 2-15A, 1-20A, or specify. LS-I Label set included. Panel size: 5 1/4" x 7 1/2", (13.3 X 9.5 cm.,) Weight: 2 lbs., (.9 Kg.)
30 Amp master breaker. Panel size: 5 1/4" x 3 3/4" (13.3 X 9.5 cm.), Weight: 1 lb (.5 Kg.)
Model Inches Centimeters AC-IX 4 X 6 10.2 X 15.2 AC-II 4 X 2.5 10.2 X 6.4
