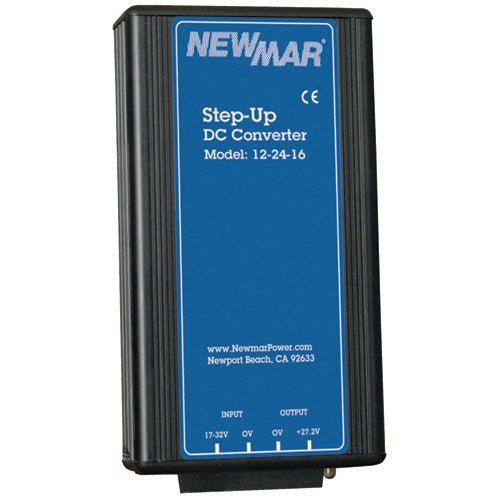

Newmar 12-24-16 Step Up Dc-dc Converter 16 Amp Conitnuos - 460-2417-0
Free Ground Shipping ( 2-6 Day Delivery Time )
Truck Freight: No
⏳ Hurry! Only 4 left in stock
Contact: 866-675-8464
30-day returns available
Manufactures Part Number: 460-2417-0
Truck Freight: No
These "UP" converters produce 24 volts from 12 volt systems and are ideal for managing dual voltage applications on marine vessels without having to install a 24 volt battery and dedicated charging system. Choose from two types depending on your application:
In the Standard, Non-Isolated Series the 12V input and 24V output share a common negative ground and are ideal when installing certain electronics that operate better on 24 volts when a robust 12 volt system exists. Models available in outputs of 7, 16 and 25 amps.
Standard, Non-Isolated Series
- Weight
Case Size
| Centimeters | ||||||
| H | W | D | H | W | D | |
| C-1 | 3.5 | 3.5 | 1.75 | 8.9 | 8.9 | 4.5 |
| C-2 | 4.25 | 5.9 | 14.0 | 10.8 | 15.0 | 35.6 |
| C-3 | 6.0 | 6.8 | 16.5 | 15.2 | 17.3 | 41.9 |
Specifications
Input: 10 - 15V DC
Output: 27.2 VDC +/-5% at extreme temperature load, input, tolerance, etc.
Ripple: <100mV P-P
Regulation: +/- 5% Line/Load
Duty Cycle:
Intermittent: 2 minutes, 20% duty
Continuous: 24 hours, 100% duty
Operating Temp: -25˚ - 30˚ C, derate linearly from 30 to 0% @ 80˚ C
MechanicalHow we compare to other Sellers
