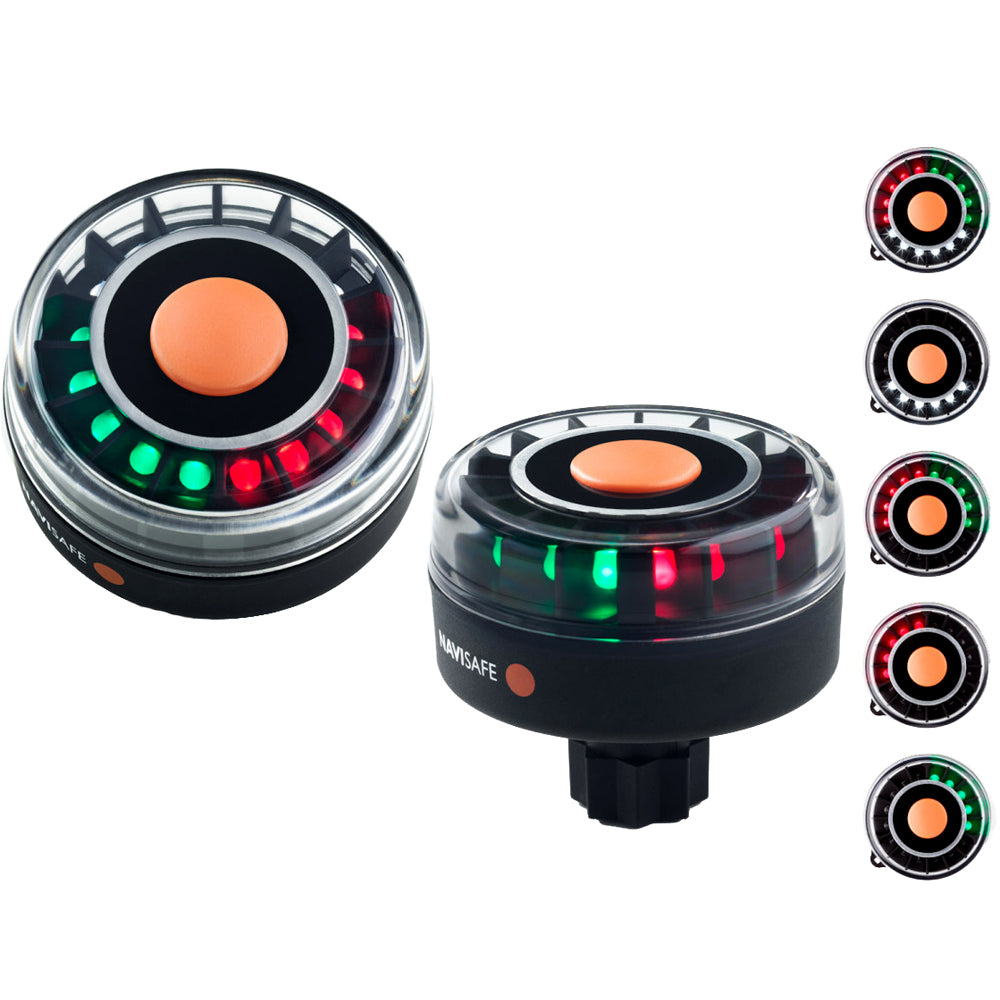

Navisafe Navilight Tricolor 2NM with RAILBLAZA Base – US Coast Guard Approved Marine Navigation Light - 355-1

Navilight Tri-Color 2NM with RAILBLAZA Base

The Navilight Tricolor RB 2NM - US Coast Guard approved for 2 nautical miles includes a green light to be shown at the starboard side and a red light to be shown at the port side. In addition, it includes the white Sternlight, to be used at the stern. It is battery operated, uses super bright LED light, is water proof, floats and is fully compatible with the RAILBLAZA StarPort Mounting system. RAILBLAZA is a New Zealand based supplier of one of the most versatile and EASY-To-USE Mounting systems for boats, ATVs, RVs or trailer. The base of the Navi light has the form of a star and will fit directly in many Anchor Winches and Winches as well as to specially designed mountings such as the Navisafe RAILBLAZA Sideport, the Navisafe RAILBLAZA Starport and the Navisafe RAILBLAZA RailMount.

The green as well as the red lights show an unbroken light over an arc of the horizon of 112,5. The white Sternlight shows an unbroken light over an arc of the horizon of 135. All lights work independently, in a combination of all three or red/green together.

Examples of Usage:

*Based on the Convention on the International Regulations for Preventing Collisions at Sea, commonly called 72 COLREGs.

On a power-driven vessel of 12M or more in length but less than 50M in length:

• As green or red sidelight
• As sternlight

On a power-driven vessels of less than 12M in length:

• As green or red sidelight
• As combined green / red
• As sternlight

On a sailing vessel underway:

• As green or red sidelight
• As sternlight

On a sailing vessel of less than 20M in length as backup light:

• Tricolor lantern at or near the top of the mast

Specifications:

• USCG Approval, 2 Nautical Miles
• 5 Modes: Tricolor Masthead light (135 white, 112,5 red, 112,5 green), BiColor side light, red side light, green side light, white Sternlight
• Floatable, waterproof (20M) and air-tight
• For use with Railblazas StarPort system
• Powered by three AAA batteries (not included)
• Size: H = 62mm, Diameter = 68mm
• Weight (net): 93g

Modes / approximate burn time:

• 16 green / red / white LED, 360 Tricolor lantern / 12hrs
• 10 green / red LED, 225 Bi-Color sidelight / 20hrs
• 5 green or 5 red LED, 112,5 sidelight / 38hrs
• 6 white LED, 135 Sternlight / 32hrs

The Navisafe Navilight Tricolor RB 2NM is a versatile marine navigation light designed for safety and convenience on boats of various sizes. Fully compliant with US Coast Guard regulations, this LED-powered light offers a visibility range of up to 2 nautical miles and is suitable for power-driven vessels from 12 to 50 meters in length, as well as sailing vessels under 20 meters. Its waterproof, floatable, and air-tight design ensures durability in harsh marine environments, while the battery operation provides reliable performance without the need for external wiring. Powered by three AAA batteries (not included), the Navilight features five distinct modes, including a 135-degree white sternlight, a 112.5-degree red port light, and a 112.5-degree green starboard light, along with combined bi-color and tri-color options for flexible navigation signaling. The LED lights are super bright, ensuring high visibility even in low-light conditions, and offer impressive burn times, ranging up to 20 hours depending on the mode used. The device's compact size and lightweight construction make it easy to handle and mount, with a height of approximately 2.5 inches and a diameter of 2.7 inches. It is fully compatible with the RAILBLAZA StarPort mounting system, allowing for quick and secure attachment to a variety of boat mounts, including anchor winches and specialized rail mounts. The Navisafe Navilight Tricolor RB 2NM is an essential safety accessory for boaters who prioritize visibility, compliance, and ease of use, whether for navigation, signaling, or backup lighting in compliance with international maritime regulations.

Features:

• US Coast Guard approval for 2 nautical miles visibility range

• Five modes: tri-color masthead, bi-color side lights, red and green sidelight, and white sternlight

• Super bright LED lights for high visibility in low-light conditions

• Waterproof, floatable, and air-tight design ensures durability at sea

• Compatible with RAILBLAZA StarPort mounting system for versatile installation

• Powered by three AAA batteries (not included) for reliable operation

• Compact size with easy handling and mounting options

• Meets international navigation standards for power-driven and sailing vessels
