Navico Precision-9 Compass - 000-12607-001

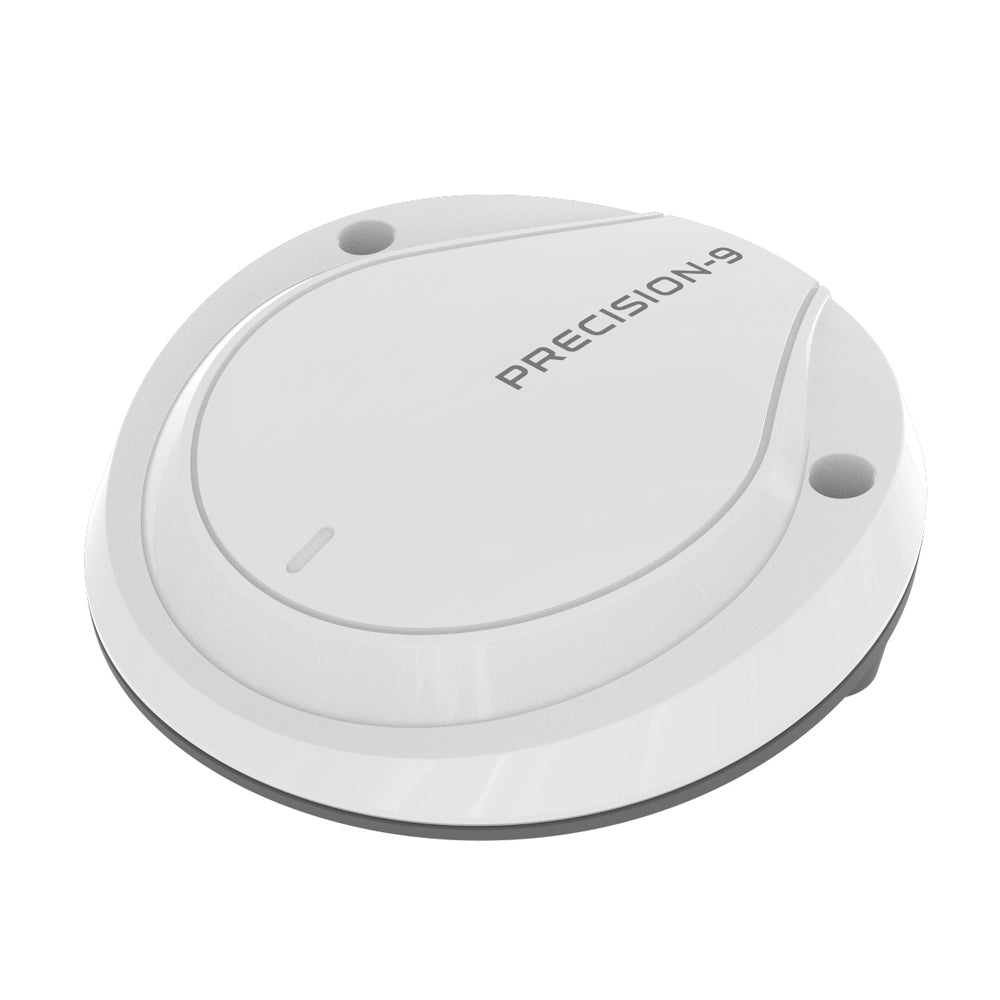

Precision-9 Compass

Precision-9, a solid-state compass that measures motion on nine separate axis alignments. Designed for both recreational and commercial markets.

Advantage of Innovation

The Precision-9 compass D which replaces the RC-42N rate compass D features modern, solid-state technology and components. Customers will notice dynamic improvements in performance of autopilot control and stabilized radar displays, including MARPA target tracking.

NMEA 2000® Heading & ROT Output

When connected to an NMEA 2000® network, the Precision-9 Compass will output Heading, Rate of Turn (ROT), Roll and Pitch data to networked autopilot, radar, sonar, multifunction displays and other navigational systems.

Solid-State Sensor Technology

The Precision-9 Compass incorporates a solid-state sensor array based on MEMS technology.

Mount Almost Anywhere

An easily adjustable mounting bracket and single-cable NMEA 2000® connectivity allow the Precision-9 Compass to be installed on any vessel, in almost any location.

Key Features

• NMEA 2000® heading sensor for non-SOLAS vessels




• Heading, Rate of Turn (ROT), roll and pitch output




• Heading and ROT calculated using maximum poistions of rotation and motion




• Accurate and reliable solid-state sensor technology




• Heading accuracy of +/- 2° after calibration




• Easily adjustable mounting bracket allows bulkhead or up-mast installation




• IPX7 waterproof for external up-masting on steel hulled vessels




• Simple installation with a single NMEA 2000® connection

• Compass Sensor




• T-Connector - 000-0119-79




• 15' NMEA 2000 Drop cable - 000-0119-86
