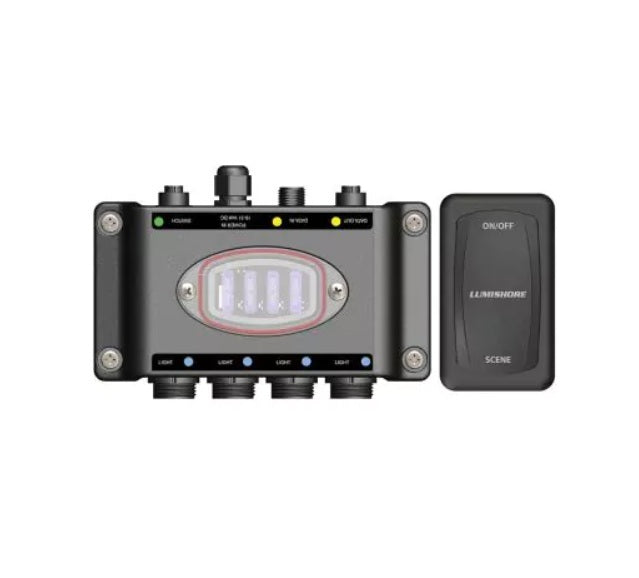

Lumishore SUPRA THX/TIX i-Connect Install Kit - 010-04358-00

Lumishore SUPRA THX/TIX i-Connect Install Kit

• Full control via certified MFD or EOS-LUX-SUPRA Display


• Specially Designed for Ease of Installation


• Plug and Play Connections


• IP68 Field Installable Connectors (supplied)


• Built-in Switching Power Relay


• Replaceable Blade Fuse For Each Light


• Status Indication LED for Each Light


• Built-In Noise Filter

The SUPRA Installation/Upgrade Kit enhances the function of your Dual Color SUPRA lights.

It’s plug-and-play junction box makes for easy installation and includes the fuses and easy-connect terminals for the lights and the switch.

This kit is required for all underwater TIX/THX models and optional for the SMX53.

Number of Lights per Hub
4

Max Number of Hubs per Installation (Surface Mount)
4 Hubs (16 Lights)

Connections
SMX - Field Installable Connector (supplied with Hub)

Fuses
Replaceable Blade Fuses. Each Light Individually Fused

Status Indication LEDs
Yes — for Each Light

Voltage Range
10.5 — 31V DC

Max Input Current
40 A

Max Output Current (i.e., Max Current Per Light)
10 A

Cable Entry / Exit
IP68 Connections

Switching Method
Built-in Relay

Noise Suppression
Built-in Noise Filter

Reverse Polarity Protection
Yes

Lumi-Link Compatible
Yes
