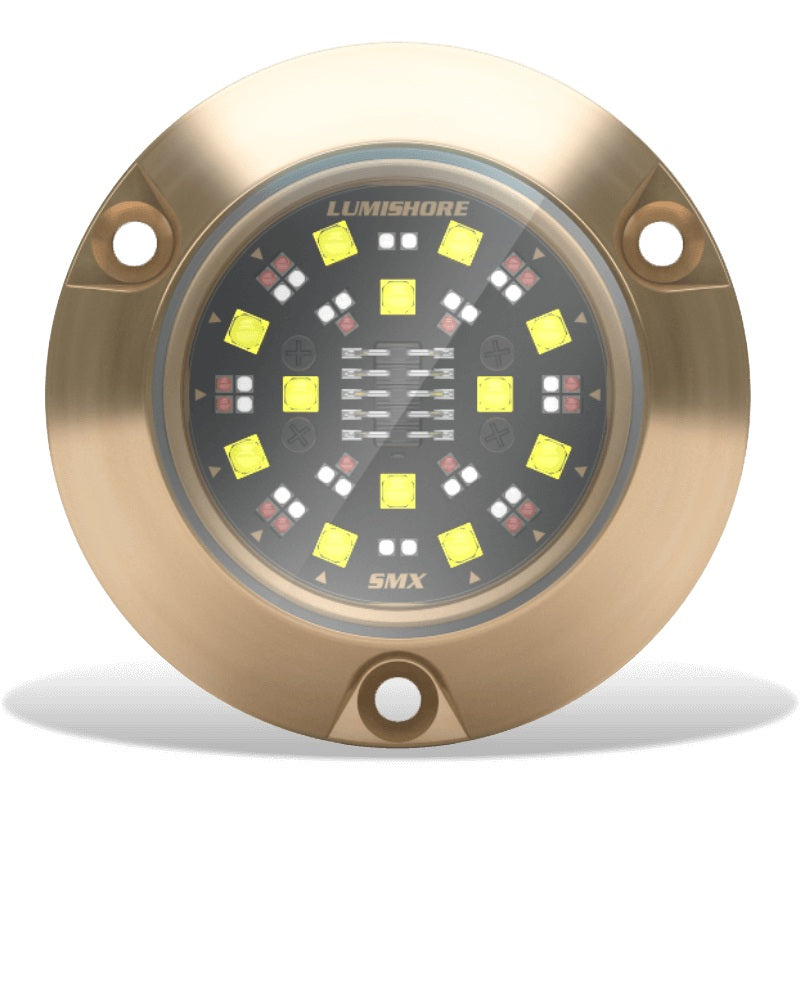

Lumishore SMX94 RGBW Surface Mount

Lumishore SMX94 RGBW Surface Mount

As well as efficiency and performance, the SMX94 is unmatched in ease of installation due to its built-in driver and simple 2-wire connections.

Enjoy full-spectrum RGBW color change lighting, that packs a powerful 6,000 fixture lumens into a wide 90° beam.

Control the SMX94 with a standard on/off switch to cycle through colors; toggle to pause on any color in the spectrum or the ECLIPSE Command Center.

Suitable for stepped hulls, transoms, and hull side installations.

AVAILABLE LED COLORS
FULL COLOR SELECT (RGBW)

LUMENS
13,500

VERIFIED FIXTURE LUMENS (WHITE)
6,000

NUMBER AND TYPE OF LED
White—12 5W / Green—12 3W / Blue—12 3W / Red—16 3W

LED POWER - HICOB ARRAY
YES

TYPICAL LED LIFE
50,000+ HOURS

BEAM ANGLE (DEGREES)
90°

DRIVER
Multi-Channel Internal Driver

SUPPLY VOLTAGE
12/24 V DC

MAX CURRENT DRAW
3.5A/1.75A

HOUSING TYPE
MARINE GRADE BRONZE / GLASS LENS

USER CONTROL OPTIONS
STANDARD ON/OFF SWITCH OR ECLIPSE COMMAND CENTER

Warranty
3 YEARS
