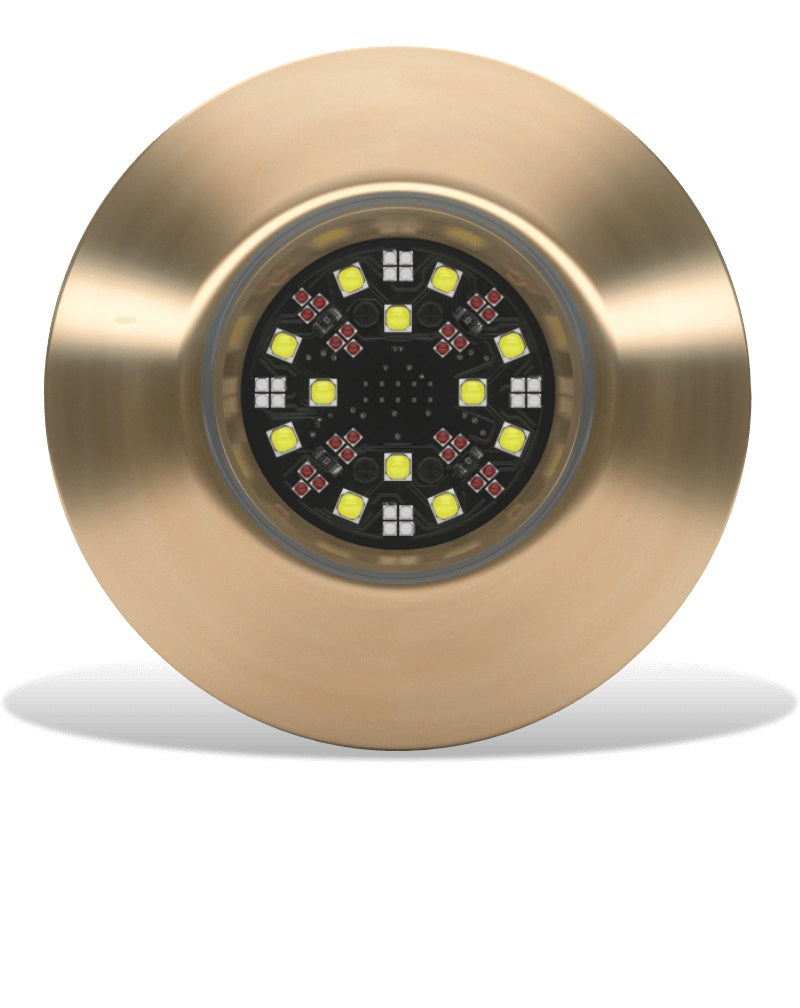

Lumishore EOS TIX404 Interchangeable Thru-Hull Mount RGBW LED - 010-04529-00

Lumishore EOS TIX404 Interchangeable Thru-Hull Mount RGBW LED

The fully controllable color change TIX404 underwater light delivers the greatest range of colors and offers a powerful 7,500 verified fixture lumens and an ultra-wide 110° beam angle for the ultimate halo-effect.

Control colors, modes & special effects directly from your MFD and/or the optional Lumishore Display.

All Lumishore Thru-Hulls are ‘flush-fit’ with extremely low profiles, suitable for transom, side and bottom mounting. TIX models have the added benefit of an internal LED array and integrated driver, for the ability to service from inside the hull and to simplify installation.

AVAILABLE LED COLORS
EOS FULL COLOR CHANGE

LUMENS
16,875

VERIFIED FIXTURE LUMENS (WHITE)
7,500

NUMBER AND TYPE OF LED
White—12 10W / Green—12 3W / Blue—12 3W / Red—16 3W

LED POWER - HICOB ARRAY
YES

TYPICAL LED LIFE
50,000+ HOURS

BEAM ANGLE (DEGREES)
110°

DRIVER
Multi-Channel Internal Driver

SUPPLY VOLTAGE
12/24 V DC

MAX CURRENT DRAW (12/24)
5.8/2.9A

HOUSING TYPE
MARINE GRADE ALUMINUM BRONZE

USER CONTROL OPTIONS
From your MFD and/or optional Lumishore Display

LIGHTS SYNCHRONIZED
YES

COLOR CYCLE
YES

COLOR CYCLE w/SPEED ADJUST
YES

COLOR SWEEP w/SPEED ADJUST
YES

CUSTOMIZABLE FAVORITES
YES

FIXED STROBE (2-Speed)
YES

WI-FI CONTROL (APP)
YES

SOUND-TO-LIGHT
YES

BRIGHTNESS ADJUST
YES

AUTO LIGHT DISCOVERY & SETUP
YES

WARRANTY
3 YEARS

What's in the Box:

• One (1) EOS TIX404 Light with Built-in Driver
