Lumishore ECLIPSE SMX24 Surface Mount White LED - 010-04503-00
Free Ground Shipping ( 2-6 Day Delivery Time )
Truck Freight: No
⏳ Hurry! Only 3 left in stock
Contact: 866-675-8464
30-day returns available
Manufactures Part Number: 010-04503-00
Truck Freight: No

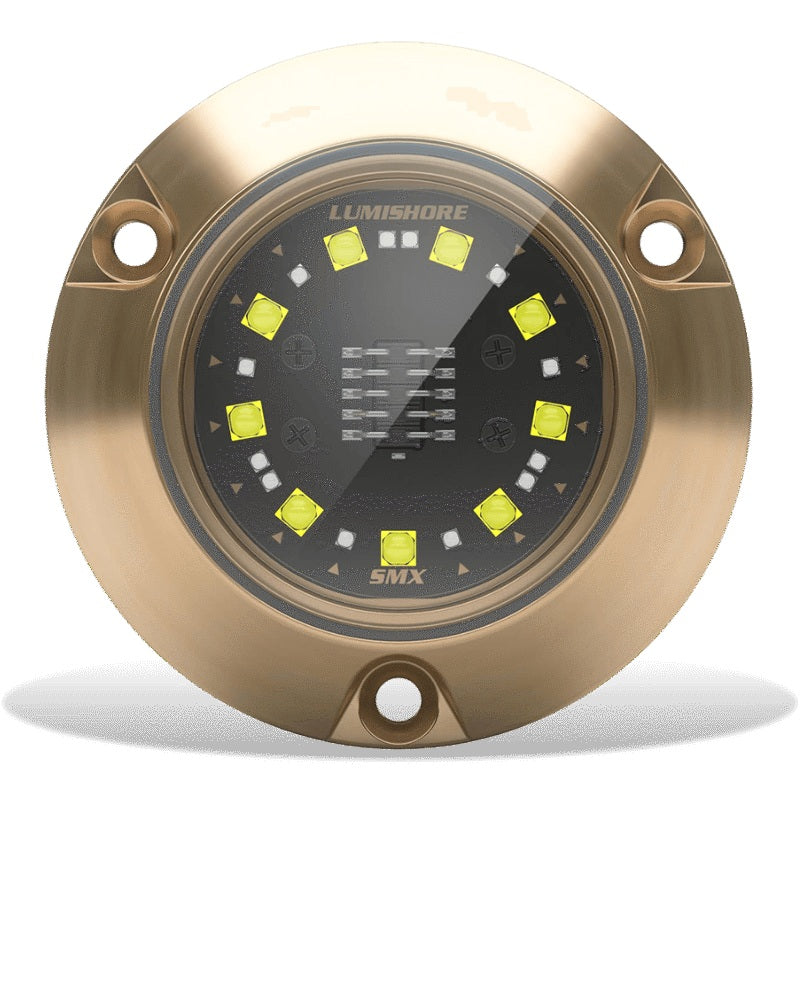

Lumishore ECLIPSE SMX24 Surface Mount White LED
Model: 60-0532 / 010-04503-00Specifically designed for smaller boats, the SMX24 - White offers unmatched light output and optics for a light of its compact size. Flooding the water with 3,100 fixture lumens of light in a 90° beam.
It's built-in driver and simple 2-wire connections make the installation of this light easier than ever.
Suitable for stepped hulls, transoms, and hull side installations.
Controlled by an ON/OFF switch or the ECLIPSE Command Center.
SpecificationsCOLOR
WHITE
LUMENS
6,975
VERIFIED FIXTURE LUMENS (WHITE)
3,100
NUMBER AND TYPE OF LEDS
White — 9 5W
LED POWER - HICOB ARRAY
YES
TYPICAL LED LIFE
50,000+ HOURS
BEAM ANGLE (DEGREES)
90°
DRIVER
MULTI-CHANNEL INTERNAL DRIVER
SUPPLY VOLTAGE
12 V DC ONLY
MAX CURRENT DRAW
2.5A 2.5A 2.5A
HOUSING TYPE
MARINE BRONZE BODY/ GLASS LENS
USER CONTROL OPTIONS
STANDARD ON/OFF SWITCH OR ECLIPSE COMMAND CENTER
DIMMING CONTROL
YES
WARRANTY
3 Years
