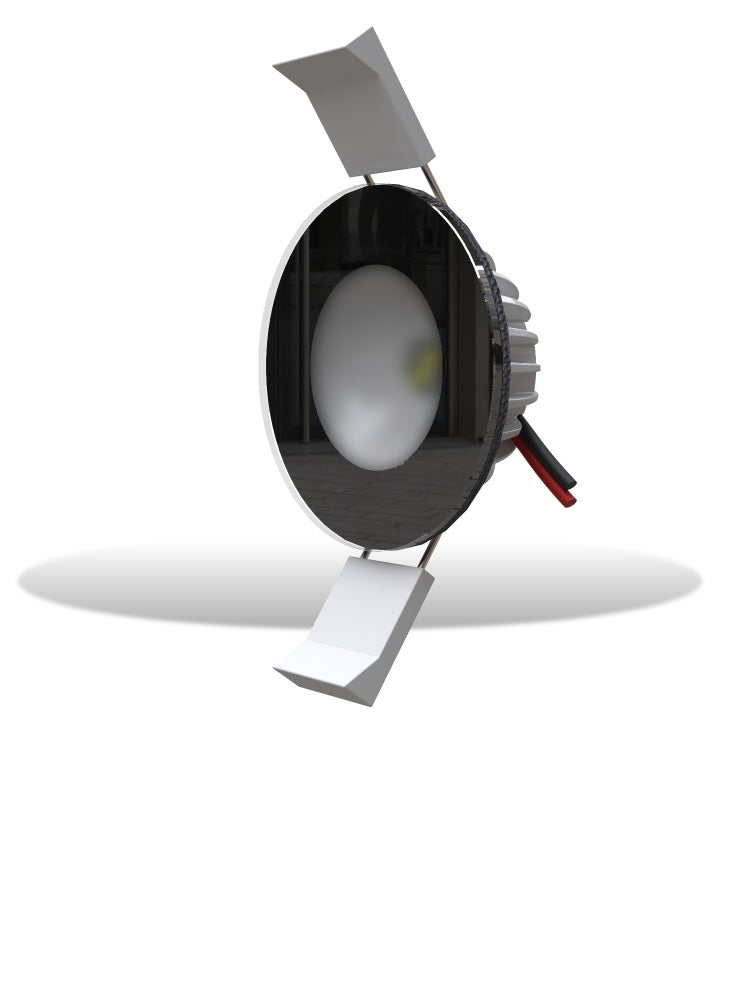

Lumishore Eclipse DL55 Downlight RGBW 12v Black Bezel

Lumishore Eclipse DL55 Downlight RGBW 12v Black Bezel

Lumishore’s ECLIPSE Downlights offer exceptional lighting for various indoor and outdoor overhead areas on board.

They are fully water-sealed and have an IP67 rating. Installation is straightforward with a 2-wire connection and a shallow depth of just 21mm (0.83").

Available in White + RGB, dual color blue and white, or single color blue or white, you can select either a black or white finish to match your boat's aesthetic.

Available Colors
White (5000k) + Red, Green, Blue

LED Type
1 x 3W Red LEDs / 1 x 3W Blue LEDs / 1 x 3W Blue LEDs / 1 x 3W White LEDs

Customer Control Options
On/Off Switch or ECLIPSE Command Center

Electrical Installation
Simple 2 Wire Installation

Supply Voltage Range
12V DC Only (10 - 15V DC)

Max Current Draw (12/24V DC)
0.4A

Ingress Protection
IP67

Front Diamater (Bezel)
64.0mm (2.519")

Profile (When Installed)
3.00mm (0.118")

Hole Diameter for fitting
50.8mm (2.0")

Mechanical Installation
Stainless Steel Spring Clips Marine Adhesive (Optional)

Warranty
3 Years
