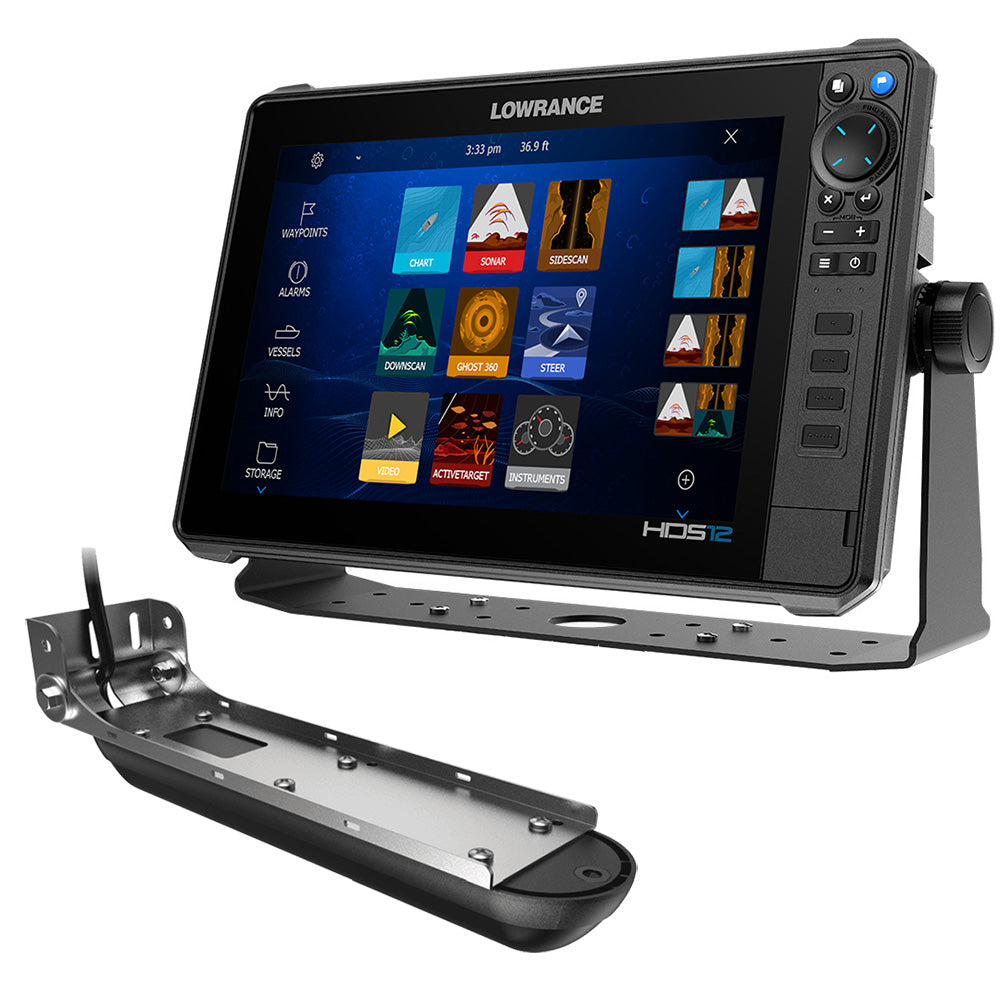

Lowrance HDS PRO 12 w/Preloaded C-MAP DISCOVER OnBoard & Active Imaging 3-in-1 Transom Mount Transducer

HDS PRO 12 with Preloaded C-MAP DISCOVER OnBoard Active Imaging 3-in-1 Transom Mount Transducer

See more and catch more with the HDS PRO 12 fishfinder/chartplotter. Watch fish react to your lure live with support for high-resolution ActiveTarget 2 Live Sonar, and find fish and holding structure with ultra-high-definition Active Imaging HD. Quickly locate prime fishing areas with preloaded C-MAP DISCOVER OnBoard charts and get a full fishing system that networks with expanded boat control from bow to stern.

Features:

• Preloaded C-MAP DISCOVER OnBoard charts with 1-foot contours on 19,000+ US Lakes, 9,400+ Canadian Lakes


• SolarMAX HD Touchscreen is viewable at extreme angles and through polarized lenses


• High-definition Active Imaging HD ready (Lowrance CHIRP/SideScan/DownScan Imaging)


• High-resolution ActiveTarget 2 Live Sonar ready


• FishReveal with SideScan view, as well as Downscan (*Requires S3100 and compatible transducer)


• Real-time mapping is available with C-MAP Genesis Live.


• Support for ActiveTarget Scout and Ghost Trolling Motor 360 chart overlay views


• Large programmable keys


• Touchscreen control of Power-Pole anchors, Ghost Trolling Motor, Autopilot, and Lowrance Outboard Pilot


• NMEA 2000, wireless and Bluetooth, connectivity plus smartphone notifications

Display:

• Backlight Color: Pure white LED


• Display Resolution: 1280 x 800


• Viewing Angles: 80 top/bottom, 80 left/right

Connectivity:

• Bluetooth: Integrated Bluetooth 4.0 with support for Bluetooth Classic


• Ethernet Ports: 2 x 100 Mbit, 6 max MFDs on a network


• Connectivity WiFi: Internal 802.11b/g/n and compatible with WiFi-1 Module


• NMEA 2000 Connectivity: 1x Micro-C


• SD Card Storage: 2 micro SD cards up to 32GB

Electrical:

• Power Consumption Max: 3.6A @ 13VDC with full backlight, sonar on


• Power Consumption Minimum: 2.3A @ 13VDC with full backlight, sonar on


• Power Consumption Typical: 2.3A @ 13VDC with full backlight, sonar on


• Recommended Fuse Rating: 5A


• Supply Voltage: 12V DC (10.8-17VDC)

Environment:

• Operating Temperature Range: 5F to 131F (-15C to 55C )


• Storage Temperature Range: 4F to 140F (-20C to 60C )

GPS:

• GPS Receiver Channels: 16


• Update rate: 10 Hz

MFD (Multi-Function Display):

• Cartography included: C-MAP Discover OnBoard (AMER models)


• Internal Storage: 8.0 GB Internal


• Waypoints, Routes, Tracks: 3000 Waypoints, 100 Routes, and 100 Trails with up to 10,000 points per trail

*Sidescan Fish Reveal requires S3100 module and a compatible transducer

Active Imaging 3-in-1 Transom Mount Transducer

See structure and cover with a level of refined detail and at a range unmatched by any other structure imaging technology with Active Imaging 3-in-1 sonar featuring CHIRP, SideScan, and DownScan with FishReveal. The high-level clarity, target separation, and detail of Active Imaging will help you find more fish by making it easier to quickly identify fish-holding structure like rockpiles, standing timber, weedbeds, ditches, and drop-offs all at a greater distance from your boat. Get the best of CHIRP sonar and DownScan on one screen with the exclusive FishReveal Smart Target view that helps you easily recognize fish from structure and cover on high-detailed DownScan images.

Features:

• More refined detail and better range than any other imaging technology


• Active Imaging 3-in-1 transducer with Lowrance CHIRP, SideScan, and DownScan


• Easier target identification with FishReveal Smart Target View


• Supports Medium and High CHIRP (83/200kHz) + 455/800kHz frequencies


• Compatible with Lowrance HDS LIVE, HDS Carbon, Elite Ti2, and Simrad NSS evo3 and GO series displays

Environmental

• Operating temperature: -15C to +55C (+5F to +131F)


• Storage temperature: -30C to +70C (-22F to +158F)

Physical

• Cable length: 7.6 m (25 ft)


• Mounting options: Transom, flush step, and jackplate mounting


• Connector: 9-pin

Transducer

• Output: Traditional, SideScan imaging, DownScan imaging, and temperature


• Frequency: Traditional: 200 kHz/High: Chirp 83 kHz/Medium Chirp, SideScan: 455 kHz, 800 kHz


• Max depth: Traditional: 305 m (1000 ft) at 200 kHz/High Chirp and 83 kHz/Medium Chirp: DownScan: 91 m (300 ft): SideScan: 91 m (300 ft) side range at 455 kHz, 46 m (150 ft)


• Operating speed: Traditional: 48 knots (55 mph): DownScan and SideScan: 9 knots (10 mph)

Whats In The Box

• HDS PRO fishfinder/chartplotter (12-inch display screen)


• C-MAP DISCOVER OnBoard (Preloaded in HDS PRO fishfinder/chartplotter)


• Active Imaging 3 in 1 Transom Mount Transducer
