Lowrance Elite FS 9 Active Imaging 3in1 Transducer C-Map Contour+ - 000-15692-001
Free Ground Shipping ( 2-6 Day Delivery Time )
Truck Freight: No
Contact: 866-675-8464
30-day returns available
Manufactures Part Number: 000-15692-001
Truck Freight: No
Lowrance Elite FS 9 Active Imaging 3in1 Transducer C-Map Contour+
Lowrance Elite FS 9 with Acdtive Imaging 3 in 1 and C-Map Contour+
Model: 000-15692-001- ActiveTarget Live sonar and Active Imaging compatible: Live Sonar: Supports sonar accessories such as ActiveTarget™ and Active Imaging™ 3-in-1 Sonar
- Full networking capability: Multiple Displays: Share sonar, charting, waypoints, and other user data between displays
- High Resolution Multi-touch screen
- Preloaded with C-MAP Contour + charts (AMER,APAC)
- NMEA 2000®: Support and control NMEA 2000® devices
- Halo Radar: Drive Lowrance radar domes directly
- Total Control: Full touchscreen control of Power Pole® anchors and Ghost® Trolling Motor
The new Elite™ Fishing System (FS) gives you access to the full line-up of Lowrance fishfinding tools — including ActiveTarget™ live sonar, Active Imaging™, FishReveal™ and preloaded C-MAP® Contour™ + charts
SpecificationsEnvironmental
Operating temperature range
-15°C to +55°C (5°F to 131°F)
Storage temperature
-20°C to +60°C (4°F to 140°F)
Waterproof rating
IPX6 and IPX7
Electrical
Supply voltage
12 V DC (10 - 17 V DC min - max)
Recommended fuse rating
3 A
Power consumption (maximum)
28 W (2 A at 13.8 V DC)
Display
Resolution
800 x 480 pixels
Viewing angles in degrees
50° top, 60° bottom, 70° left and right
Brightness
> 1200 nits
Touch screen
Multitouch
Physical
Weight (display only)
1.2 kg (2.7 lbs.)
Compass Safe Distance
0.5 m (1.6 ft.)

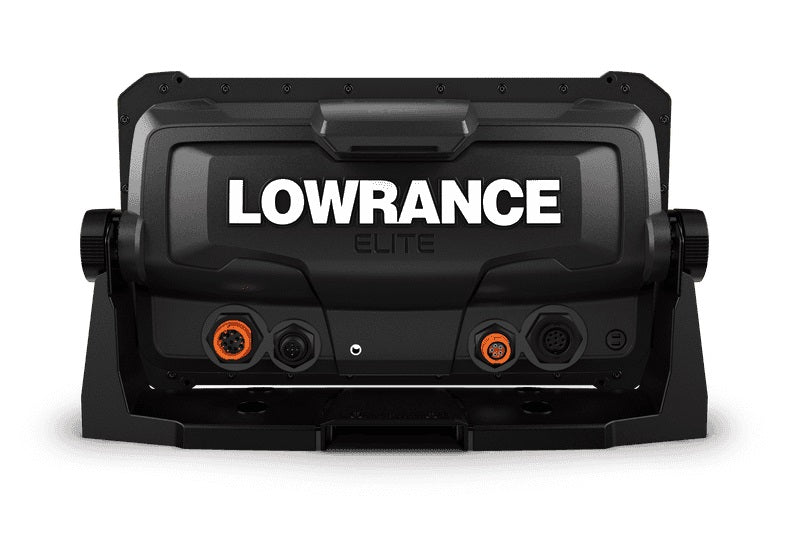

Interface/Connectivity
NMEA 2000®
1 port (Micro-C connector)
1 port (Micro-C connector)
1x slot (microSD, SDXC)
Ethernet
1 port, (5-pin Ethernet connector, 100Base-T)
Sonar
1 port (9-pin connector)
WiFI Internal
802.11b/g/n : No wireless networking between units
Bluetooth®
4.0 with support for Bluetooth® Classic
GPS
10Hz high speed update WAAS, MSAS, EGNOS, GLONASS
What's in the Box:
- Elite FS 9 Display
- Sun cover
- Mounting bracket and knobs
- Power cable
- Fuse and fuse holder
- Active Imaging 3-IN-1 Transducer
