Lopolight Red Port Light - 2 Nautical Mile Range - Black Housing with FB Base

Red Port Light - 2NM - Black Housing with FB Base

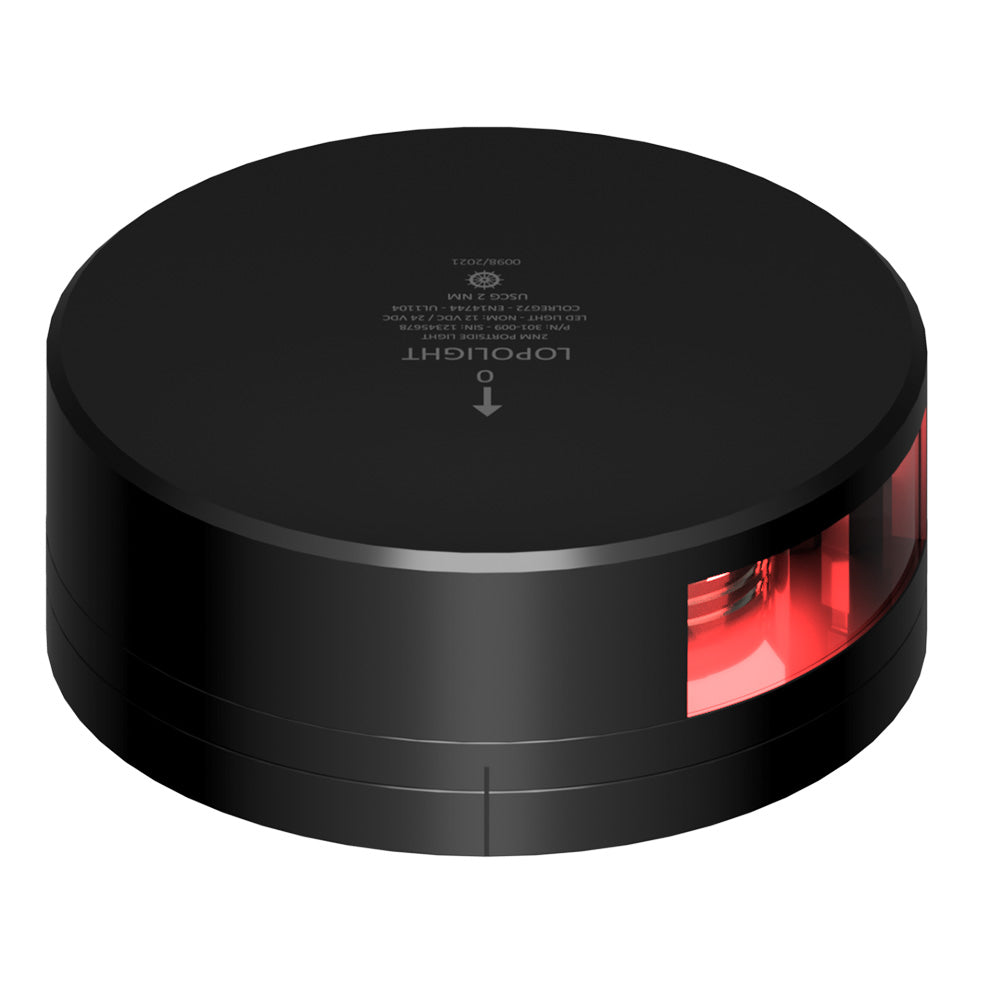

This red port light has black housing, is horizontally mounted, and has a two-nautical-mile range. The FB base centers the wiring for antenna-type pole mountings. The base provides a screw-down onto the deck solution as well as a from-below mounting. Essentially, the base provides a sleeker, reduced profile.

Features:

• Black anodized aluminum housing


• 2.5m cable is included

Specifications:

• Approved To: COLREG72,EN14744,IEC 60945,IACS E10,USCG,ABS,M.E.D.,DNV,LR


• Mounting: Horizontal


• EAN: 5704438043862


• Min. Feed Wire Gauge: 0.5mm² AWG22


• Light Color: Red


• Visibility: 2NM


• Included In the Package: 1 Navigation light, pre-cabled with 2.5 meters shielded marine grade cable and installation guide


• Materials: Black anodized aluminum 25, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane


• IP rating: IP68


• Connection: 2.5m cable


• Current Consumption (mA @ 24VDC): 50


• Current Consumption (mA @ 12VDC): 90


• Dimensions Metric: 92.5mm x 36mm


• Dimensions Imperial: 3.6" x 1.4"


• Operating Temperature: -25 degrees C to 55 degrees C


• Operating Voltage: 10-32VDC


• Power Draw (W): 1.2


• Vessel Size: Under 12 meters, 12-20 meters, and 20-50 meters

Enhance your vessel's navigation safety with the Lopolight Red Port Light, designed for reliable maritime signaling. This high-quality port light features a durable black anodized aluminum housing that withstands harsh marine environments, ensuring long-lasting performance. Its horizontally mounted design provides optimal visibility, and with a range of two nautical miles, it guarantees your vessel is visible to nearby ships and maritime authorities, complying with international safety standards.

The Lopolight Part Number 301-009-FB-B is equipped with a sleek FB base that centers the wiring for easy installation on antenna-type pole mountings. The base offers a secure screw-down deck mounting solution and a from-below mounting option, reducing profile and enhancing the vessel's aesthetic. The included 2.5-meter shielded marine-grade cable simplifies wiring connections, making installation straightforward. Constructed from high-quality PMMA lens, stainless steel screws, epoxy, and polyurethane, this port light is built to endure the rigors of marine environments, including exposure to saltwater and extreme temperatures.

Designed to operate within a voltage range of 10-32VDC, the light consumes minimal power*approximately 1.2 watts*while providing bright, red illumination. Its IP68 rating ensures complete protection against dust and water ingress, making it suitable for vessels under 50 meters in length. The light's compact dimensions make it easy to integrate into various vessel designs without compromising space or aesthetics. Whether you operate a small boat or a larger vessel, the Lopolight Red Port Light offers a reliable, compliant, and efficient solution for navigation lighting needs.

Features:
* Black anodized aluminum housing for durability and corrosion resistance
* Two nautical miles visibility range for effective signaling
* Horizontal mounting design for optimal light projection
* FB base with screw-down and from-below mounting options for secure installation
* Includes 2.5-meter shielded marine-grade cable for easy wiring
* Compliant with international safety and navigation standards including COLREG72 and IEC 60945
* IP68 waterproof rating ensures protection against dust and water ingress
* Operates within 10-32VDC voltage range with low power consumption of approximately 1.2 watts
* Compact dimensions suitable for vessels under 50 meters in length
* Constructed with high-quality materials including PMMA lens and stainless steel screws
