Lopolight Combined Sidelight 2NM with Silver Housing and FB Base for Marine Navigation - 201-003-FB

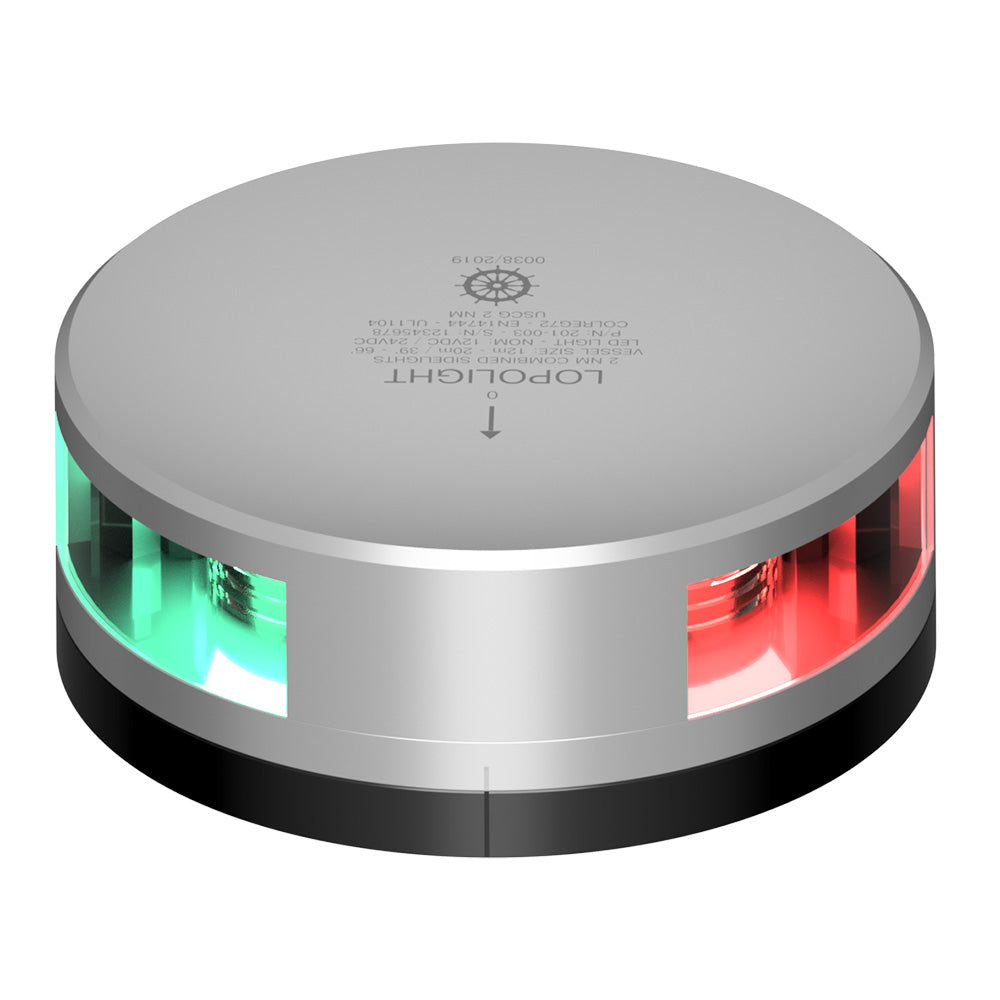

Combined Sidelight - 2NM - Silver Housing with FB Base

This silver sidelight is horizontally mounted and has a two-nautical-mile range. The FB base centers the wiring for antenna-type pole mountings. The base provides a screw-down onto the deck solution as well as a from-below mounting. Essentially, the base provides a sleeker, reduced profile.

Features:

• Silver anodized aluminum housing


• 0.75m cable is included

Specifications:

• Approved To: COLREG72,EN14744,IEC 60945,IACS E10,USCG,ABS,M.E.D.,DNV,LR


• Mounting: Horizontal


• EAN: 5704438043282


• Min. Feed Wire Gauge: 0.5mm² AWG22


• Light Color: Red and green


• Visibility: 2NM


• Included In the Package: 1 Navigation light, pre-cabled with 2.5 meters shielded marine grade cable and installation guide


• Materials: Silver anodized aluminum 25, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane


• IP rating: IP68


• Connection: 2.5m cable


• Current Consumption (mA @ 24VDC): 90


• Current Consumption (mA @ 12VDC): 163


• Dimensions Metric: 92.5mm x 36mm


• Dimensions Imperial: 3.6" x 1.4"


• Operating Temperature: -25 degrees C to 55 degrees C


• Operating Voltage: 10-32VDC


• Power Draw (W): 2.2


• Vessel Size: Under 12 meters

Enhance your vessel's safety and visibility with the Lopolight Combined Sidelight, designed specifically for boats under 12 meters. Featuring a sleek silver anodized aluminum housing, this navigation light offers a professional-grade solution with a 2 nautical mile range, ensuring clear visibility in all maritime conditions. The horizontally mounted design provides optimal light distribution, adhering to international standards such as COLREG72, EN14744, and IEC 60945, making it an essential addition to your marine navigation equipment.

The Lopolight Part Number 201-003-FB is engineered with durability and ease of installation in mind. It includes a pre-cabled connection with a 2.5-meter shielded marine-grade cable and a thoughtfully designed FB base that centers wiring for antenna-type pole mountings. The base offers a streamlined profile, allowing for a secure screw-down mounting onto your vessel*s deck from below, reducing clutter and improving aesthetics. The housing is constructed from corrosion-resistant materials, including PMMA lens and stainless steel screws, ensuring longevity even in harsh marine environments.

Operating efficiently within a voltage range of 10 to 32 volts DC, this navigation light consumes only 2.2 watts at 24VDC, making it energy-efficient for extended use. Its IP68 rating guarantees complete protection against dust and water ingress, suitable for demanding maritime conditions. The light features dual colors*red and green*providing clear navigation signals, and is approved by multiple maritime safety standards including USCG, ABS, and DNV. With dimensions of approximately 3.6 inches by 1.4 inches, the compact design fits seamlessly on smaller vessels, delivering reliable performance whether day or night.

Perfect for vessels under 12 meters, the Lopolight Combined Sidelight 2NM with Silver Housing and FB Base combines advanced technology, durable construction, and easy installation to meet the rigorous demands of marine navigation. Whether upgrading existing lights or outfitting a new vessel, this sidelight ensures compliance, safety, and visibility in all maritime operations.

Features:
* Silver anodized aluminum housing provides corrosion resistance and durability
* Horizontal mounting design for optimal light distribution
* Includes a pre-cabled 2.5-meter shielded marine-grade cable for easy installation
* FB base centers wiring for antenna-type pole mountings, offering a sleek, low-profile installation
* Approved to international standards including COLREG72, EN14744, IEC 60945, USCG, ABS, and DNV
* Visibility range of 2 nautical miles ensures clear signals in maritime conditions
* Dual-color red and green lights for accurate navigation signaling
* IP68 rated for complete dust and water ingress protection
* Compact dimensions suitable for vessels under 12 meters
* Low power consumption of 2.2 watts at 24VDC ensures energy efficiency
