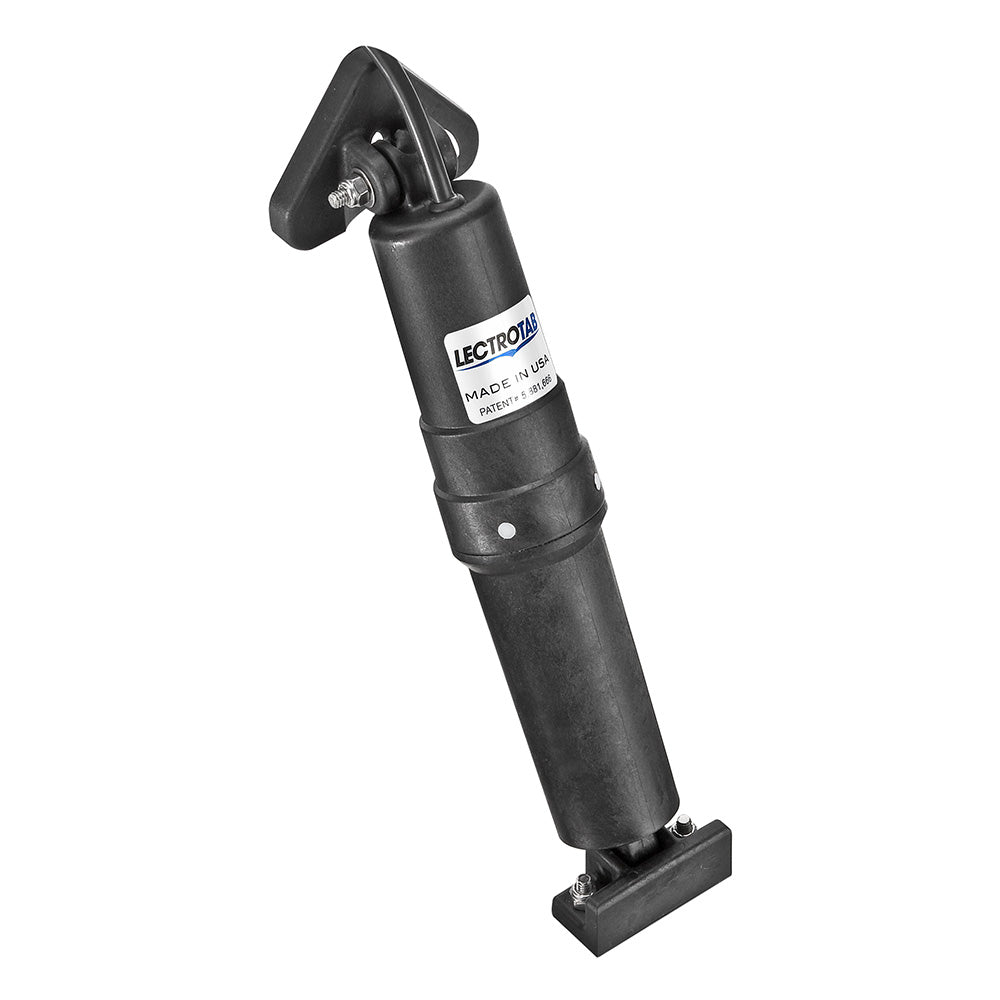

Lectrotab Standard Trim Tab Actuator - 12V, 28' Cable for Precise Marine Control - A-BK-24

Standard Trim Tab Actuator - 12V - 28 Cable

Lectrotab trim tab actuators are precision-engineered to combine quiet operation with a non-hydraulic, maintenance-free design. The unit is corrosion-free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation. The actuator assembly is packaged in a non-metallic, permanently sealed housing. No components need to be installed inside the boat. Most importantly, unlike hydraulic trim tabs, there is no oil to leak out. The actuator incorporates either a standard or low-profile transom mounting bracket. Actuators come in 12 and 24 VDC with an 8-second recommended stroke time or a 4-second stroke time.

Features:

• Actuator DC Voltage - 12V
• 28 Cable
• The upper ram seal location cannot be damaged due to a fouled ram or barnacle growth
• Utilizes an internal pressure equalization system
• Upgrades to the most popular hydraulic and electromechanical systems
• Internal brake system prevents unwanted tab movement when underway or backing down
• Quiet operation
• All actuators are fully load tested to push 1000 lbs of force
• Non-metallic external structure that cannot corrode and will not deteriorate in the sun or underwater

Specifications:

• Model: A-BK-24
• DC Voltage: 12VDC
• Stroke Length: 2.25/57mm
• Stroke Speed: 8 sec
• Distance from Bolt to Pin: 11.5/292mm
• Vertical Height (Typical Installation Fully Retracted):11.875/302mm
• Cable Length (Feet/Meter): 28/8.5m
• Upper Mounting Bracket: Standard
• Lower Mounting Bracket: Standard
• Use Actuator with Tabs: All Tabs

*Sold as an Individual

The Lectrotab Standard Trim Tab Actuator (Part Number: A-BK-24) is designed for reliable, maintenance-free operation in marine applications. Engineered with precision, this 12VDC actuator offers quiet performance and accurate tab positioning, ensuring optimal boat handling. Its corrosion-resistant, non-metallic housing prevents deterioration from sun and water exposure, making it ideal for demanding marine environments. The integrated internal pressure equalization system and internal brake provide smooth, safe operation, even under heavy loads. Unlike hydraulic systems, this actuator contains no oil, eliminating the risk of leaks and simplifying installation. The unit is fully load tested to deliver up to 1,000 pounds of force, providing ample lift for various boat sizes and configurations. The standard or low-profile transom mounting brackets allow for flexible installation options, and the 28-foot cable ensures easy connection to your boat's control system. The stroke length of 2.25 inches (57mm) and a quick 8-second stroke time enable rapid, precise adjustments for optimal performance. Designed to be compatible with all tabs, the Lectrotab actuator is an upgrade from traditional hydraulic and electromechanical systems, offering improved durability and ease of use. Its sealed construction and robust design make it suitable for both new installations and replacements, providing dependable performance for years to come.

Features:

• Actuator DC Voltage: 12V

• Cable Length: 28 feet (8.5 meters)

• Corrosion-free non-metallic external housing

• Internal pressure equalization system for smooth operation

• Internal brake system prevents unwanted movement

• Quiet operation for unobtrusive performance

• Load-tested to push up to 1,000 lbs of force

• Includes standard transom mounting brackets

• Compatible with all tabs for versatile installation

• Fast 8-second stroke for rapid adjustments
