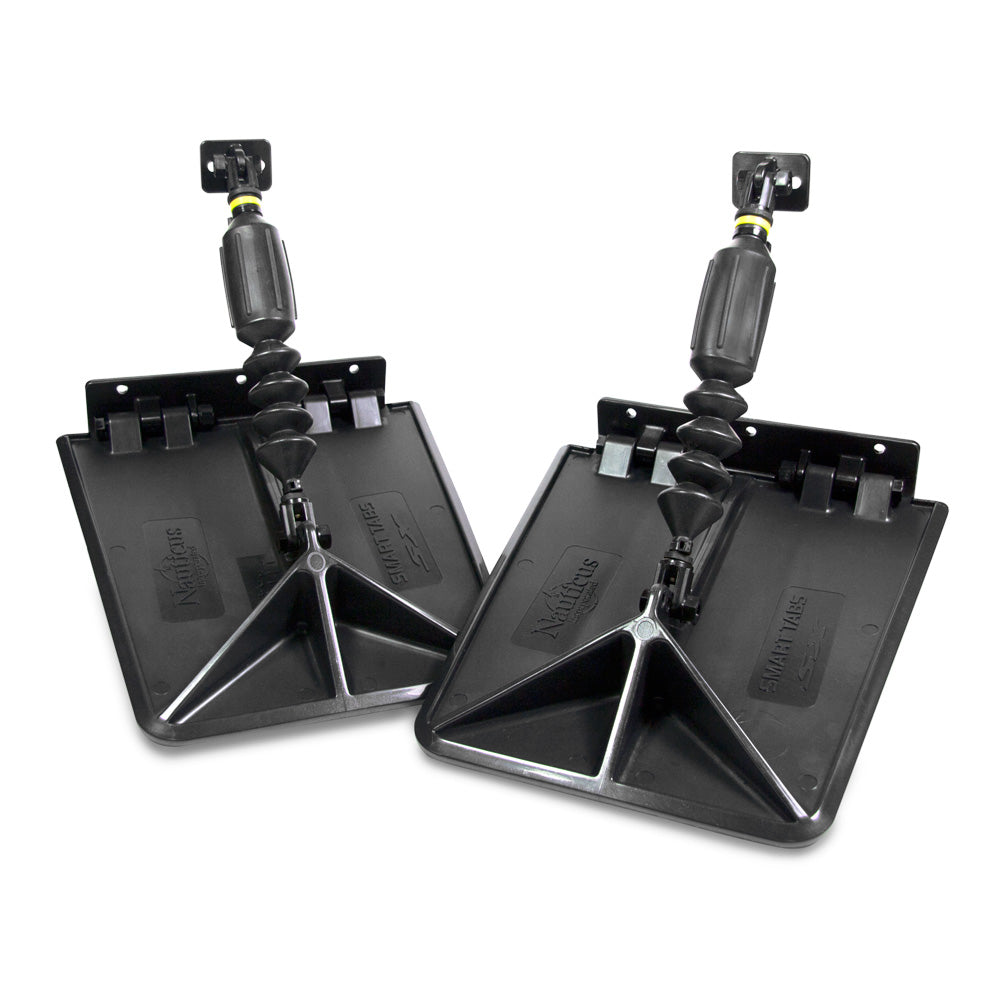

Lectrotab Smart Tabs SX Series 10.5 x 12 for 21-25 Foot Boats Up To 350 HP

Smart Tabs SX Series 10.5 X 12 for 21-25 Boats Up To 350 HP

If these trim tabs dont provide you with an outstanding performance increase, contact us within 30 days of your purchase.

Why buy a manually adjusting trim tab set when you can get the automatic trim tabs that will self-adjust and perform better for less money

The SX series incorporates all of the fully automatic features of our popular SMART TABS, in addition to the rust and corrosion-free benefits of molded composite materials. Assembly can be completed in seconds, and the installation in a few minutes. The only tools required are a drill with a 3/16 bit and a Phillips screwdriver. SMART TABS SX provide unequaled performance and durability with no maintenance in fresh or salt water. The system can be specifically tuned to maximize the performance of any power boat, and TRACKING RIBS have been added to improve handling at higher speeds.

Our breakthrough technology in trim tabs is completely automatic, requiring no operator adjustment while underway. Nauticus trim tabs self-adjust according to how you load and maneuver your boat.

The nitrogen Gas Actuator provides LIFT at the stern of the boat by holding the trim plate down during acceleration. The amount of LIFT is determined by the actuator load rating and the trim plate adjustment, which is done at the time of installation.

• Reduce the minimum planning speed by up to 33%


• Faster Acceleration


• Increase top speed


• Provide a level, more comfortable ride at lower speeds


• Improve fuel economy, handling and safety

NO HYDRAULICS - NO ELECTRIC SWITCHES

Nauticus trim tabs are completely automatic requiring no operator adjustment while underway.

The nitrogen Gas Actuator provides LIFT at the stern of the boat by holding the trim plate down during acceleration. The amount of LIFT is determined by the actuator load rating and the trim plate adjustment, which is done at the time of installation. (see installation instruction).

SPEED REGULATION

Nauticus trim tabs start in a downward angel to maximize lift at slow speeds. As the boat accelerates, the water pushes up on the trim plates providing lift to the stern which minimizes bow rise, and allows the boat to plane quickly.

Once the water pressure exceeds the actuator load rating (maximum lift) the trim plates move up to a horizontal position eliminating any drag.

BOAT STABILIZERS

Even when cruising SMART TABS continue to work like shock absorbers. The constant adjustment to sea conditions allow SMART TABS to provide remarkable stability in turns, while crossing waves, while cruising, and while running at maximum speeds. No more sliding, porpoising, or chine walking.

ONE OF A KIND

The unique system is the only one of its kind in the industry. The internal valve system is truly smart in its design of controlling you boats performance.

It will reduce the minimum planning speed by 33% Provide a level, more comfortable ride at lower speeds Improve economy, handling and safety

As the boat speed increases, the water pressure also increases. Once the water pressure exceeds the Actuator load rating (maximum LIFT period) the trim plates begin to move upward until they are horizontal with the bottom of the boat.

The internal valve system dampens the trim plate movement which eliminates any instant reaction to minor water pressure variances. Nauticus trim tabs provide smooth and undetectable reaction to boat speed creating a level, more comfortable ride at lower speeds.

INSTALLATION IS SIMPLE

With an electric drill, small drill bit, a phillips screwdriver, and two wrenches, just about anyone can install SMART TABS in less than an hour. Professional installers should be able to install SMART TABS in 30 minutes or less.

*All mounting hardware, instructions, and templates are included.

*SMART TABS require NO THROUGH HULL DRILLING

Upgrade your boat's performance with the Lectrotab Smart Tabs SX Series 10.5 x 12, designed specifically for boats ranging from 21 to 25 feet and capable of handling up to 350 horsepower. These fully automatic trim tabs eliminate the need for manual adjustments, providing seamless self-leveling operation that enhances handling, stability, and speed. Constructed from corrosion-resistant molded composite materials, the SX series offers durability and trouble-free maintenance in both freshwater and saltwater environments. Installation is straightforward, requiring only a drill with a 3/16 inch bit, a Phillips screwdriver, and a few minutes, making it suitable for both DIY enthusiasts and professional installers.

The system features a nitrogen gas actuator that provides lift during acceleration, helping to reduce planning speed by up to 33%, accelerate faster, and reach higher top speeds. Once the boat reaches a certain speed, the trim plates move to a horizontal position, minimizing drag and optimizing fuel efficiency. The innovative internal valve system dampens responses to minor water pressure changes, ensuring smooth, undetectable adjustments that contribute to a comfortable, level ride at all speeds. These trim tabs also act as boat stabilizers, constantly adjusting to sea conditions to prevent sliding, porpoising, or chine walking, delivering remarkable stability during turns, wave crossings, and cruising.

Designed without hydraulics or electric switches, the Nauticus Smart Tabs SX series offers a reliable, low-maintenance solution that enhances safety and handling. The system is fully tunable at installation, allowing customization to maximize your boat*s performance. The installation process is simple, with all hardware, instructions, and templates included, making it easy for anyone to set up in less than an hour. The unique internal valve design ensures smooth operation, providing a more comfortable ride and improved fuel economy across various speeds and water conditions. With the Lectrotab SX series, you gain a high-performance, durable, and easy-to-install trim tab system that optimizes your boat*s handling and efficiency.

Features:
* Fully automatic self-adjusting trim tabs that require no operator input while underway
* Constructed from corrosion-resistant molded composite materials for durability in saltwater and freshwater
* Nitrogen gas actuator provides lift during acceleration, reducing planning speed and increasing top speed
* Internal valve system dampens minor water pressure fluctuations for smooth, undetectable adjustments
* Enhances boat stability, handling, and safety by continuously adjusting to sea conditions
* Simple installation with included hardware, instructions, and templates*no through-hull drilling required
* Designed to improve fuel economy, reduce bow rise, and provide a more comfortable ride at all speeds
* Speed regulation feature maintains optimal trim and minimizes drag as boat accelerates
* Ideal for boats up to 25 feet and 350 HP, suitable for recreational and fishing vessels
