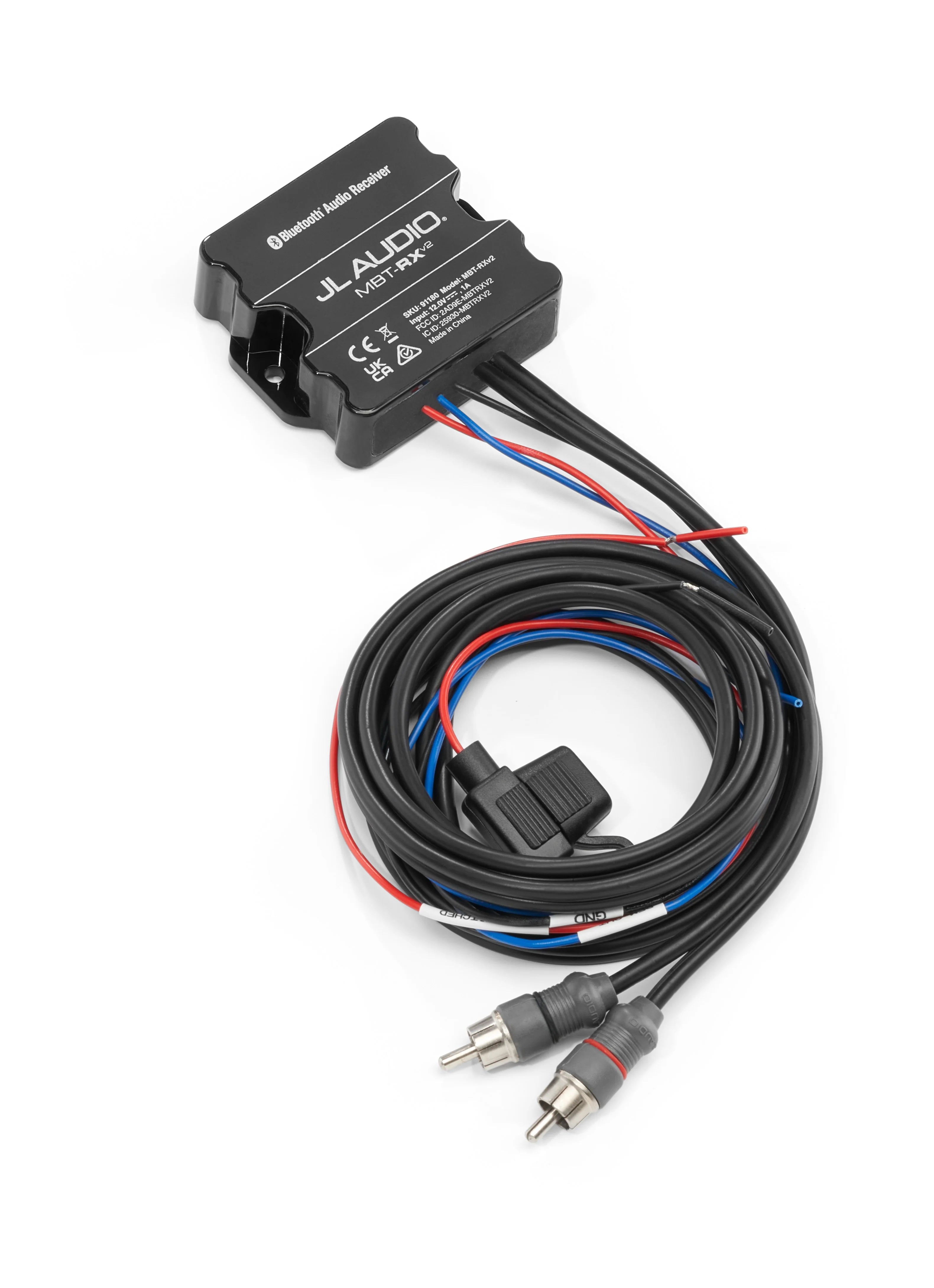

JL Audio MBT-RXv2 Water-resistant Audio Receiver with BLUETOOTH® Wireless Technology

The MBT-RXv2 wireless receiver is designed to easily add high-quality streaming audio capability to virtually any sound system.

Equipped with BLUETOOTH wireless technology and the Qualcomm® aptX™ HD audio codec, the MBT-RXv2 wireless receiver sends top-quality sound directly to any amplifier or source unit with line-level inputs via a pair of crystal-clear preamp outputs (4-volt RMS).

Housed in a sealed and water-resistant (IPX7-rated) chassis, this premium audio receiver is ideally suited for challenging outdoor applications, plus its tiny design can easily fit in almost any installation location. A simple procedure is all it takes to pair MBT-RXv2 to your device, with automatic reconnection afterward. All playback, including volume and media selection, is controlled by using your compatible streaming device from up to 35’ (11 meters) away.

The receiver includes +12-volt (1 amp) remote turn-on output for amplifier control.

Bluetooth® Profile
A2DP (High-Quality, Stereo Audio)

Bluetooth® Core Specification
Version 5.0 with Qualcomm® aptX™-HD audio

Frequency Response
20 Hz - 20 kHz (±1dB)

Outputs
One Stereo Pair, Low-Level RCA Plugs

Output Voltage
4V RMS

S/N Ratio
100 dB (20 Hz - 20 kHz)

Input Operating Voltage
10 - 16 VDC

Current Draw
40 mA

Fuse Rating
2 A Mini ATC

Connection Range*
Up to 35' / 11 m

*Maximum range is achieved in line-of-sight installations. While the receiver can be mounted in a hidden location, actual range will vary based on installation specifics.

Width
2.64 in / 67 mm

Height
2.28 in / 58 mm

Depth
0.79 in / 20 mm

What's in the Box:

• MBT-RXv2 Bluetooth Receiver
