JL Audio M6 8in Subwoofer with White Classic Grille Infinite Baffle - 010-03080-00

JL Audio M6 8in Subwoofer with White Classic Grille Infinite Baffle

93615

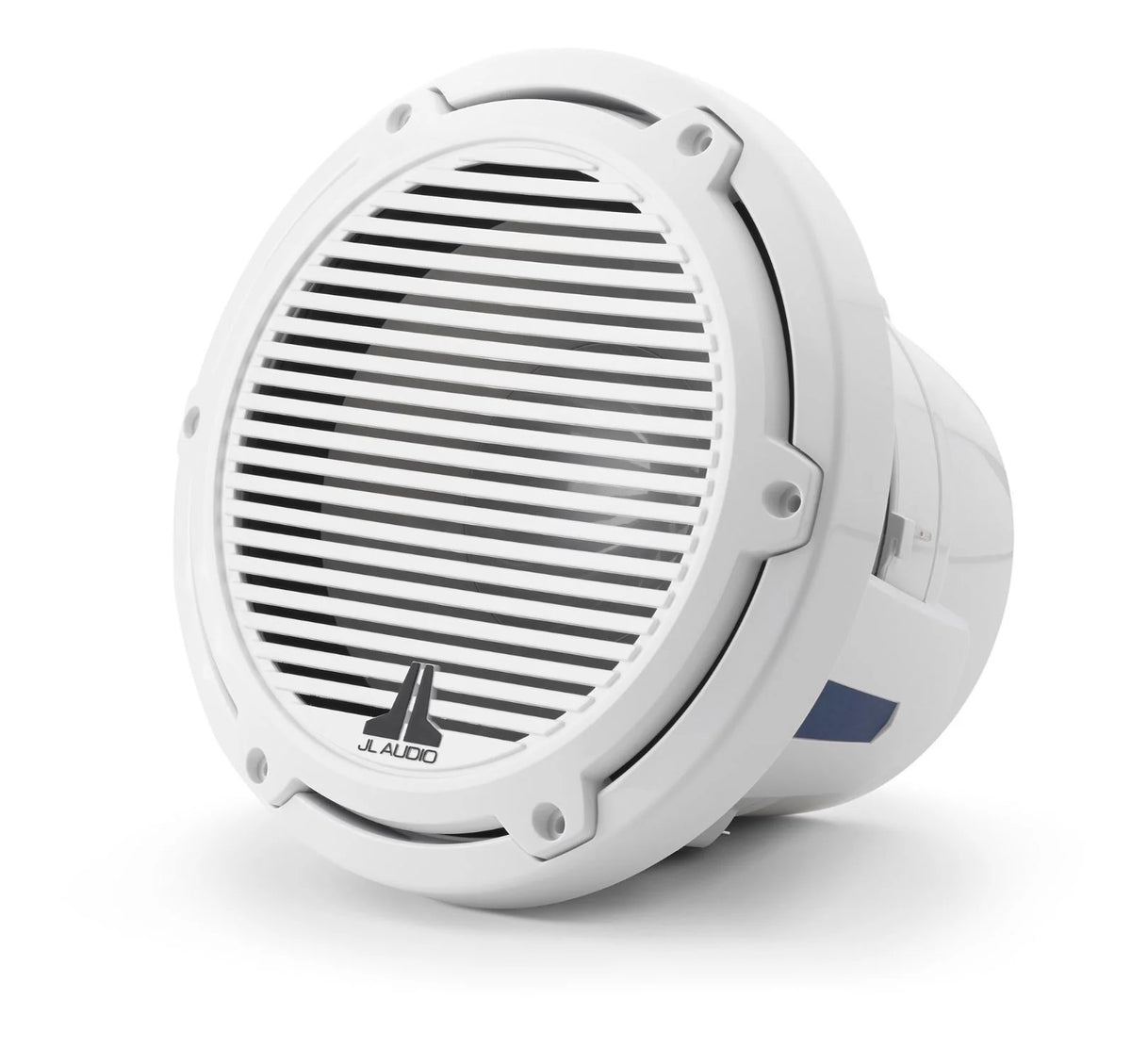

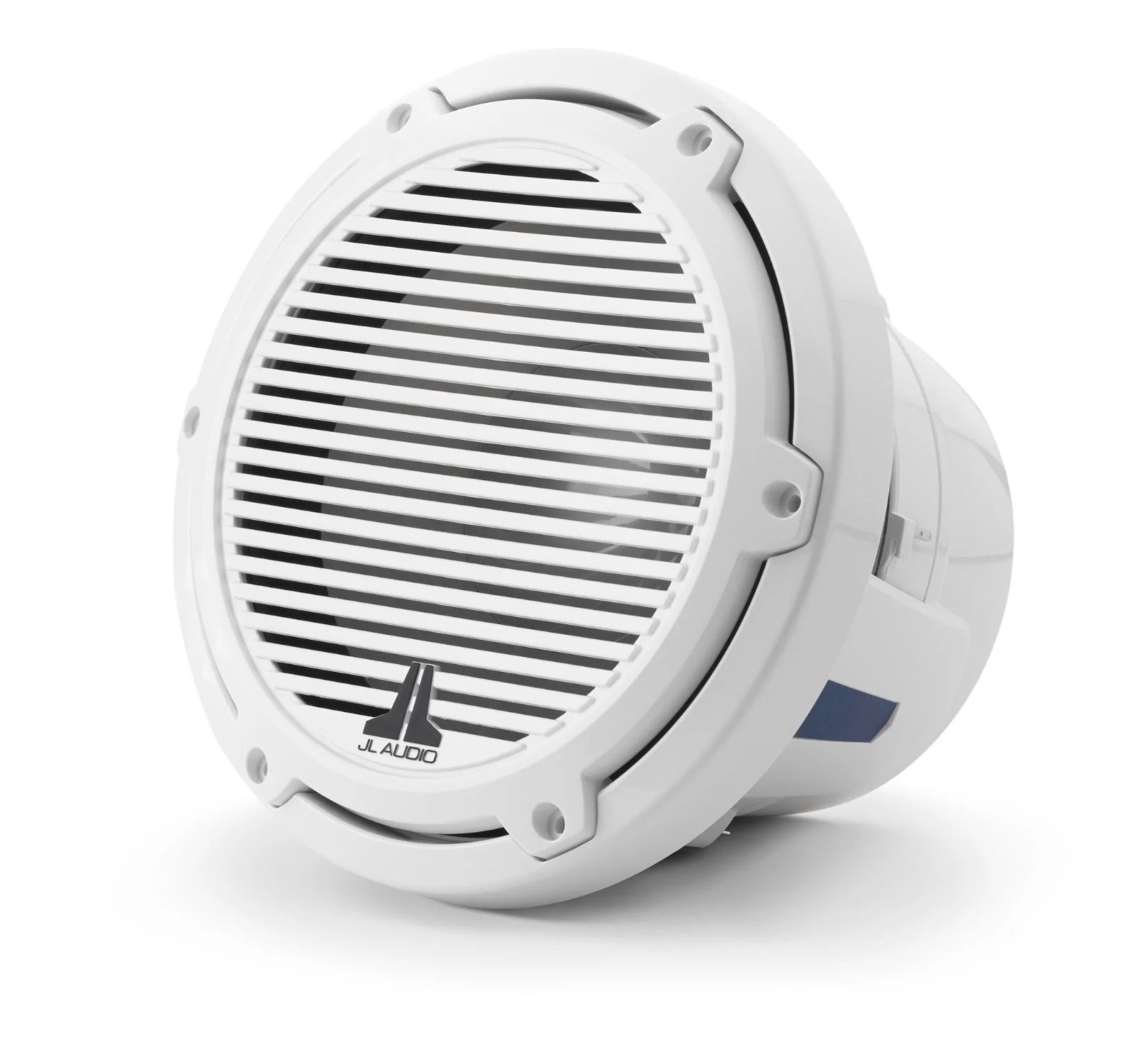

M6 8-inch Marine Subwoofer for Infinite-Baffle Use (200 W, 4 ohms) - Gloss White Trim Ring, Gloss White Classic Grille

With appropriate system setup, the addition of a subwoofer allows your smaller main speakers to be free of the burden of reproducing low frequencies. This allows your whole system to play louder and to sound cleaner at all listening levels.

Purpose-engineered and built for real marine duty, the M6 infinite-baffle woofers are designed to operate without a dedicated enclosure. Long excursion capability and rugged suspension systems help produce deep, powerful bass response that will transform your boat's audio system.

The M6-8IB is best used with amplifier power in the 50W - 200W range and is optimized to operate with a large volume of air behind it (at least 1.5 cu. ft. / 42.5 l). If you prefer to use a dedicated enclosure, refer to one of the suggested designs located in the Specifications section for optimum performance.

Like all JL Audio marine speakers, this driver is built to withstand a real saltwater marine environment and deliver years of listening enjoyment.

Production of all M6 loudspeakers takes place in JL Audio’s Miramar, Florida factory, using global components and materials.

Sold individually.

USA Limited Warranty: Two (2) years from the original date of purchase.

Continuous Power Handling (RMS)
200 W

Nominal Impedance (Znom)
4 ohms

Physical Specifications

Nominal Diameter
8.0 in / 200 mm

Overall Diameter
8.80 in / 224 mm

Bolt Hole Circle Diameter
7.97 in / 202 mm

Frontal Grille Protrusion
1.45 in / 37 mm

Mounting Hole Diameter
7.375 in / 187 mm

Mounting Depth
5.00 in / 127 mm

Driver Displacement
0.033 cu ft / 0.93 L

Net Weight
8.70 lb / 3.90 kg

Parameters

Free Air Resonance (Fs)
54.92 Hz

Electrical "Q" (Qes)
0.852

Mechanical "Q" (Qms)
10.314

Total Speaker "Q" (Qts)
0.787

Equivalent Compliance (Vas)
0.54 cu ft / 15.29 L

One-Way Linear Excursion (Xmax)*
0.53 in / 14 mm

Reference Efficiency (no)
0.28%

Efficiency (1 W / 1 m)**
86.7 dB SPL

Effective Piston Area (Sd)
35.15 sq in / 0.0227 sq m

DC Resistance (Re)
2.993 ohms

* Xmax specifications are derived via one-way voice coil overhang method with no correction factors applied.
** Efficiency (1 W / 1 m) is not an accurate indicator of a subwoofer’s output capability and should not be used as a comparison to other subwoofers to determine which one is "louder".
Sealed Enclosure Specifications

Wall Thickness
0.75 in / 19 mm

Front Baffle Thickness
0.75 in / 19 mm

External Width (W)
16 in / 406 mm

External Height (H)
16 in / 406 mm

External Depth (D)
18.25 in / 464 mm

F3
51.78 Hz

Fc
61.89 Hz

Qtc
0.8869

Ported Enclosure Specifications

Wall Thickness
0.75 in / 19 mm

Front Baffle Thickness
0.75 in / 19 mm

Volume (net int.)
1.50 cu ft / 42.5 L

External Width (W)
16 in / 406 mm

External Height (H)
16 in / 406 mm

External Depth (D)
15.125 in / 384 mm

Internal Port Diameter (ID)
4 in / 102 mm

Port Length (L)
3.50 in / 343 mm

Tuning Frequency (Fb)
37 Hz

F3
31.26 Hz
