JL Audio M6 7.7in Coaxial Speakers White Sport Grille with RGB LED - 010-03074-00

JL Audio M6 7.7in Coaxial Speakers White Sport Grille with RGB LED

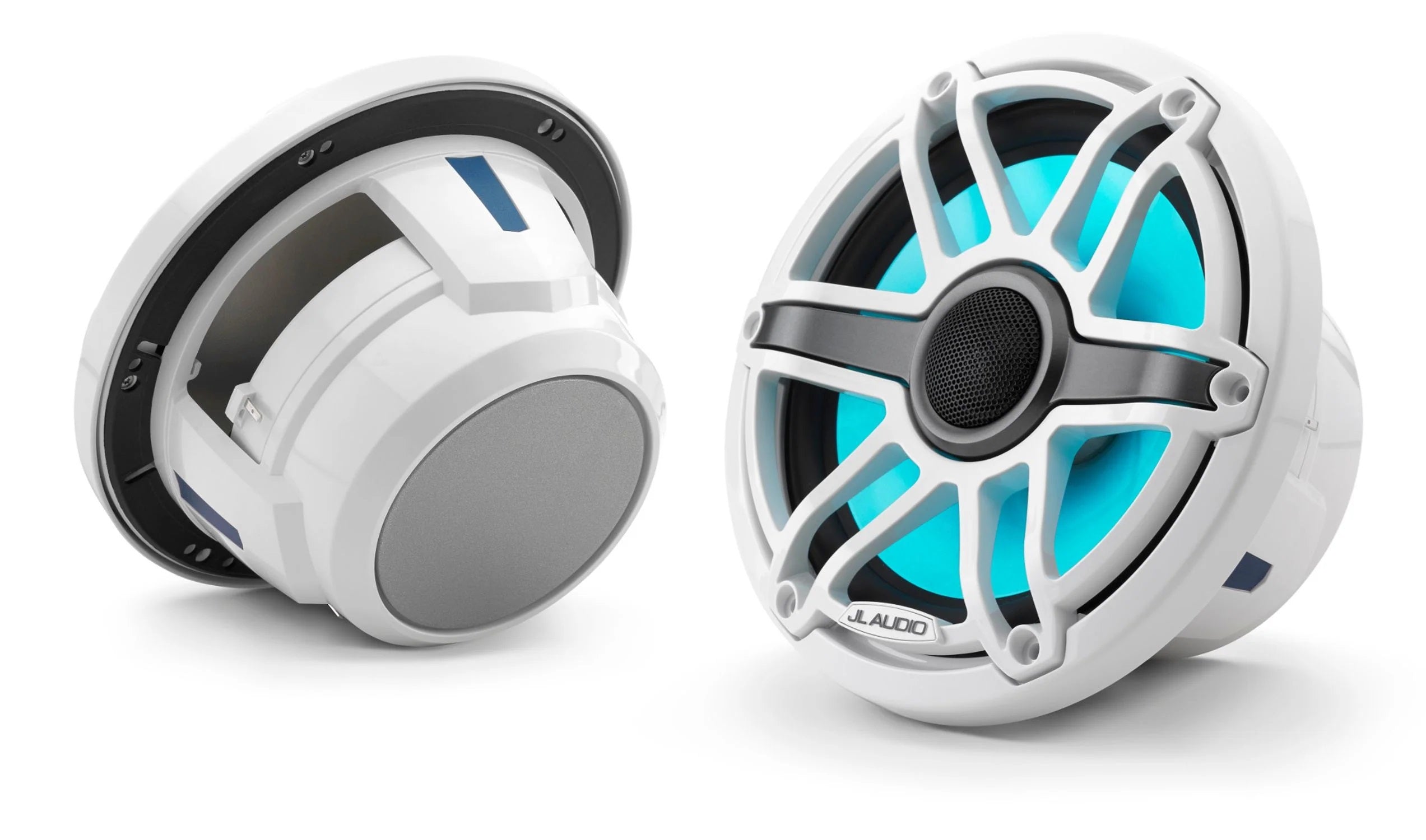

M6 7.7-inch Marine Coaxial Speakers with Transflective™ LED Lighting (100 W, 4 ohms) - Gloss White Trim Ring, Gloss White Sport Grille

Purpose-engineered and built for real marine duty, M6 coaxial systems deliver maximum audio performance in any open-air boating environment, with the added visual impact of JL Audio’s Transflective™ RGB LED lighting.

The oversized 7.7-inch design of the M6-770X coaxial results in increased efficiency (more output for a given amount of power). Combine that advantage with long excursion and excellent power handling and you have a speaker system truly capable of playing loud and clear in a powerboat at speed. The woofer element is optimized to operate with a large volume of air behind it (at least 2 cu. ft. / 57 l). Operating this coaxial system in less space will compromise its low frequency performance.

A 1-inch pure silk dome tweeter, specially treated to withstand the marine environment, handles the high-frequency duties. You will appreciate the clean, articulate high-frequency response of the M6 dome tweeter, especially at higher volume levels.

A multi-order, true 2-way passive crossover is concealed within the woofer chassis, shielded from vibration and corrosion. Also included, is an automatic, solid-state tweeter protection circuit to minimize the possibility of tweeter failure.

Although M6-770X Coaxial Systems can be used with as little as 40 W per channel, for best audio performance we recommend amplifiers capable of between 40-200 W of continuous power per channel. The patent-pending Transflective™ RGB LED technology emits a smooth lighting effect through the woofer cone, with a choice of several lighting colors. Add an optional RGB controller to create thousands of color variations.

Production of all M6 loudspeakers takes place in JL Audio’s Miramar, Florida factory, using global components and materials.

Sold as a pair.

USA Limited Warranty: Two (2) years from the original date of purchase.

Continuous Power Handling (RMS)
100 W

Recommended Amplifier Power (RMS)
40 - 200 W / Ch.

System Efficiency
91.0 dB @ 1 W / 1 m

System Nominal Impedance
4 ohms

System Frequency Response
45 Hz - 25 KHz ± 3 dB

Coaxial Physical Specifications

Frame Outer Diameter
7.70 in / 196 mm

Bolt Hole Circle Diameter
6.92 in / 176 mm

Frontal Grille Protrusion
1.08 in. / 27 mm

Mounting Hole Diameter
6.25 in / 159 mm

Mounting Depth
3.32 in. / 84 mm
