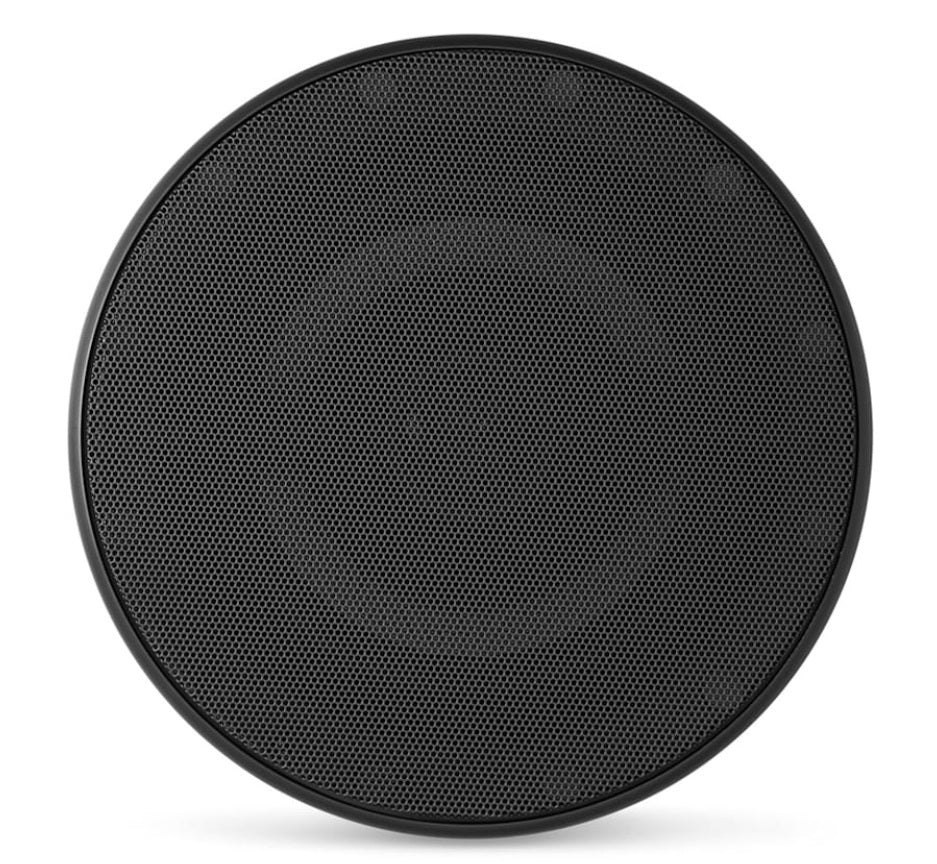

JL Audio M6 7.7in Coaxial Speakers Black LUXe Grille Single Speaker

JL Audio M6 7.7in Coaxial Speakers Black LUXe Grille Single Speaker

M6-770X-L-SbSb-Single

• DMA-OPTIMIZED WOOFERS: Proprietary motor, suspension and cone modeling systems are employed, resulting in reduced distortion, improved transient performance and stellar bass sound quality.


• MATCHING SILK DOME TWEETERS: Precisely tuned tweeters, uniquely sized for each woofer’s diameter, produce sparkling detail and excellent off-axis response for balanced coverage in the entire listening area.


• ADVANCED FILTER NETWORKS: Each woofer chassis houses a multi-order, true two-way crossover optimized for each speaker size and electronic tweeter protection circuit to minimize the possibility of tweeter failure.


• POWERFULLY EFFICIENT: M6 marine speakers are designed to benefit from operation with quality amplification.


• REAL MARINE DUTY: For long-term use, all models are built to withstand saltwater marine environments and deliver years of listening enjoyment.

Featuring a long-excursion woofer design paired with a suspended tweeter, M6 marine speakers are designed to yield unmatched frequency response and linear performance at all listening levels.

Size
7.7 in

Color
Black

Speaker type
Coaxial

Continuous power handling (RMS)
100 W

Sensitivity (SPL @ 1 W/1 m)
91.0 dB

Frequency response (+/- 3 dB)
45 Hz-25 kHz

Nominal impedance
4 Ohm

Recommended amplifier power (RMS)
40-200 W/Channel

Cone material
Injection-molded, mica-filled polypropylene

Tweeter type
Silk Dome

Tweeter size
1" (25 mm)

Warranty
3 years

Speaker connections
Spade Connectors

Mounting Dimensions

Mounting depth clearance
4.26" (108 mm)

Frontal grille protrusion
0.38" (10 mm)

Mounting hole
7.50" (191 mm)

Bolt hole circle
8.18" (208 mm)

What's in the Box:

• Marine coaxial loudspeaker


• Six stainless steel mounting screws


• Six stainless steel screws washers


• Grille removal tool


• Mounting template
