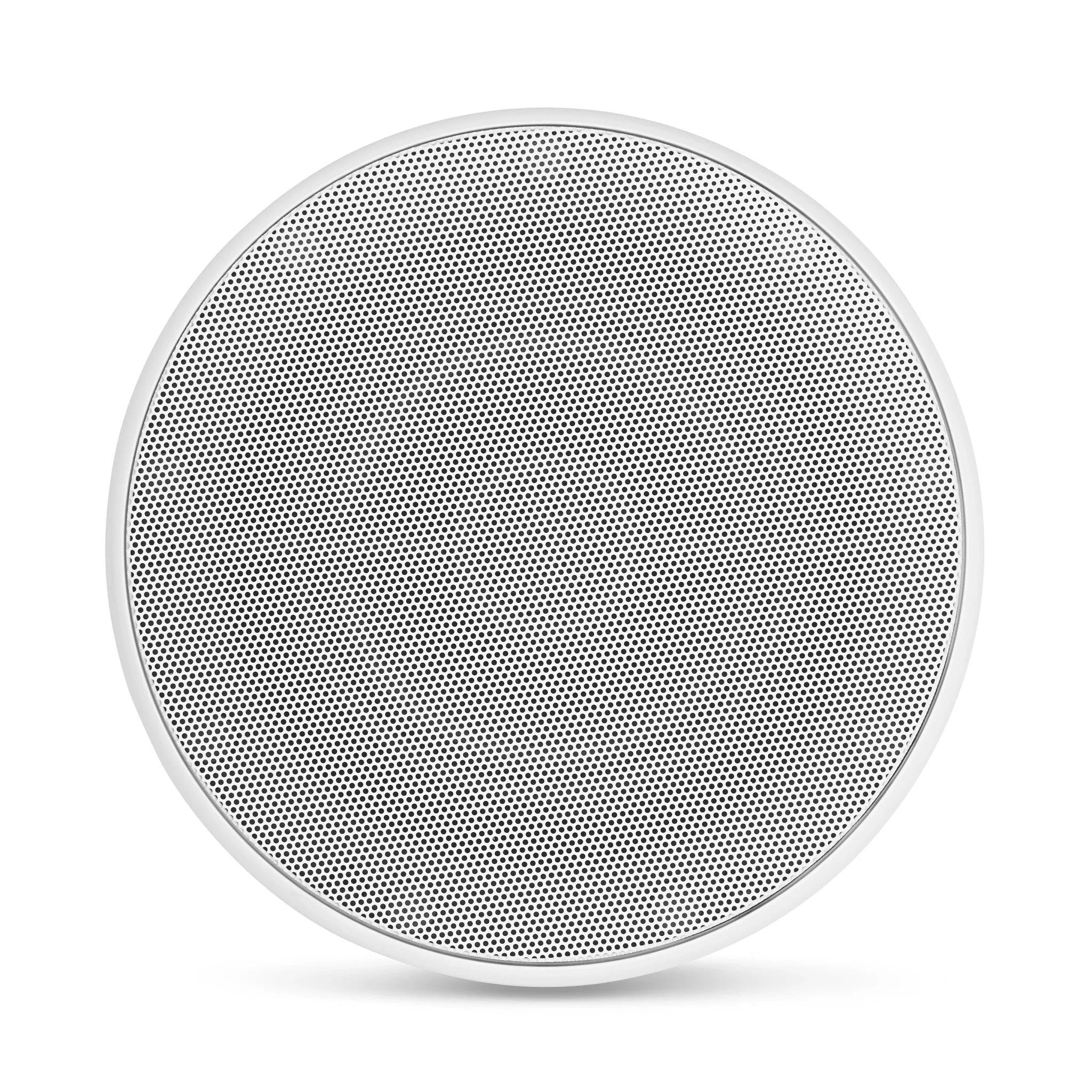

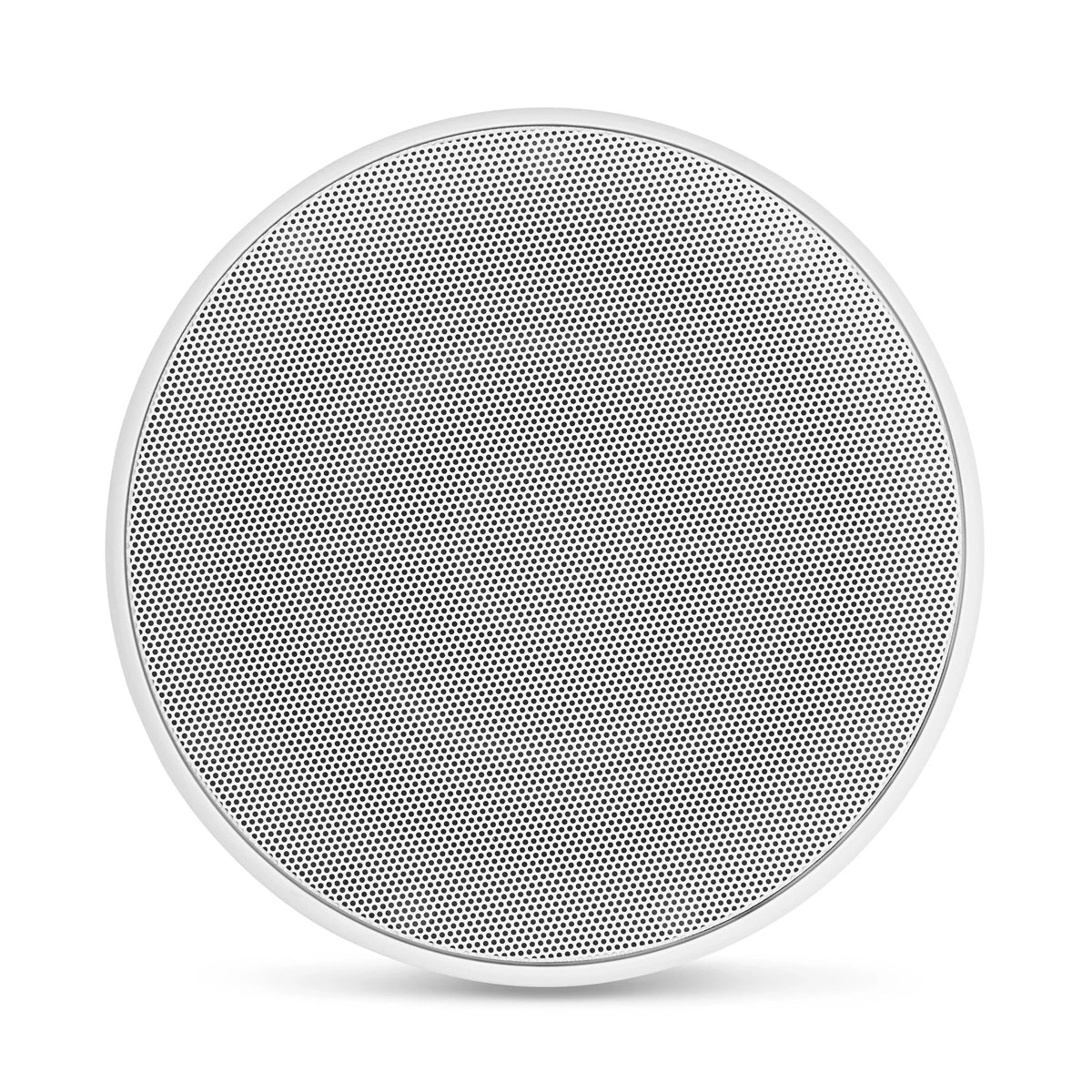

JL Audio M6 6.5in Speaker White LUXe Grille - 010-03912-00

JL Audio M6 6.5in Speaker White LUXe Grille M6-650X-L-GwSw-Single

M6 6.5-inch Marine Coaxial Speaker (75 W, 4 Ohm) - White Trim Ring, White Luxe Grille

M6 Luxe speakers are purpose-built to deliver top-flight audio performance and durability in luxury marine installations. Each model is outfitted with a low-profile mounting bezel with integrated tweeter bridge and a fine mesh grille for minimal protrusion into cabin space. The result is a discreet visual appearance able to blend in with the finest vessel surroundings.

A DMA-optimized, long excursion woofer design ensures excellent power handling and a 0.8-inch pure silk dome tweeter, specially treated to withstand harsh salt-water environments, produces clean, articulate high-frequency response, especially at higher volume levels.

A multi-order, true 2-way passive crossover is concealed within the woofer chassis, shielded from vibration and corrosion. Also included, is an automatic, solid-state tweeter protection circuit to minimize the possibility of tweeter failure.

Although M6-650X Coaxial Systems can be used with as little as 25 W per channel, for best audio performance we recommend amplifiers capable of between 75-150 W of continuous power per channel.

Production of all M6 loudspeakers takes place in JL Audio’s Miramar, Florida factory, using global components and materials.vvvv

USA Limited Warranty: Two (2) years from the original date of purchase

Sold individually.

Continuous Power Handling (RMS)
75 W

Recommended Amplifier Power (RMS)
25 - 150 W / Ch.

System Efficiency
89.5 dB @ 1 W / 1 m

System Nominal Impedance
4 Ohms

System Frequency Response
55 Hz - 25 KHz ± 3 dB

Coaxial Physical Specifications

Frame Outer Diameter
8.34 in / 212 mm

Bolt Hole Circle Diameter
7.39 in / 188 mm

Frontal Grille Protrusion measured from mounting surface
0.37 in / 9 mm

Mounting Hole Diameter
6.75 in / 172 mm

Mounting Depth
3.87 in. / 98 mm
