JL Audio AP200/BT Amplifier with Bluetooth and Remote - 010-03431-00

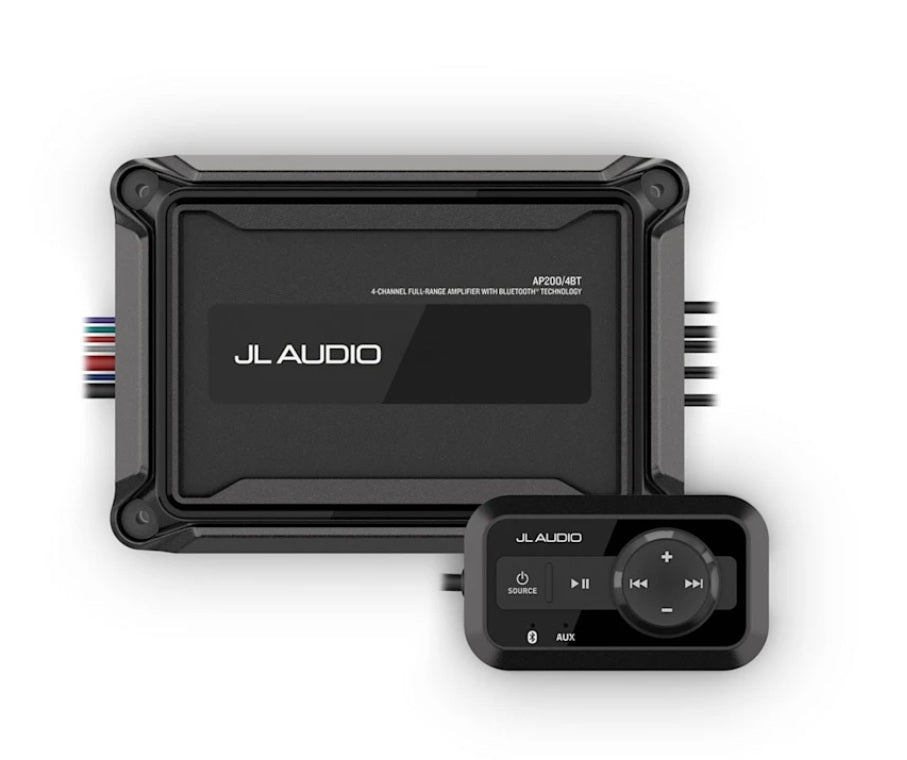

JL Audio AP200/BT Amplifier with Bluetooth and Remote

• CLASS-D AMPLIFIER TECHNOLOGY: The highly efficient Class-D design provides lower battery drain with a higher output than Class-AB amplifiers. This delivers increased power to the connected speakers/subwoofers for an enhanced level of audio performance.


• STREAM ON THE GO: This amplifier pairs with your compatible smartphone for seamless audio streaming and includes a wired remote that can be flush-, surface- or bar-mounted. Its compact size makes it a perfect addition to your small boat, jet ski or overland vehicle.


• RUGGED DESIGN: The included remote is IPX7-rated and the amplifier is built to IP67 standards (excluding cables) to withstand abuse in harsh marine environments.

POWER THE MOMENT: With this tough and ultracompact 4 channel amplifier featuring Bluetooth(R) technology, you can enjoy every note from every part of your boat.

Physical dimensions (Height)
1.85in (47 mm)

Physical dimensions (Width)
7.28in (185 mm)

Physical dimensions (Depth)
4.90in (125 mm)

Operating voltage
9-16 VDC

Water and dust rating
IP67

Operating temperature range
4 deg to 149 deg F (-20 deg to 65 deg C)

Warranty
3 years

Audio

Amplifier class
Class D

Rated continuous (RMS) power (14.4 V input @ 4 Ohm less than 1% THD)
40 W x 4/100 W x 2 (Bridged)

Rated continuous (RMS) power (14.4 V input @ 2 Ohm less than 1% THD)
50 W x 4

Signal-to-Noise Ratio, referred to 1 W (A-weighted, 20 Hz - 20 kHz noise bandwidth): Analog Inputs
Greater than 70 dB

Frequency response (+0, -1dB)
20 Hz-20 kHz

Input voltage range @ RCA inputs
Switchable from 200 mV-2 V RMS (Low) to 800 mV-8 V RMS (High)

Current consumption (Standby)
Less than 1mA

Current consumption (Idle)
Less than 700-750mA

Fuse rating
35A

Recommended fuse type(s)
AFS, AGU or MaxiFuse

Min. copper power/Ground wire gauge
4 AWG wire

Protection circuits
Input under/over voltage
Over temperature
Output short circuit

What's in the Box:

• 4 channel amplifier with BLUETOOTH technology


• Remote controller


• Surface mounting cup with four mounting screws


• Four amplifier mounting screws


• Flush mounting kits


• Flush mounting template for the remote controller


• Waterproof gasket for the remote controller


• Documentation
