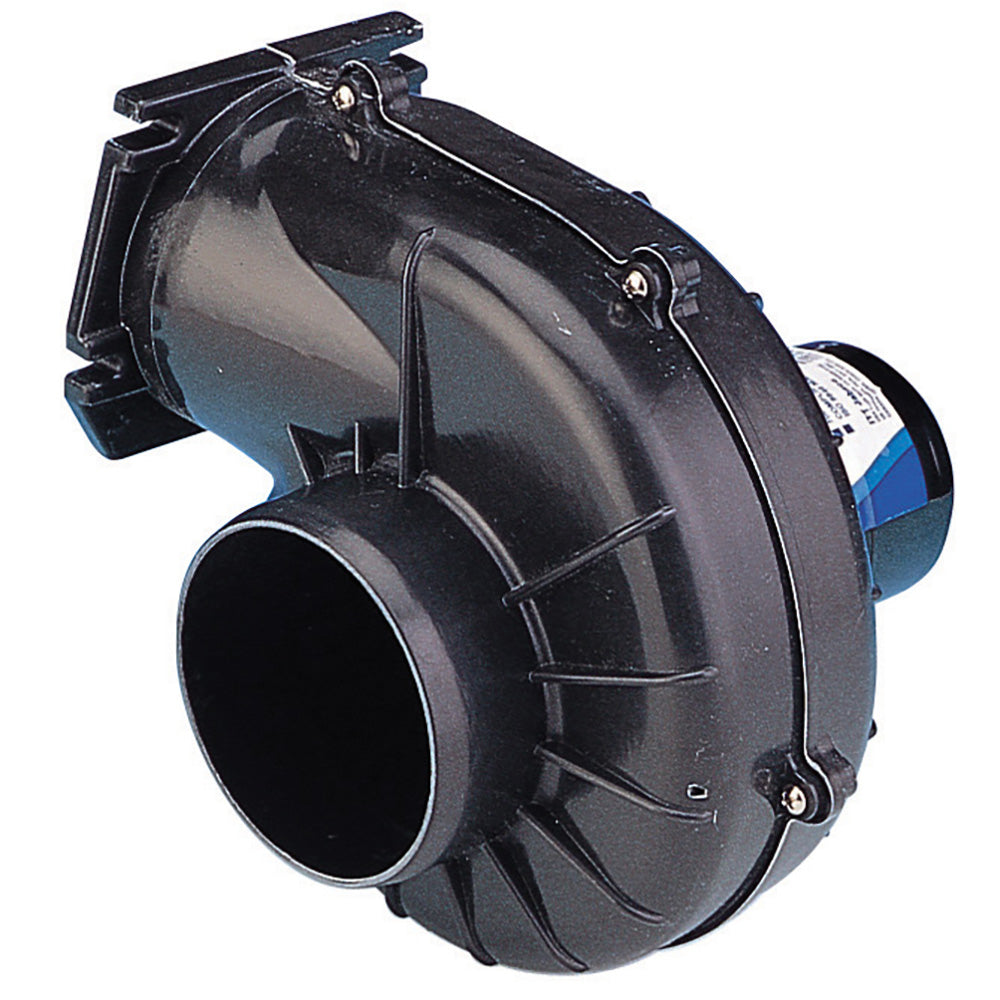

Jabsco 4-Inch Continuous Duty Flangemount Blower - 115V, 250 CFM for Ventilation and Air Circulation - 36760-0115

4 Continuous Duty Flangemount Blower - 115V, 250 CFM

The Jabsco continuous duty 4-inch flange-mount blower, with a 115 Volt Motor. This is rated for 250 CFM. The Jabsco AC blowers are ideal for ventilating equipment areas. They may also be used for engine room ventilation on vessels with diesel-powered engines only. The blower is also suitable for general air circulation when AC power consumption is preferred. Flangemount Blowers are generally mounted with the discharge port fastened directly to a flat external surface to minimize required ducting. The inlet port can then be connected with a duct hose to the area requiring ventilation. Standard models are rated for intermittent service, 15 minutes maximum. These commercial-duty blowers are rated for continuous service. The blower housing flange should be mounted on a flat bulkhead surface. Selection of a dry, cool location will prolong motor life.

This blower is not ignition-protected. Do not use to exhaust flammable vapors such as gasoline fumes, or in areas that may contain flammable vapors.

Specifications:

• Rated for 250 CFM
• 115V
• Extended Life Induction Motor
• Tough Reinforced Thermoset Plastic Housing
• Continuous-Duty Motor with Thermal Overload Protection
• Slip-on Inlet Ducting Connection
• Efficient High Volume Air Flow
• Low Current Draw
• Corrosion-Resistant Materials Throughout

The Jabsco 36760-0115 4-inch flange-mount blower offers reliable continuous-duty performance suitable for various ventilation applications. Powered by a 115V extended life induction motor, this blower delivers an impressive 250 cubic feet per minute (CFM) airflow, making it ideal for ventilating equipment rooms, engine compartments on diesel-powered vessels, and general air circulation where AC power is available. Its robust construction features a reinforced thermoset plastic housing designed to withstand harsh environments and resist corrosion, ensuring long-term durability and low maintenance requirements. The blower's flange mounting allows for easy installation on flat surfaces, with the discharge port connecting directly to ducting to minimize space and ducting needs. The slip-on inlet ducting connection simplifies setup, enabling quick and secure attachment to the ventilation area. Equipped with thermal overload protection, the blower's continuous-duty motor maintains performance without overheating, even during extended operation. Its low current draw and high airflow efficiency contribute to energy savings and effective ventilation in demanding industrial or marine environments. Please note that this blower is not ignition-protected and should not be used in areas with flammable vapors such as gasoline fumes. For optimal longevity, install the blower in a dry, cool location, and ensure the mounting surface is flat to secure the flange properly. Whether for ventilating engine rooms, equipment spaces, or circulating air in commercial settings, the Jabsco 4-inch flange-mount blower provides dependable, high-volume airflow with durable construction and simple installation features.

Features:

• Rated for 250 CFM airflow for effective ventilation

• 115V power supply suitable for standard electrical setups

• Extended life induction motor for long-term reliability

• Reinforced thermoset plastic housing resistant to corrosion

• Continuous-duty operation with thermal overload protection

• Slip-on inlet duct connection for easy installation

• High volume airflow with efficient performance

• Low electrical current draw for energy efficiency

• Designed for mounting on flat surfaces with flange attachment
