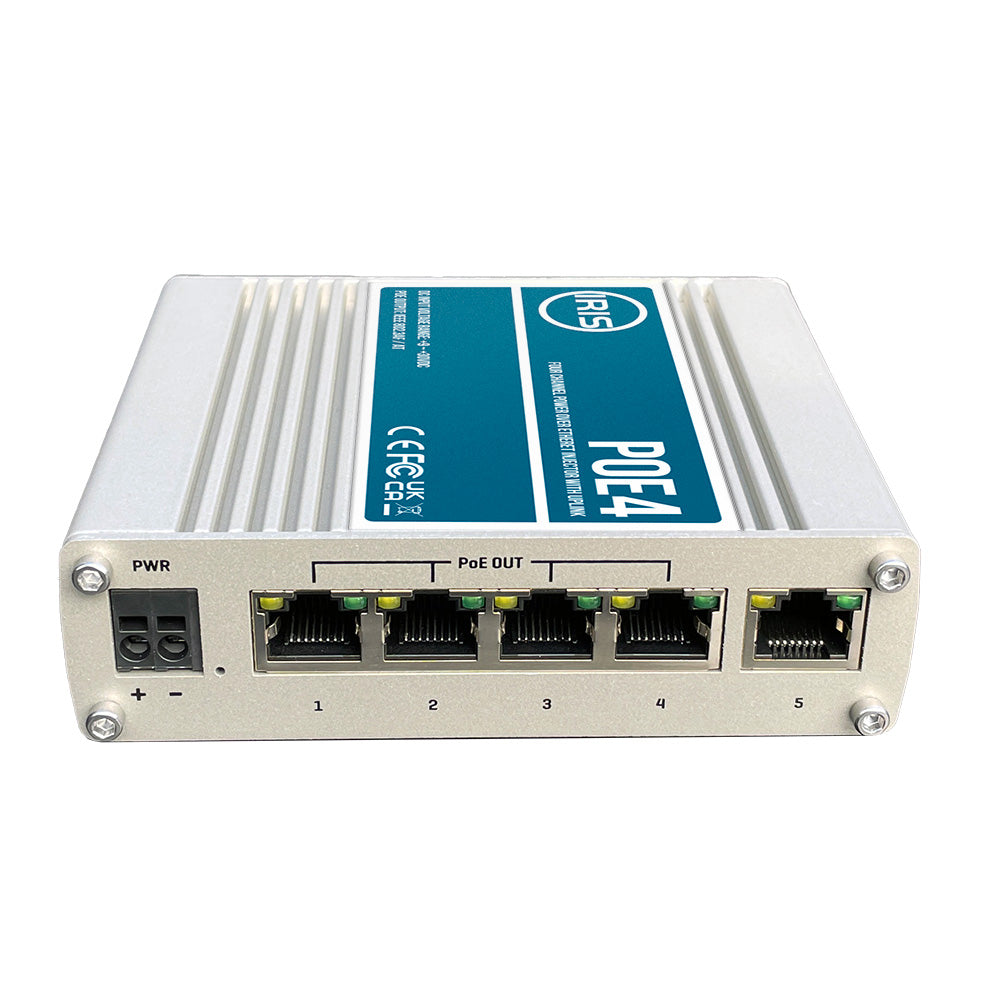

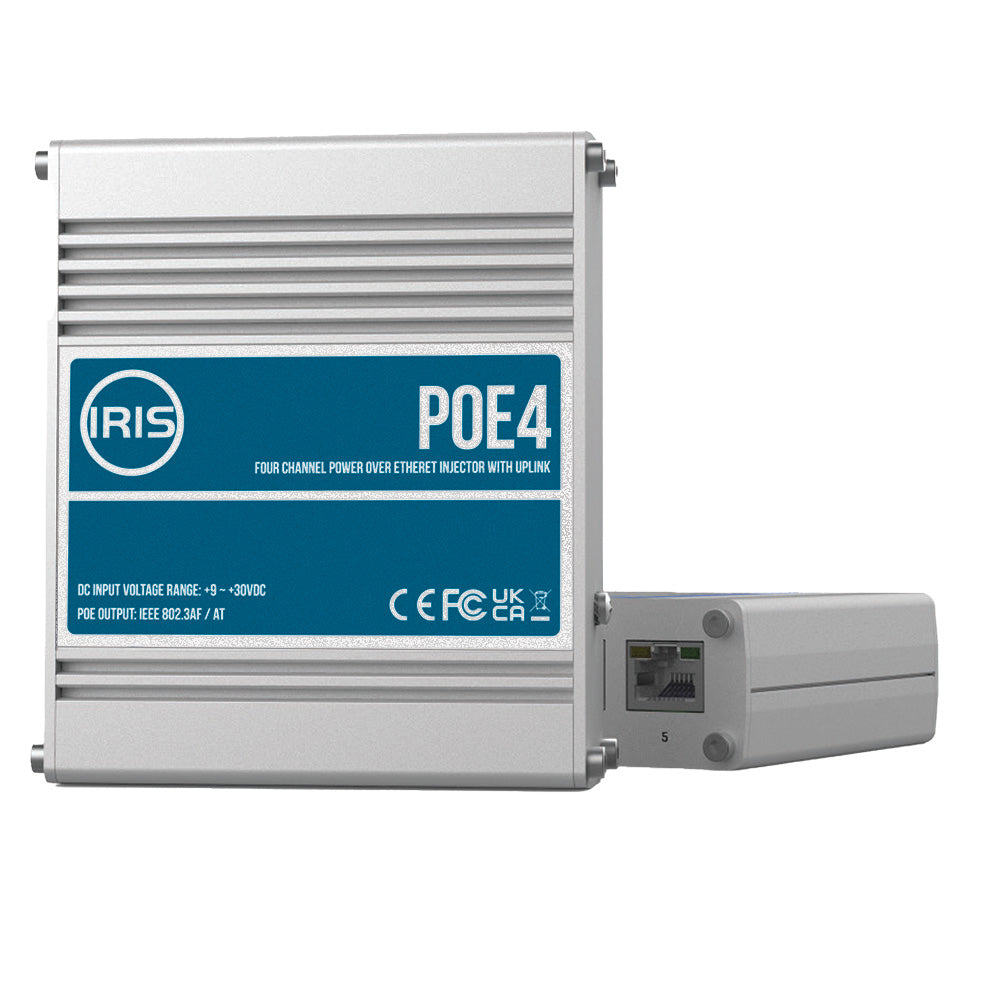

Iris Innovations POE4V2 Four Channel Uplink Power Over Ethernet Switch - IEEE802.3af & 3at Compliant - POE4V2

Four Channel Uplink Power Over Ethernet Switch - IEEE802.3af & 3at Compliant - 9-30VDC Input - 48VDC Output

The new PoE4v2 from Iris Innovations is a four-channel plus uplink power over Ethernet switch that operates over a wide DC input voltage range of 930VDC making it perfect for powering IEEE802.3af/3at devices from battery sources such as boats and vehicles.

The PoE4v2 outputs 48 VDC to your PoE device with a power budget of 60W in total and up to 30W per port, providing power to up to 4 devices at 15W each, 2 devices at 30W each, or 1 device at 30W, and further 2 devices at 15W.

The unit features a passive uplink port to enable connections to other network switch equipment, routers, or modems.

The PoE4v2 simplifies your installation as only a single network cable is required to connect and power your devices, reducing cost and adding convenience.

Features:

• Compact and robust housing


• Wide input voltage range of 930VDC


• Perfect for boats and vehicles


• 60W power budget


• IEEE802.3af / 3at compliant


• Up to 30W per channel


• Plug and play operation - no configuration required


• 48VDC PoE output voltage to your devices


• Provides power to devices up to a 100-meter cable length


• Simplifies installations

Specifications:

• Weight & Dimensions: 0.350 Kg / 115 mm x 32 mm x 95 mm


• Material: Aluminium, soft anodized


• PoE Ports / Standard: Ports 14 IEEE802.3af / 802.3at + 1 Uplink Port (non PoE)


• Total PoE Budget: 60W across 4 PoE Ports


• Maximum Cable Length: 100 Meters


• Approvals / Standards CE, UKCA, FCC, IC, REACH, RoHS, WEEE / EN IEC 62368:12020+A11:2020 EN60945:2002 Section 9 & 10


• Input Voltage Range: 9 30 VDC


• Output Voltage: 48 VDC


• Power Consumption Idle: 0.8W / Max: 2.2W / PoE Max: 106W


• Environmental: IP30 - Install in a dry dust free environment. Do not expose to moisture.

The Iris Innovations POE4V2 is a versatile four-channel uplink Power Over Ethernet switch designed to power your devices efficiently. With a wide DC input voltage range of 9-30VDC, this switch is perfect for powering IEEE802.3af/3at compliant devices from battery sources like boats and vehicles. The POE4V2 delivers a reliable 48VDC output, providing a total power budget of 60W across its four ports, ensuring your devices stay powered up whether you are at home or on the go. Simplifying your installation process, it only requires a single network cable to connect and power multiple devices, making it a convenient choice for any setup.

Features:
* Compact and robust housing for durability
* Wide input voltage range of 9-30VDC for versatile applications
* Ideal for use in boats and vehicles to power devices
* Total power budget of 60W across four PoE ports
* Compliant with IEEE802.3af and 3at standards
* Delivers up to 30W per channel for efficient power distribution
* Plug and play operation with no configuration required
* Outputs 48VDC PoE voltage to your devices for reliable performance
* Supports power delivery over cable lengths up to 100 meters
* Simplifies installations by reducing the number of cables needed
