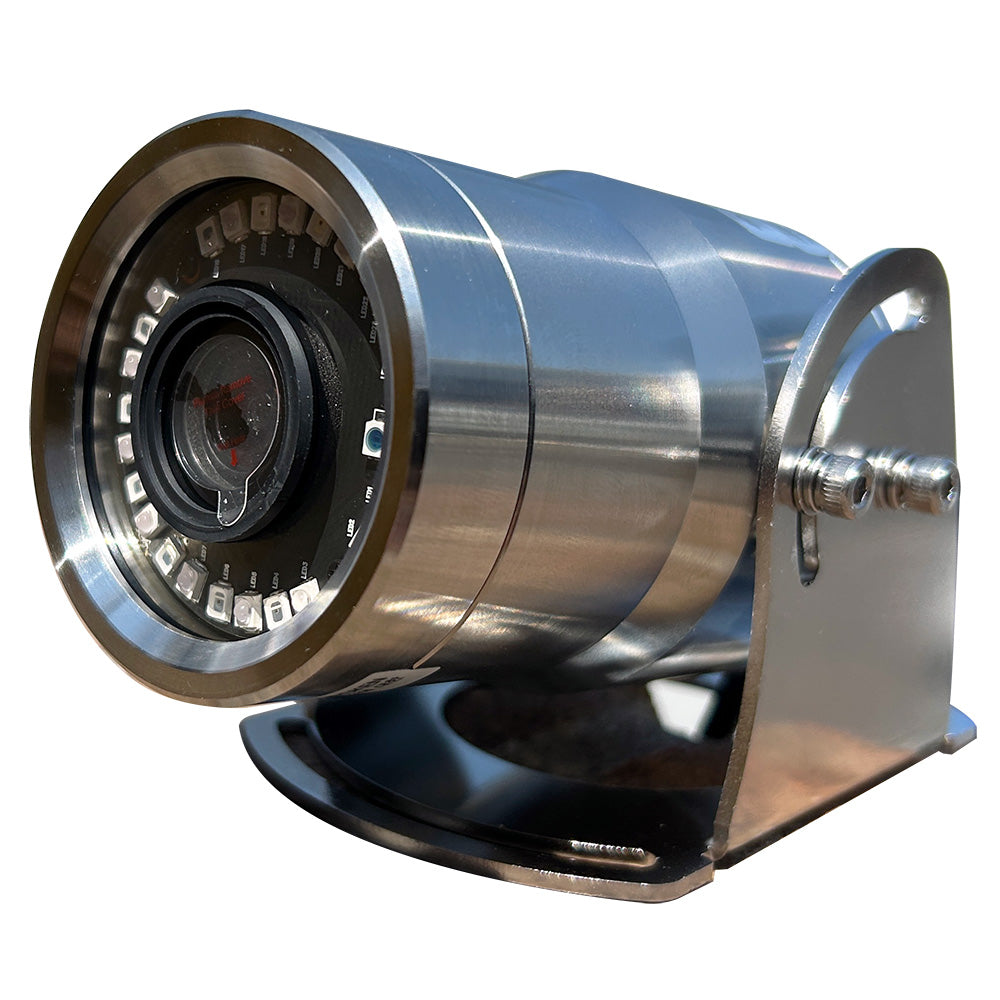

Iris Innovations IRIS490 5MP Hi-Def Marine IP Stainless Steel Bullet Camera - 3.6mm Lens

5MP Hi-Def Marine IP Stainless Steel Bullet Camera - 3.6mm Lens

The IRIS490 is a high-definition 2MP IP camera directly compatible with Raymarine chart plotters (running LH2 / LH3 software), Furuno MFDs running TimeZero v4.1, and PC-based chart-plotter systems.

The 490’s 316 stainless steel housing provides the ultimate protection in the harsh marine environment and is, therefore, the perfect solution for deck monitoring aboard workboats, fishing vessels, and passenger's vessels, while fitting in equally well with the high-end aesthetic of luxury vessels and mega yachts.

Equipped with high-power infrared LEDs, the 490 provides high-definition video coverage even at night to a range of 20 meters.

For sub-surface surveillance, the 490 can also be supplied with fully submersible connections.

Whether you need a high-quality and rugged camera as part of your onboard surveillance system, for engine room, deck, and companionway monitoring, or as a robust and stylish docking or backup camera, the IRIS490 range of cameras is the perfect solution, favored by luxury boat owners and commercial vessel operators alike.

Features:

• 3.6mm lens 80-degree horizontal field of view


• Extremely robust for harsh environments


• Machined from marine-grade 316 stainless steel


• High-polish finish


• High-definition 1920×1080 resolution


• Built-in infrared illumination (20m range)


• Submersible Option Available


• PoE IEEE802.3af (IRIS490 Model)


• Compatible with Raymarine/Axiom (Lighthouse 2 and higher) and Furuno TimeZero 4.1


• Deficient power consumption


• IP66 environmental protection

Applications:

• Workboats & commercial shipping


• Luxury motor yachts


• Fishing & sports fishing


• Ferry boats & passenger's vessels


• Law enforcement & emergency services


• Rapid deployment applications


• Vehicle & transport applications

Specifications:

• Lens (millimeter): 3.6mm


• Horizontal Field of View: 80-degree HFOV


• Sensor (inch): Sensor 1/4" CMOS Sensor


• Resolution: CVBS: Variable - 1920x1080P (2MP) Max


• Interface: RJ45 10/100 Base T Ethernet


• Video Processing: H.264 Codec / Dual Stream


• Protocols/Video Format: TCP/UDP/HTTP/Multicast/UPnP/NTP/RTSP/ONVIF


• Onvif: Profile S v2.4


• Bitrate: VBR / CBR 32kbps 8Mbps


• Illumination: 2 x High Power Infra Re 850nm - 20 Meter Range


• Lens/Field of View: 3.6mm Standard (80-degree HFOV)


• Mirroring: Horizontal & Vertical - Configure via Browser


• Automatic Gain Control: Supported / multiple levels


• Compatibility: Raymarine / Axiom (LH2 or higher), Navico MFDs, inc Simrad / Lowrance, B & G, PC-based systems, MFDs with


• digital (HDMI / DVI) input, MFDs via IRIS NVR/HVR, IE Browser, CMAC Systems


• Operating Temperature: -30 + 60-degrees C


• Connections: Water Resistant RJ45 Socket / DC Power Socket / Female BNC (1090)


• Material: 316 Stainless Steel


• Power: PoE IEEE802.3af / 12VDC <200mA Max.


• Weight & Dimensions: 1.170Kg / 126mm x 64mm


• Environmental: IP66 Standard / IP68 Submersible Option Available

The Iris Innovations IRIS490 5MP Hi-Def Marine IP Stainless Steel Bullet Camera is a robust surveillance solution tailored for the marine environment. Crafted from marine-grade 316 stainless steel, this camera ensures durability and resistance against harsh weather conditions. With a 3.6mm lens that provides an 80-degree horizontal field of view, it is perfect for monitoring decks, engine rooms, and companionways on workboats, fishing vessels, and luxury yachts. Its high-polish finish complements the aesthetics of high-end vessels while offering reliable performance.

Equipped with built-in infrared illumination, the IRIS490 delivers high-definition video coverage even in low-light conditions, with an impressive range of up to 20 meters. The camera is compatible with Raymarine and Furuno systems, making it an excellent addition to any onboard surveillance setup. Whether for commercial shipping or recreational boating, the IRIS490 is designed to meet the demands of both luxury and rugged applications, ensuring peace of mind wherever you navigate.

Features:
* 3.6mm lens with an 80-degree horizontal field of view
* Extremely robust construction for harsh marine environments
* Machined from marine-grade 316 stainless steel for durability
* High-polish finish adds to aesthetic appeal
* High-definition 1920x1080 resolution for clear video
* Built-in infrared illumination with a 20-meter range for nighttime visibility
* Optional fully submersible connections for diverse applications
* Power over Ethernet (PoE) compatibility for easy installation
* Seamless integration with Raymarine Axiom (Lighthouse 2 and higher) and Furuno TimeZero 4.1 systems
* Low power consumption for efficient operation
* IP66 environmental protection rating for resilience
