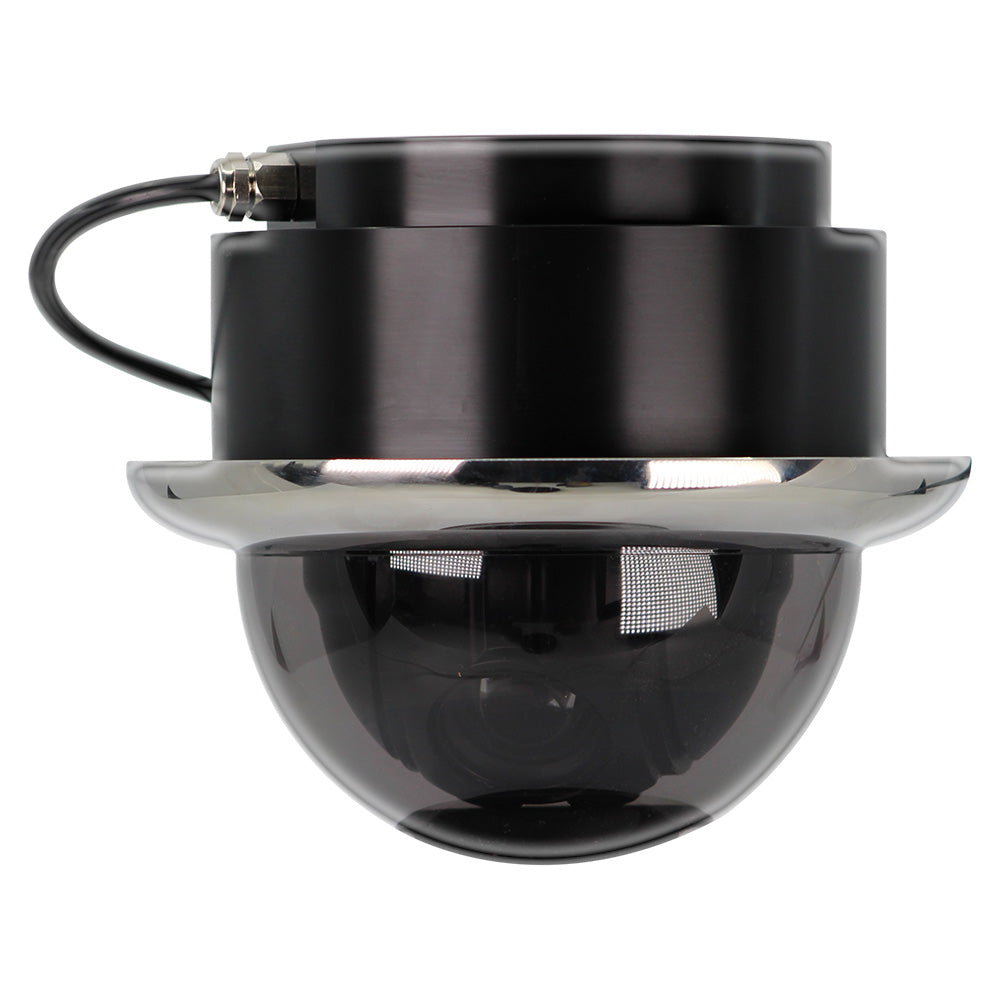

Iris Innovations IRIS106 Miniature Marine PTZ Dome Camera - 1000TVL High-Resolution Sensor

Miniature Marine PTZ Dome Camera - Stainless Bezel - Hi-Resolution Analogue Sensor - 1000TVL - 4 in 1 Video Format

The IRISx106 range of multi-format miniature, controllable cameras are the smallest marine PTZ cameras available on the market and provide fast, smooth variable speed control in a variety of formats to suit your requirements.

The IRIS106 features a high-resolution camera sensor that can be switched to output analog (CVBS), AHD, HD-TVI, and HD-CVI video formats depending on your requirements. In analog mode (default), the camera will be connected directly to all MFDs that feature a composite video input to provide a crisp, clear video image. Set the camera to HD-TVI and connect via one of our Hybrid recorders or TVIHDMI encoders, and you will achieve 1080P high-definition video in real time, compatible with MFDs that feature digital (HDMI / DVI) inputs.

The camera can be controlled by our IRIS595 joystick controller, TE01 rotary controller, or via an Iris HVR interface. Data communication to the camera is achieved via a two-wire RS485 serial data connection.

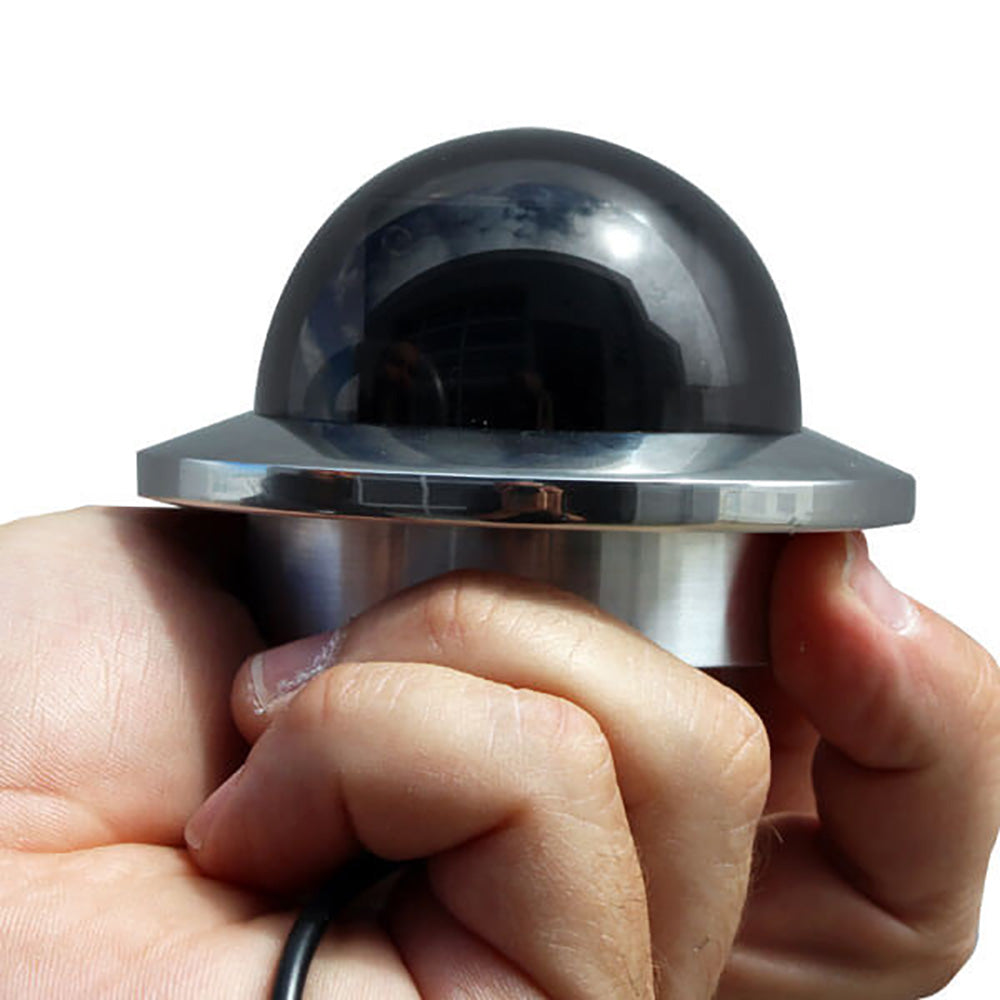

The camera housing is designed to be as small as possible, simplifying installation and fitting in discreetly with the boat's aesthetic, unlike other large, unsightly marine PTZ cameras. The body of the camera is made from lightweight but tough ABS plastic, and the dome is cast from smoke acrylic. The camera housing is finished off with a marine-grade stainless steel bezel with a high polish (standard). A surface mount bracket is also available for the camera (Part Number: BRK106) facilitating installation directly onto a bulkhead. This is often used when installing in engine rooms where it is not possible to recess mount the device.

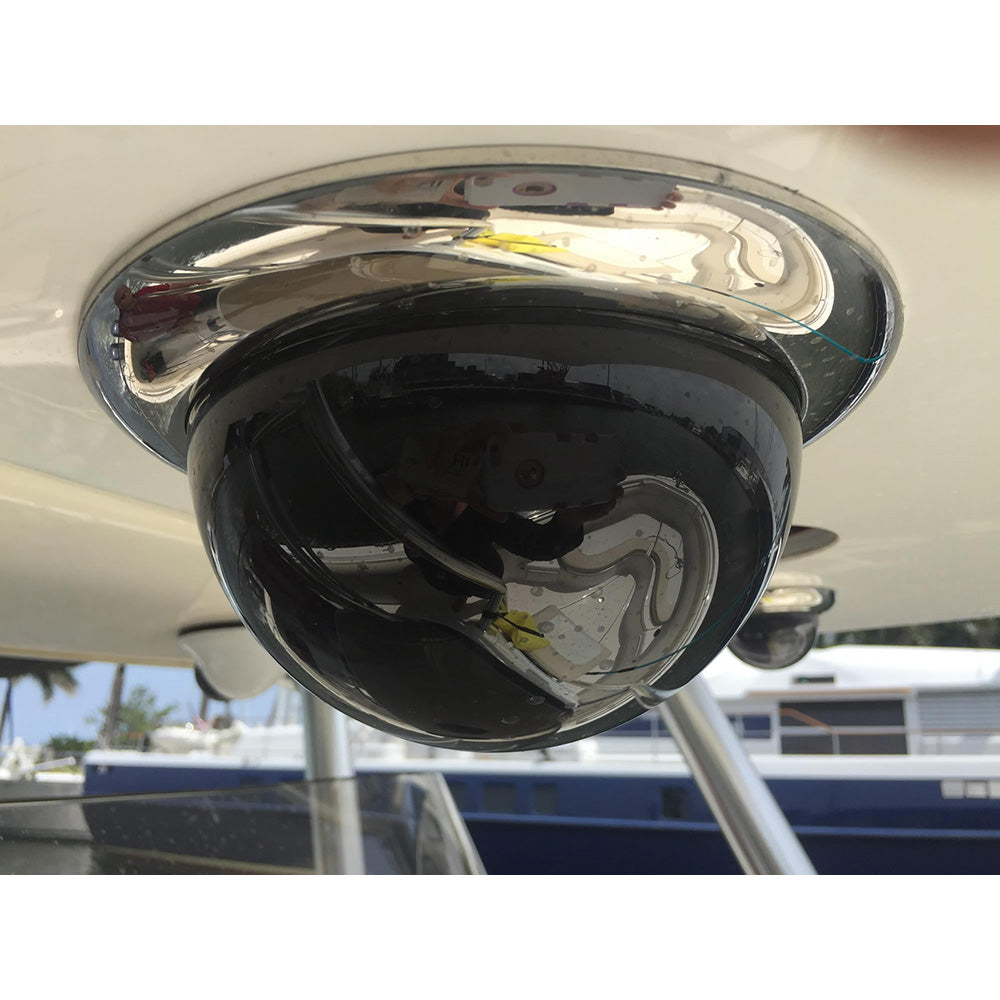

Because of its small size and sleek design, the IRIS4106 can be used for deck, companionway, tender monitoring, engine room monitoring, and as part of your onboard surveillance system. In summary, the 4106 is a very versatile, robust, and controllable marine PTZ camera.

Features:

• Marine Grade 316 Stainless Case


• The smallest PTZ dome available (86 mm)


• Analog


• Huge compatibility


• Easy installation & low power


• Stylish high-polished finish


• Fast, responsive pan, tilt, and zoom operation

Specifications:

• Lens (millimeter): F1.8 / F=4.9mm 49mm


• Image Sensor (inch): 1/3” Panasonic CMOS


• Image Processing: Composite


• Effective Pixels: 1944(H) x 1092(V) Approx 2.12M Pixels


• Resolution: 1000TVL


• Min Illumination: 0.1 Lux (Colour) / 0.01 Lux (B/W)


• Illumination: NA


• IR Distance: NA


• Day / Night: Auto / Day / Night


• S/N Ratio: >48dB


• Optical Zoom: 10x


• Digital Zoom: 10x


• Wide Dynamic Range: Off / Low / Middle / High (WDR SNR 120dB)


• BLC: Off / BLC


• 3D DNR: Off / Low / Middle / High


• Mirroring: Horizontal Flip / Vertical Flip


• AGC: 0-32


• Pan Details: 360-degree Continuous Rotation / Speed 0.5300-degree sec


• Tilt Details: 0 90-degree / Speed 0.5300-degree sec


• Network: NA


• Protocol: PELCO-D / RS485 serial data


• Power over Ethernet: NA


• P2P: NA


• Smart Phone: NA


• Compatibility: All MFDs with Composite Video Input


• Max Users: NA


• Power: +/-12VDC


• Power Consumption: 0.8A Max


• Operating Temperature: -20-degree C + 60-degree C


• Dimensions (millimeter): Bezel OD = 154mm, Panel Cutout = 122mm, Depth Behind Panel = 58mm (For IRIS4106 model additional space should be allowed for RJ45 Connector), Draft = 73mm


• Ingress Protection: IP66


• Weight: 1.1Kg


• Material: 316L Stainless Steel Bezel, Polycarbonate Dome, ABS Plastic Housing

Crafted from tough ABS plastic and finished with a stylish marine-grade stainless steel bezel, the IRIS106 is not only robust but also discreet, making it ideal for installations in engine rooms, on decks, or in companionways. Its small size and lightweight design facilitate easy installation while maintaining the aesthetic of your vessel. Control the camera effortlessly with the IRIS595 joystick, TE01 rotary controller, or Iris HVR interface, enhancing your onboard surveillance capabilities.

With a fast and responsive pan, tilt, and zoom operation, this camera is perfect for monitoring critical areas of your boat. The IRIS106 is a versatile addition to any marine surveillance system, providing both performance and style while ensuring the safety and security of your marine activities.

Features:
* Marine Grade 316 Stainless Case for durability
* Compact design, the smallest PTZ dome available
* Multiple video format compatibility for flexibility
* Easy installation with low power consumption
* High-polished finish for an elegant look
* Fast and responsive pan, tilt, and zoom functions
