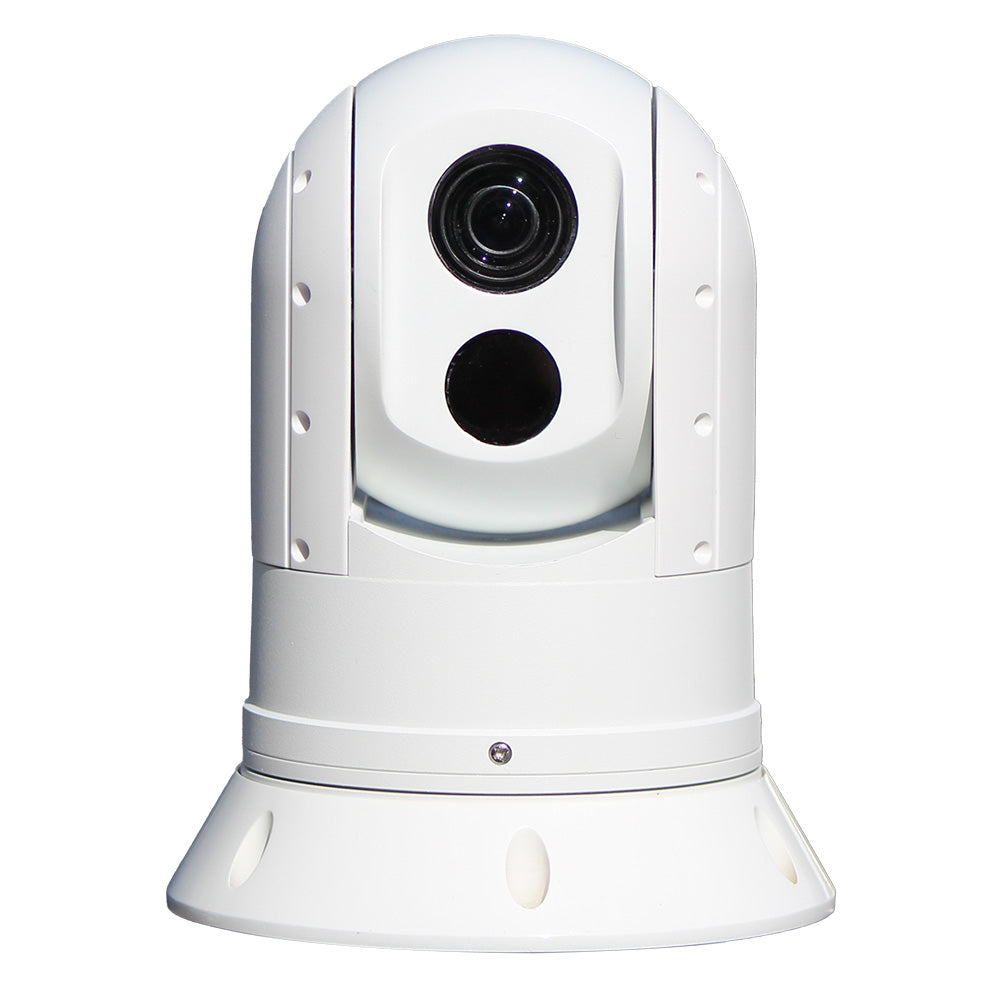

Iris Innovations A395 Dual Payload Thermal and Visible Spectrum IP PTZ Camera with 10x Optical Zoom - IRIS-A395

A395 Dual Payload 640x512 Thermal + 1080P (10x Zoom) Visible Spectrum IP PTZ Camera

The IRIS-A395 Low-Cost Dual Payload Night Vision PTZ From Iris Innovations.

With an industry-leading 400300 thermal resolution, the cameras also feature a 2MP high-definition visible spectrum camera core with excellent low light performance, super sharp footage, and 10x optical zoom capabilities.

Available with side entry or base entry cable options, the cameras are built into a robust yet compact waterproof case, designed to protect the unit from the harshest environmental conditions.

Each sensor has its IP address meaning the cameras can be configured, controlled, and switched independently, and are compatible with many leading marine chart plotters via our range of CMAC camera management interfaces. An RS485 Serial Data connection is also provided to maximize control options so Atom cameras can be controlled using suitable joystick control devices and NVRs. With its rugged, compact footprint and extremely competitive pricing, our ATOM range of IP PTZ cameras is the perfect solution for vessels of all types and sizes and our industry-leading thermal imaging technology opens up a world of boating at night in safety. Standing only 8 high, ATOM cameras blend into the vessels aesthetic without standing out, and because they are so small they are the perfect camera solution for RIBs, center consoles, and sports fishing boats.

To maximize compatibility, the ATOM-A395 is both ONVIF compliant and as the camera is also NDAA compliant, can be used for government, military, and other security-sensitive applications.

Features:

• Dual Spectrum Cameras - Thermal Visible Spectrum


• Visible Spectrum Camera 2MP HD Resolution 10x Optical Zoom


• 640x512 (A395) thermal core resolution - 4x Digital Zoom


• Miniature - Lightweight Compact Form Factor


• Dimensions 206mm x 160mm / 2Kg Weight


• Available with single IP address or dual IP addresses


• Side mount or Rear mount Waterproof Cable Connector


• Push Lock Quick Connector - IP66


• 12m Pixel Pitch


• Features IP and RS485 Serial Data Control


• 750mA @ +12VDC Power / 8.4W


• IP66 Environmental Rating

Technical Specifications:

• Thermal Camera Resolution - 640x512


• Thermal Camera Lens - 19mm


• Pixel Pitch - 12m


• Refresh Rate - 25/30Hz


• Color Pallets - White Hot / Black Hot / Fulgurite / Iron Red / Hot Iron / Medical / Arctic / Rainbow 1 / Rainbow 2 / Tint


• Image Enhancement - ICE Image Contrast Enhancement - 7 Levels


• Zoom - x4 Smooth Digital Zoom - Continuous


• Visible Spectrum Camera - 1/2.8 High-Performance Low Illumination SONY CMOS Sensor IMX327


• Resolution - 1920 x 1080 25/30 frames/sec


• Focal Length / Iris / Zoom - F = 4.7mm 94mm / F1.6 F3.5 / 20x Optical Zoom


• Compression - H.264 / H.265


• Bit Rate - 32Kbps 16Mbps


• Frame Rate - 1-25fps(50Hz) / 1-30fps(60Hz)


• Streams - Supports dual stream, main stream (1080P; 960P; 720P), Sub Stream (D1; VGA; CIF)


• Cellular/WiFi/GPS - Optional


• Protocols - Network Protocols: ONVIF Profile S / Others TBC Serial Data: RS485 / Pelco D


• Power Requirements - +12vDC / 750mA / 8.4W

The Iris Innovations A395 Dual Payload IP PTZ Camera is an advanced surveillance solution designed for demanding environments, offering both thermal and high-definition visible spectrum imaging in a compact, waterproof enclosure. This versatile camera is ideal for marine vessels, security applications, and outdoor monitoring where high performance and durability are essential.

Equipped with an industry-leading 640x512 thermal sensor, the A395 captures detailed thermal images, enabling effective night vision and heat signature detection even in complete darkness or harsh weather conditions. Its thermal core features a 19mm lens and supports 4x digital zoom, allowing for precise thermal imaging at various distances. Complementing the thermal capabilities is a 2MP high-definition visible spectrum camera with a 20x optical zoom and F = 4.7mm to 94mm focal length, ensuring sharp, clear footage in low-light scenarios. The visible camera's advanced SONY CMOS sensor provides 1920x1080 resolution at 25/30 frames per second, delivering detailed video with smooth motion.

The Iris A395 is built for rugged outdoor use, featuring an IP66-rated waterproof and dustproof enclosure. Its miniature footprint, measuring approximately 12.8 inches long by 6.3 inches wide and less than 7 inches high, makes it suitable for installation on a wide range of vessels, from RIBs to large yachts. The camera can be configured with either a single or dual IP address setup, with options for side or rear cable entry, and utilizes a Push Lock IP66 quick connector for secure and waterproof connections.

This camera supports multiple control protocols, including ONVIF compliance and RS485 serial data, enabling integration with various NVRs, joystick controllers, and marine chart plotters. Its power consumption is approximately 8.4W at +12VDC, ensuring efficient operation. Designed to meet the highest standards, the A395 is NDAA compliant, making it suitable for government and military applications as well as commercial use.

With its combination of thermal imaging, high-resolution visible spectrum video, and robust construction, the Iris A395 offers a comprehensive surveillance solution for vessels, security operations, and outdoor monitoring. Its exceptional thermal and optical capabilities, coupled with ease of integration and control, make it a valuable asset in any security or safety-focused environment.

Features:
* Dual Spectrum Cameras - Thermal 640x512 resolution and 2MP HD visible spectrum with 20x optical zoom
* Thermal Camera - 19mm lens with 4x digital zoom for detailed heat signatures
* High-Definition Visible Camera - 1920x1080 resolution at 25/30 fps with 20x optical zoom
* Rugged Waterproof Enclosure - IP66-rated for outdoor and marine environments
* Compact and Lightweight Design - Approximate dimensions of 12.8 inches long, 6.3 inches wide, and 6.9 inches high, weighing less than 26 ounces
* Multiple Control Options - ONVIF compliant, RS485 serial data interface, and multiple mounting options
* Power Efficiency - Consumes around 8.4 watts at +12VDC
* Environmental Durability - Built to withstand harsh conditions with dustproof and waterproof features
* Versatile Connectivity - Side or rear cable entry, push lock quick connectors, dual IP address support
* Industry-Leading Imaging Technology - Night vision, heat signature detection, and detailed optical zoom for comprehensive surveillance
