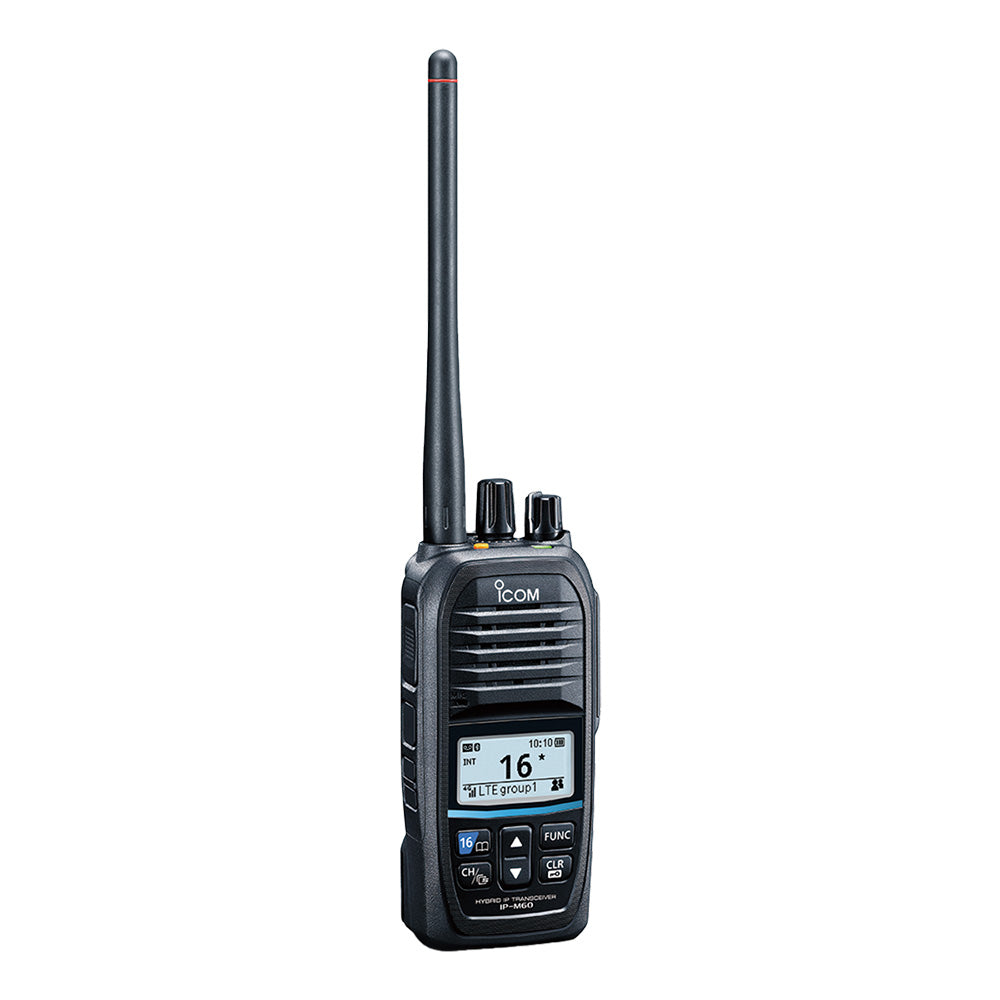

Icom IP-M60 Hybrid LTE Plus Marine VHF Radio - Land and Sea Communication Solution

IP-M60 Hybrid LTE Plus Marine VHF Radio

Supports Communication at Sea on Land

The IP-M60 is the worlds first hybrid IP radio, combining two communication modes in one device: VHF marine and LTE. It functions as a marine VHF handheld mobile radio - widely used for maritime safety - and as a land-based LTE cellular radio for long-distance communication within cellular coverage areas.

The IP-M60 is ideal for use offshore, in ports, rivers, and canals where both maritime and land-based communication are needed. Its especially useful for rescue boats coordinating with search-and-rescue agencies, or during events like yacht races that require communication across multiple networks.

Cellular (LTE) Mode

In Cellular mode, communication takes place over the carriers LTE (or 3G) network, allowing calls anywhere within coverage. Simultaneous TalkListen enables full-duplex communication, so users can talk and listen at the same timejust like a phone call.

Marine Mode

This mode operates as a VHF marine radio, offering the same core functions and performance as traditional models like the Icom IC-M25. VHF marine communication is essential for ensuring maritime safety between vessels and coastal stations.

Cellular (LTE) + Marine Mode

Cellular and Marine modes can be used simultaneously (simultaneous reception is possible, and audio is MIXED.) PTT buttons for Main and Sub-mode make it possible to select the communication mode assigned to each with one touch. The communication mode can be selected quickly without having to switch modes. Simultaneous transmission on both channels is possible by pressing the PTT buttons for the Main and Submode at the same time.

Four Sub-Modes - Automatically Select Transmission Mode

Cellular + Marine Mode offers four sub-modes: Cellular Main, Marine Main, Adaptive PTT with Cellular Main, and Adaptive PTT with Marine Main. Below are examples of Cellular Main and Adaptive PTT with Cellular Main modes. The same settings can be swapped between Marine and LTE modes.

Cellular Main Mode

In the Cellular Main mode, the IP-M60 typically stands by in Cellular mode and initiates calls to cellular groups by pushing the Main PTT button. However, if a call is received on a marine channel, the radio temporarily switches to the Marine mode to respond on the marine channel.

Adaptive PTT with Cellular Main Mode

In this mode, the radio remains in the Cellular mode by default and initiates calls to cellular groups when the Main PTT button is pressed. As the operator moves to a preprogrammed marine area (GPS point), the radio automatically shifts to the Marine mode and transmits on a marine channel.

Relay Mode Transfers Received Audio to Another Mode

Relay Mode transfers received audio between the marine and IP radio groups. When operating in this mode, the IP-M60 automatically forwards incoming voice signals without playing them through the speaker.

*The Relay function may be prohibited in some countries.

Bluetooth Technology Enables Wireless Operation

The built-in Bluetooth unit provides a wireless connection between the IP-M60 and an optional Bluetooth headset. It also has a VOX function that enables automatic voice transmission in response to your voice, allowing hands-free operation.

1500 mW Speaker Output, Provide Clear Loud Audio

Icoms custom high-power capacity speaker delivers a loud 1500 mW audio output with advanced acoustic sound clarity for noisy environments.

MIL-STD-810 IP67 Specifications

The IP-M60 is tested to U.S. Military standard environmental tests and dust-tight and waterproof rating of IP67*. It can be used with peace of mind on decks exposed to rain or splashing water, or in dusty conditions such as during ship repairs.

*1 meter (3 feet) under water for 30 minutes.

AquaQuake Draining Functions

Icoms unique AquaQuake function emits a buzzing sound, shedding water from the speaker grill. The IP-M60 provides clear sound even if it gets wet from rain or waves.

Emergency Call Functions*

Simply by pushing the Emergency button, an emergency call can be made with an audible warning to a pre-defined destination. In addition to pressing the Emergency button, the Emergency call can be triggered by the Man Down, Lone Worker, and Motion/Stationary functions.

*Emergency call functions work in the Cellular mode.

Status Function Posts the Current Status

Current Status information, such as Break, Working, and Meeting can be posted and referenced from other radios. In addition, predefined short messages (up to 32 characters) can be sent to the talkgroup.

Vibration Alert Function Notifies You of an Incoming Call

The Vibration Alert function notifies the user that a call or text message has been received with a strong vibration. This function can be configured for individual calls, group calls, all calls, or only when receiving text data, depending on how it is used.

Last Four Minutes Recording*

The IP-M60 has a recording and playback function, so that if you miss something, you can listen to it again immediately.

*Maximum recording: 4 minutes or 10 recordings

Dedicated Channel 16 Button

Channel 16 is the international Distress, Emergency, and Calling channel. Push the Channel 16 button to monitor the channel.

Dualwatch Tri-Watch Functions

Dualwatch and Tri-watch functions allow you to monitor Channel 16 and another working channel simultaneously. This is especially useful in scenarios like yacht races, where race announcements are made on one channel while Channel 16 must still be monitored for safety.

Features:

• Noise-canceling function reduces background noise from the transmitting voice


• The Automatic Firmware Update and Provisioning function works through an LTE connection


• Priority call with a high-priority authority


• Dual SIM capability to install two SIM cards at the same time


• One Touch PTT function keeps transmitting while you are talking


• Address book for storing talkgroup IDs


• Favorite channel scan, Priority channel scan, and Auto Scan Start functions


• Weather channel receiver with a Weather Alert function*

*Depending on the transceiver version.

*1 According to Icom research as of February 2024.

*2 Coverage area depends on the LTE network provider.

The Icom IP-M60 Hybrid LTE Plus Marine VHF Radio seamlessly combines maritime VHF communication with land-based LTE cellular connectivity, providing a versatile solution for offshore, port, river, and canal operations. Designed for safety and efficiency, this device supports simultaneous voice transmission over both modes, enabling users to coordinate across vast distances and diverse environments. Its dual-mode capability is particularly valuable for rescue operations, yacht races, and maritime logistics, where reliable communication is critical. The radio's innovative design allows operators to switch effortlessly between marine and cellular channels or use both simultaneously, with dedicated PTT buttons simplifying mode selection and allowing for quick response during emergencies or routine operations. The IP-M60 offers four sub-modes, including adaptive transmission modes that automatically switch communication channels based on GPS location, ensuring optimal connectivity without manual intervention. This feature enhances safety and operational continuity, especially in dynamic environments. The device's Bluetooth integration supports wireless headset operation and VOX voice activation, facilitating hands-free communication in demanding situations. The high-power 1500 mW speaker ensures clear audio even in noisy settings, while the rugged MIL-STD-810 and IP67 ratings guarantee durability against dust, water, and harsh weather conditions. Additional features such as AquaQuake water shedding, emergency call functions, status updates, vibration alerts, and a four-minute recording capability make the IP-M60 a comprehensive communication tool. The inclusion of dual SIM slots, priority calling, and advanced scan functions further enhances its versatility, making it suitable for professional maritime and land-based operations that demand reliable, multi-network communication. Whether used on deck, in rescue boats, or during land emergencies, the Icom IP-M60 delivers robust performance, innovative features, and seamless connectivity to meet the demands of modern communication needs at sea and on land.

Features:
* Supports simultaneous marine VHF and LTE cellular communication for versatile operation
* Dual-mode operation allows switching or combining marine and cellular channels with ease
* Four sub-modes including adaptive transmission modes based on GPS location
* Bluetooth technology enables wireless headset use and VOX hands-free operation
* 1500 mW high-power speaker offers clear audio in noisy environments
* MIL-STD-810 and IP67 ratings ensure rugged durability against water, dust, and impact
* AquaQuake function sheds water from the speaker grill for clear sound in wet conditions
* Emergency call functionality allows quick alerting in critical situations
* Status posting and messaging features facilitate effective communication and coordination
* Vibration alert notifies users of incoming calls or messages in noisy or hands-busy scenarios
* Four-minute voice recording and playback support review of missed communications
* Dedicated Channel 16 button for monitoring distress and emergency channels
* Dualwatch and tri-watch functions enable simultaneous monitoring of multiple channels
* Automatic firmware updates and provisioning via LTE connection ensure device stays current
* Support for two SIM cards enhances connectivity options and network redundancy
* Priority call feature allows high-importance communications to override others
* Comprehensive scan functions for favorite, priority, and auto-start channel monitoring
