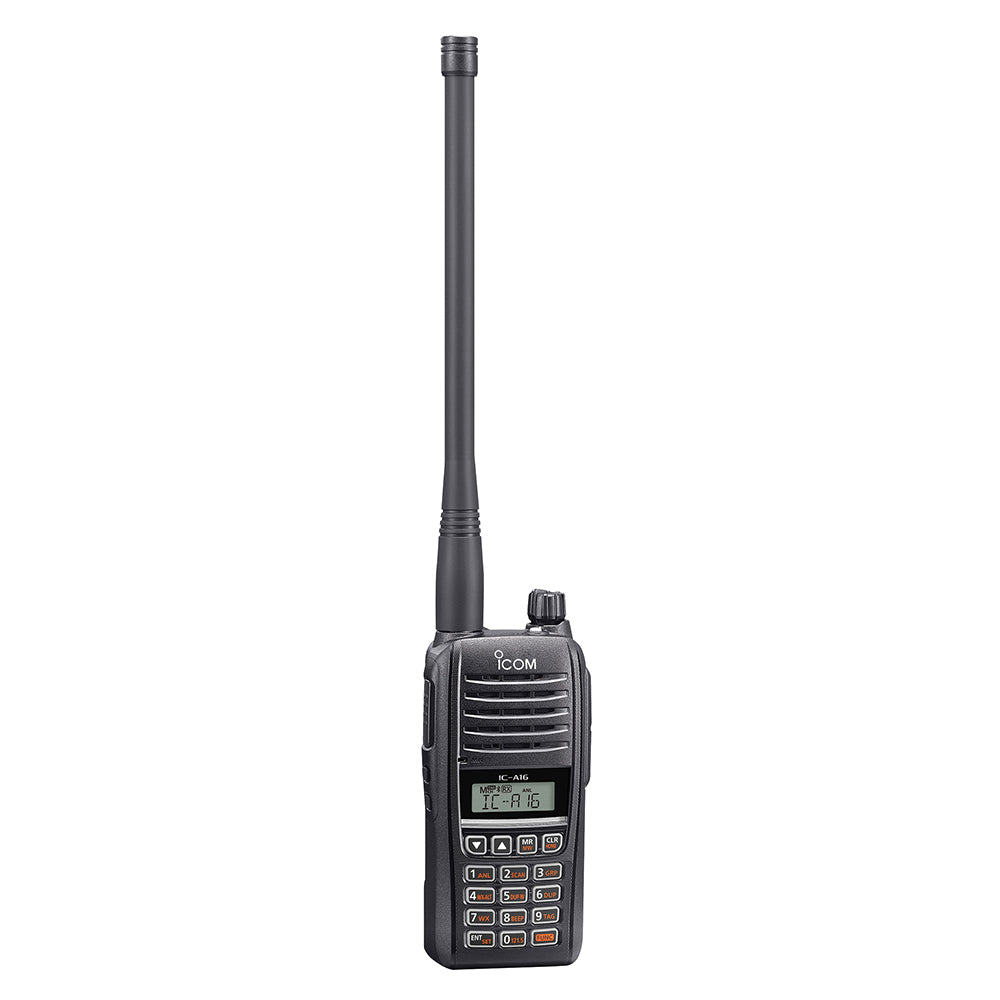

Icom A16 Entry Level Air Band Handheld Radio with 1500 mW Power and Bluetooth

A16 Entry Level Air Band Handheld Radio

8.33/25 kHz Ground to Air Radio with Class Leading 1500 mW Powerful Audio

Loud, Durable, Easy to Use

The A16 is the ideal flight companion for the student pilot. This radio practically pays for itself by saving pilots both engine hours and fuel during preflight communications with the tower. Users appreciate the A16s compact, waterproof design for one-hand operation for working on the flight line, using it for backup in any aircraft, or for use by ground crew. Its 2400mAh Li-ion battery lasts over 17 hours, and the radio includes a nice sit-in rapid charger.

Features:

• 8.33 kHz and 25 kHz Channel Spacing


• 1500 mW Loud Audio Provides Clear Communications


• 6 W (PEP) /1.8 W (Carrier) RF Output Power


• Built-in Bluetooth for Hands-Free Operation*


• *Bluetooth operation depends on the transceiver version.


• Large Capacity Battery Pack Provides 17 hours* of Long Battery Life


• *With BP-280. Typical operation with TX : RX : Standby = 5:5:90. (Bluetooth OFF, backlight OFF)


• Compact, Waterproof, Durable Body (IP67/54 and MIL-STD-810-G)


• LCD and Key Backlight for Night-Time Operation


• Compatible* with Third-Party Aviation Headsets


• *Optional headset adapter, OPC-2401 required.


• Auto Noise Limiter (ANL) for noise reduction


• Side Tone function


• Internal VOX capability


• 200 memory channels with names up to 8 characters


• BNC type antenna connector

Specifications:

• Frequency range: TX: 118.000136.99166 MHz, RX: 108.000136.99166 MHz, RX (Weather): 161.650163.275 MHz


• Number of memory channels: 200 channels


• Channel spacing: 8.33 kHz/25 kHz


• Type of emission: 6K00A3E, 5K60A3E, 16K0G3E (Weather)


• Power supply requirement: 7.2 V DC


• Current drain (approximate): TX High 1.8 A


• RX: Stand-by 65 mA typical


• Max. audio: 650 mA


• Antenna impedance: 50 (BNC type antenna connector)


• Operating temperature range: 10C to +60C, 14F to +140F


• Dimensions (WHD): (Projections not included) 52.2 111.8 34.1 mm, 2.1 4.4 1.3 in (with BP-280)


• Weight (approximate): 257 g, 9.1 oz (with BP-280)

The Icom A16 is an entry-level air band handheld radio designed for pilots, ground crews, and aviation professionals seeking reliable communication in a compact, waterproof package. Equipped with 8.33 and 25 kHz channel spacing, this radio ensures clear, interference-free communication across a wide frequency range, making it suitable for various aviation operations. Its 1500 mW loud audio output delivers crisp sound, even in noisy environments, while the built-in Bluetooth feature allows for hands-free operation when paired with compatible devices, enhancing safety and convenience during flights or ground activities.
The A16's durable construction meets IP67/IP54 standards and MIL-STD-810-G specifications, providing resistance against water, dust, and shock. Its ergonomic design features a backlit LCD and keypad, facilitating easy use in low-light conditions. The large 2400mAh Li-ion battery offers over 17 hours of continuous operation, supported by a rapid sit-in charger for quick power-ups during busy schedules. Additionally, the radio supports third-party aviation headsets with an optional adapter, ensuring versatile compatibility across various aviation setups.
Designed for versatility, the Icom A16 includes features such as auto noise limiter (ANL) for noise reduction, internal VOX for voice-activated operation, and a side tone function for clear audio feedback. With 200 programmable memory channels labeled with up to 8 characters, users can quickly access frequently used channels. The BNC antenna connector ensures reliable signal reception and transmission, while the compact size makes it ideal for one-handed operation, whether on the flight line or inside the aircraft cabin. Overall, the Icom A16 offers a practical, cost-effective solution for communication needs in aviation environments, combining durability, ease of use, and advanced features in a lightweight design.

Features:
* 8.33 kHz and 25 kHz channel spacing for flexible communication
* 1500 mW loud audio output for clear sound
* 6 W PEP / 1.8 W carrier RF output power for reliable transmission
* Built-in Bluetooth for hands-free operation*
* Large capacity 2400mAh Li-ion battery providing over 17 hours of use
* Compact, waterproof (IP67/IP54), and MIL-STD-810-G durable body
* Backlit LCD and keypad for easy operation in low light
* Compatible with third-party aviation headsets with optional adapter
* Auto noise limiter (ANL) to reduce background noise
* Internal VOX for voice-activated communication
* Side tone function for clear audio feedback
* 200 programmable memory channels with customizable labels
* BNC type antenna connector for reliable signal reception
