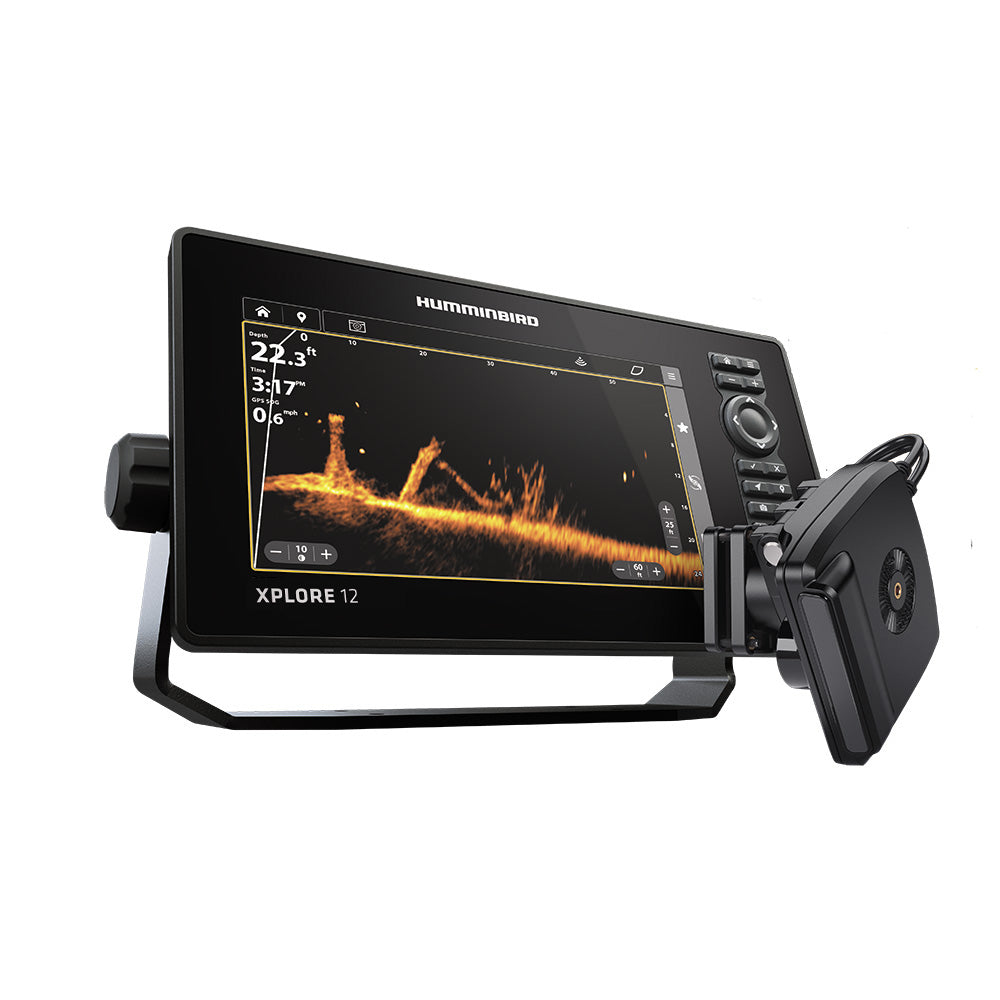

Humminbird XPLORE 12 CMSI+ Mega Live 2 Bundle with Transom Mount Transducer - 412020-1/ML2

XPLORE 12 CMSI+ Mega Live 2 Bundle with Transom Mount Transducer

THE XPLORE 12 CMSI+ features a 12 ultra-clear display with intuitive Cross Touch, MEGA Side Imaging+, MEGA Down Imaging+, Dual Spectrum CHIRP Sonar, and internal GPS with Humminbird Basemap. Unique to the XPLORE Series is the inclusion of Humminbird LakeMaster and CoastMaster map cards with 13 regions in the United States and Canada. This XPLORE 12 CMSI+ model includes Wi-Fi, NMEA 2000, Bluetooth, and Ethernet networking for compatibility with the One-Boat Network family of Humminbird, Minn Kota, and Cannon products.

Features:

Full-HD Display with Cross Touch interface:

• XPLORE delivers eye-popping detail with a 1280H x 800V display. See the incredible detail of sonar and chart images that will ensure you never miss a thing. Control it all using the touchscreen or the keypadits up to you.

Mega Live 2

• MEGA Live 2 is a live sonar transducer that features enhanced and vivid clarity of fish and structures. It mounts to a trolling motor shaft and delivers three viewing modes: forward, down, and landscape. It is compatible with all Humminbird APEX, SOLIX G3, and XPLORE models and Minn Kota trolling motors. See fish and structure in real-time. With no gaps in sonar coverage, powered by the unmatched detail and clarity of MEGA Imaging throughout the entire sonar view. To view everything down, out, and around your boat with live sonar. Choose from multiple viewing modes: Forward, Down, and Landscape.

Dual Spectrum CHIRP Sonar:

• Before you cast, know whats down there thanks to highly detailed fish arches and a clear view of the fish-holding structure and the bottom. Powered by our proprietary, Low-Q CHIRP transducer, Dual Spectrum offers two ways to search: Wide Mode for maximum coverage and Narrow Mode for focusing on the slightest detail.

MEGA Side Imaging+:

• See the world below like never before with crystal-clear Side Imaging viewing out to 200 feet on either side of your boat. Youll unlock more fish and structure with 20% more detail and 60% more range capability than MEGA Side Imaging sonar.

MEGA Down Imaging+:

• Get unprecedented underwater clarity with Down Imaging coverage down to 200 feet below your boat. Youll unlock more fish and structure with 20% more detail and 60% more depth capability than MEGA Down Imaging sonar.

Industry-leading Humminbird Sonar:

• Equipped with MEGA Side Imaging+, MEGA Down Imaging+, and Dual Spectrum CHIRP sonar to keep you on the fish. MEGA Imaging+ provides views up to 250 under and out to either side of your boat, and Dual Spectrum CHIRP shows exceptional 2D sonar with superior target separation and fish clarity.

Internal GPS and Humminbird Basemap:

• Our enhanced basemap provides you with a clear view of underwater terrain and surrounding points of interest so you can fish and navigate with total confidence. Identify buoys, day markers, hazards, marinas, contours, depth markers, and much, much more. Includes charts of more than 10,000 lakes, plus coastal coverage for the continental U.S.

Premium Chart Compatible:

• Humminbird provides the most complete offering of premium chart options to anglers everywhere. Get a complete view of the world below with optional charts from Humminbirds LakeMaster and CoastMaster products, as well as your choice of compatible Navionics charts. Includes LakeMaster and CoastMaster mapping cards with North American standard data.

AutoChart Live:

• Create real-time maps of your fishing spots, with access to patented Humminbird LakeMaster features. Map depth contours, bottom hardness, and vegetation as you drive your boat. Comes standard with eight (8) hours of built-in recording time and is compatible with AutoChart Zero Line SD cards for virtually endless AutoChart Live mapping capacity.

One-Boat Network Compatible:

• Many Humminbird models seamlessly integrate and communicate with Minn Kota and Cannon products to unlock more features and capabilities for anglers everywhere. Make more of your time on the water with the exclusive boat control and fish-catching features of the One-Boat Network.

Ethernet Networking:

• High-speed Ethernet allows you to build a powerful, professional-grade fishing system. Easily connect multiple fish finders, or upgrade to add-on technologies like Minn Kota i-Pilot Link and Humminbird CHIRP Radar.

Bluetooth:

• Take control right from the screen of your Humminbird with wireless communication to compatible Talon and Raptor shallow water anchors, as well as Cannon Optimum downriggers. Additional features include wireless software updates from the Humminbird One-Boat App and a display of smartphone notifications on your Humminbird.

NMEA 2000 Networking Built-in:

• Connect an accessory NMEA 2000 network to your control head for even more information; from boat performance to weather and water conditions, make sense of it all with NMEA 2000 networking.

Warranty:

• 2-Year Limited Warranty

Includes:

• Control head


• Power adapter


• Unit cover


• Mounting bracket


• Transducer

Compatible With

Minn Kota US2 Sonar, Minn Kota Built-In MEGA DI, Minn Kota Talon/Raptor, Minn Kota i-Pilot Link, Minn Kota Built-In MEGA SI, MEGA Live, NMEA 2000, MEGA 360, Radar, AutoPilot, One-Boat Network

Specifications:

• Memory Card Slot: Dual Micro SD


• Sonar-Standard: Dual Spectrum CHIRP, MEGA Side Imaging+, MEGA Down Imaging+


• Sonar-Optional: 50/83/200 kHz, Airmar High, High Wide, Medium, Medium Wide, and Low


• CHIRP - Frequencies Supported: Narrow Mode (180-240 kHz), Wide Mode (140-200 kHz), Full Mode (150-220 kHz)


• Sonar-Frequencies Supported: 50/83/200/455/800 kHz, HW DSC CHIRP, and MEGA


• Depth-Sonar: 3,500 ft (optional 50 kHz), 1,200 ft (standard transducer)


• CHIRP - Imaging Frequencies Supported: 455 kHz SI+ (405-505 kHz), 455 kHz (420-520 kHz), MEGA SI+ (1050-1175 kHz)


• Depth-Down Imaging: 200 ft (MEGA), 400 ft (455 kHz)


• Range-Side Imaging (Side-To-Side): 800 ft (455 kHz), 250 ft (MEGA)


• Interface: Touch Screen, Keypad Control


• Power Input: 10.8-20 VDC


• Power Output Peak-to-Peak: 8000 Watts


• Power Output RMS: 1000 Watts


• Screen Snapshot: Included


• Sonar Recording: Included


• Mount-Standard: Gimbal


• Mount-Standard Size: 14.145 in W x 8.911 in H x 3.989 in D


• Mount-Optional: In-Dash Mounting Kit


• Mount-Optional Size: 14.145 in W x 8.911 in H x 3.989 in D


• Transducer Mount Location: Transom


• GPS Chartplotting: Included


• GPS Receiver: Internal


• GPS Trackplotting: Not Supported


• Waypoints, Routes, Tracks/Points: 10,000, 50, 50/20,000


• 360 Imaging Compatibility: Yes


• MEGA Live Compatibility: Yes


• Humminbird Basemap: Included


• LakeMaster Compatibility: Yes


• CoastMaster Compatibility: Yes


• Navionics Gold/HotMaps Compatibility: Yes


• Navionics Platinum+ Compatibility: Yes


• Platinum Compatibility: Yes


• Minn Kota Advanced GPS Navigation Compatibility: Yes


• Minn Kota i-Pilot Link Compatibility: Yes


• Minn Kota Talon Shallow Water Anchor Compatibility: Yes


• Radar Compatibility: Yes


• 5-Port Ethernet Switch Compatibility: Yes


• AIS Compatibility: Not Supported


• Autopilot Compatibility: No


• Heading Sensor GPS Compatibility: No


• Heading Sensor GPS (NMEA 2000) Compatibility: Yes


• NMEA2000: Included


• Target Separation: 2.5 in


• Upgradable Software: Yes


• View Preset Keys: Yes


• X-Press Menu System: Yes


• Custom Digital Readout: Yes


• Custom View Selections: Yes


• Display Colors Grayscale: 24-Bit


• Display Type: Color TFT


• Speed: Included


• Temperature: Built In


• Temperature Alarm: Yes


• Temperature Graph: Yes


• HDMI Compatible: No


• Warranty: Two-Year Warranty

The Humminbird XPLORE 12 CMSI+ Mega Live 2 Bundle offers anglers an advanced fishing and navigation system with a vivid 12-inch Full-HD color TFT display featuring Cross Touch control for intuitive operation. With a resolution of 1280 by 800 pixels, this unit provides stunning clarity for sonar and mapping visuals, allowing users to see intricate underwater structures, fish arches, and detailed charts with ease. The bundle includes a transom-mount transducer, making it ideal for versatile boat setups. Its comprehensive feature set is designed to enhance your fishing experience through precise imaging and seamless connectivity, making it a valuable addition to any serious angler's equipment.

This model is equipped with Humminbird's industry-leading MEGA imaging technology, including MEGA Side Imaging+ and MEGA Down Imaging+, which extend your underwater view up to 250 feet on either side and down to 200 feet below your boat, respectively. These features deliver crystal-clear images with 20% more detail and 60% greater range than previous models, ensuring you don't miss any fish or underwater structures. The Dual Spectrum CHIRP sonar further enhances target separation and fish detection, offering multiple search modes—Wide for broad coverage and Narrow for focused viewing—so you can adapt to your fishing environment. The inclusion of MEGA Live 2 allows real-time sonar imaging with forward, down, and landscape modes, mounted on a trolling motor shaft for dynamic viewing angles and live fish tracking.

The integrated internal GPS and Humminbird Basemap provide detailed underwater terrain mapping and navigation. With coverage of over 10,000 lakes across North America and coastal maps of the U.S., you can identify key navigation points, hazards, and fishing spots with confidence. Optional premium charts from LakeMaster, CoastMaster, Navionics, and HotMaps expand your mapping options for a comprehensive view of water bodies. AutoChart Live enables you to create custom, real-time maps of your favorite fishing spots by recording depth contours, bottom hardness, and vegetation data as you explore. Connectivity features such as Wi-Fi, Bluetooth, Ethernet networking, and NMEA 2000 support allow seamless communication with Minn Kota i-Pilot, Talon, and Raptor shallow water anchors, as well as other compatible accessories.

This versatile system supports multiple networking options for professional-grade setups, including high-speed Ethernet for connecting multiple devices and expanding your fishing system. It also features wireless software updates, smartphone notifications, and compatibility with Humminbird's One-Boat Network, which integrates all your compatible Humminbird, Minn Kota, and Cannon products for centralized control and enhanced functionality. The bundle includes essential accessories such as a control head, power adapter, mounting bracket, and transducer, all backed by a two-year limited warranty, ensuring reliable performance and durability for extensive outdoor use.

Features:

• Full-HD color TFT display with 1280 x 800 resolution for sharp visuals

• Cross Touch interface provides intuitive touchscreen and keypad control

• Mega Live 2 live sonar transducer for real-time fish and structure visualization

• Mounts to trolling motor shaft for flexible viewing angles

• Supports forward, down, and landscape viewing modes

• Dual Spectrum CHIRP Sonar offers Wide and Narrow search modes for detailed fish detection

• Mega Side Imaging+ provides crystal-clear images up to 200 feet to each side

• Mega Down Imaging+ delivers underwater clarity down to 200 feet

• Industry-leading MEGA Imaging+ and Dual Spectrum CHIRP sonar for comprehensive underwater views

• Internal GPS with Humminbird Basemap for detailed waterway navigation

• Includes mapping cards for over 13 regions in the U.S. and Canada

• AutoChart Live creates real-time, customizable maps of fishing spots

• Wi-Fi, Bluetooth, Ethernet, and NMEA 2000 for seamless connectivity and system expansion

• Supports One-Boat Network for integrated control of multiple compatible devices

• Compatible with premium charts from LakeMaster, CoastMaster, Navionics, and HotMaps

• Built-in GPS and waypoint management with capacity for 10,000 waypoints

• Supports radar, autopilot, and other accessories via NMEA 2000 network

• Includes control head, power supply, transducer, and mounting hardware

• Two-year limited warranty for reliable performance
