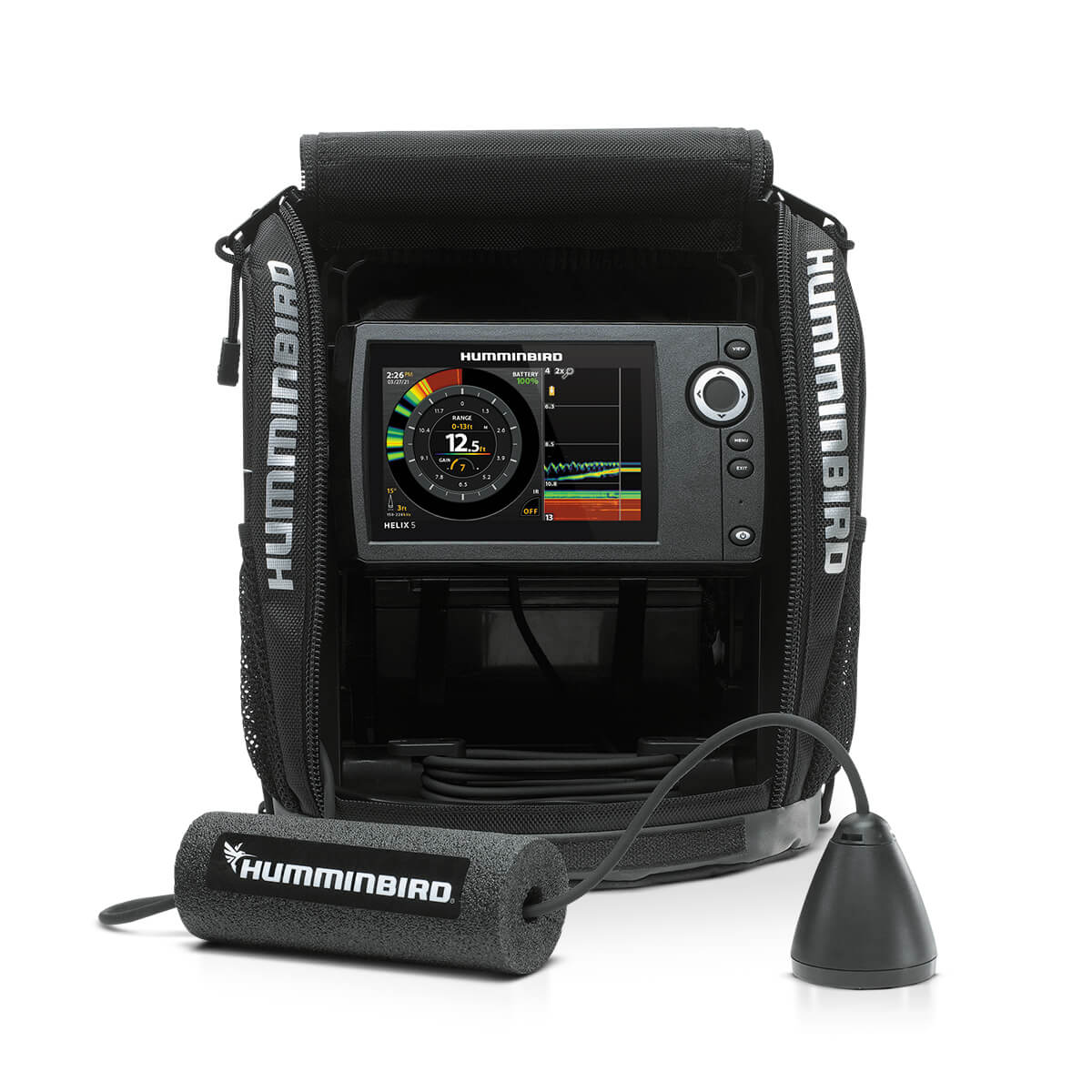

Humminbird HELIX5 CHIRP G3 Ice Sonar System

Humminbird ICE HELIX 5 CHIRP G3

Model: 411720-1

  • Dual Spectrum CHIRP Sonar: See high-resolution returns of individual fish, bait and structure on both the flasher and traditional 2D sonar views at greater depths and range, with target separation down to 3/4".

  • CHIRP Interference Rejection: Six settings keep competing sonar signals from cluttering your screen, providing a clear view in both sonar and flasher modes.

  • Adjustable Sonar Zoom: Hone in on fish, whether they are tight to the bottom, or suspended high in the water column. Utilize 2X zoom on the flasher screen, or up to 16X zoom on 2D sonar view.

  • Ultra Bright and Detailed LCD Display: The ICE HELIX screen provides everything you need to know, on a crystal-clear display with adjustable brightness. Whether in a fish house or on open ICE, you'll easily be able to see digital depth display, sonar returns and more exclusive features, all shown in real-time.

  • Jig Charge Mode: Use your ICE HELIX to charge up your glow-painted spoons and jigs and get back down to the hot bite quickly.

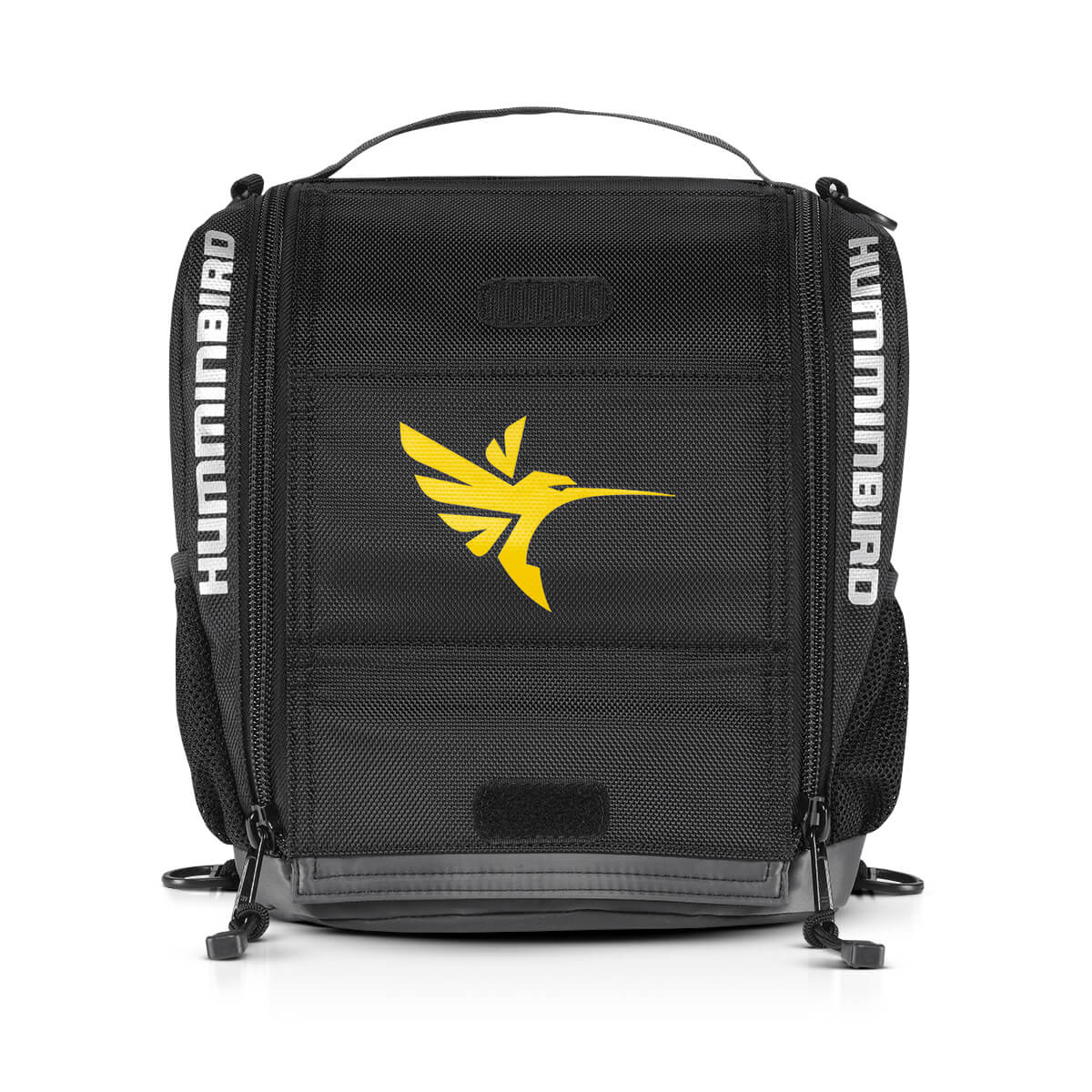

  • Portable Shuttle and Carrying Case: The soft-sided carrying case and shuttle mount protect your Humminbird ICE HELIX for safe transport and include built-in cable and transducer management.

  • Year-Round Capable: The ICE HELIX 5 CHIRP G3 works with all compatible HELIX 5 CHIRP G3 transducers. Simply install an accessory transducer, power cord and gimbal mount on your boat and you'll be ready to hit the water even after the ICE melts.

The ICE HELIX 5 CHIRP G3 gives you a deeper understanding of what's below the ICE, with exclusive features you won't find on any other ICE sonar unit. Utilize crystal-clear Dual Spectrum CHIRP Digital Sonar with 3/4" target separation, CHIRP Interference Rejection, Adjustable Sonar Zoom, Jig Charge Mode and unprecedented viewing options specifically for the ICE angler. You'll watch it all take shape on a full color, 5" HD LCD display.

Specifications

Display Size - Diagonal
5"

Display Pixel Matrix
800H x 480V

Sonar-Standard
Dual Spectrum CHIRP

Sonar-Coverage
15° & 21° @ -3dB

Sonar-Optional
50 kHz, 50/Low Airmar CHIRP

CHIRP - Frequencies Supported
50/200 (28-75/130-250 kHz), 83/200 (75-155/130-250 kHz), Full Mode (150-220 kHz), Narrow Mode (180-240 kHz), Wide Mode (140-200 kHz)

Sonar-Frequencies Supported
50/80/200 kHz

Depth-Sonar
400 ft

Interface
Keypad Control

Features
Dual Spectrum CHIRP, Interference Rejection, Jig Charge Mode, Portable

Memory Card Slot
None

Power Draw
615 mA

Power Input
10.8-20 VDC

Power Output Peak-to-Peak
4000 Watts

Power Input
10.8-20 VDC

Power Output Peak-to-Peak
4000 Watts

Power Output RMS
500 Watts

Screen Snap Shot
Not Supported

Sonar Recording
Not Supported

Mount-Standard
Portable

Transducer Mount Location
Portable

GPS Chartplotting
Not Supported

GPS Trackplotting
Not Supported

LakeMaster Compatibility
No

Coast Master Compatibility
No

Navionics Gold/HotMaps Compatibility
No

Navionics Platinum + Compatibility
No

Platinum Compatibility
No

Heading Sensor GPS Compatibility
No

Upgradable Software
No

View Preset Keys
No

X-Press Menu System
Yes

Custom View Selections
Yes

Custom Digital Readout
Yes

Speed
Not Supported

Temperature
Not Supported

Transducer Included
XI 9 1521


What's in the Box:


  • ICE HELIX 5 CHIRP G3 fish finder

  • Dual Spectrum CHIRP ICE transducer - XI 9 1521

  • 9Ah battery and Charger

  • ICE shuttle

  • Hardware

  • Power cable

  • Portable bag.
