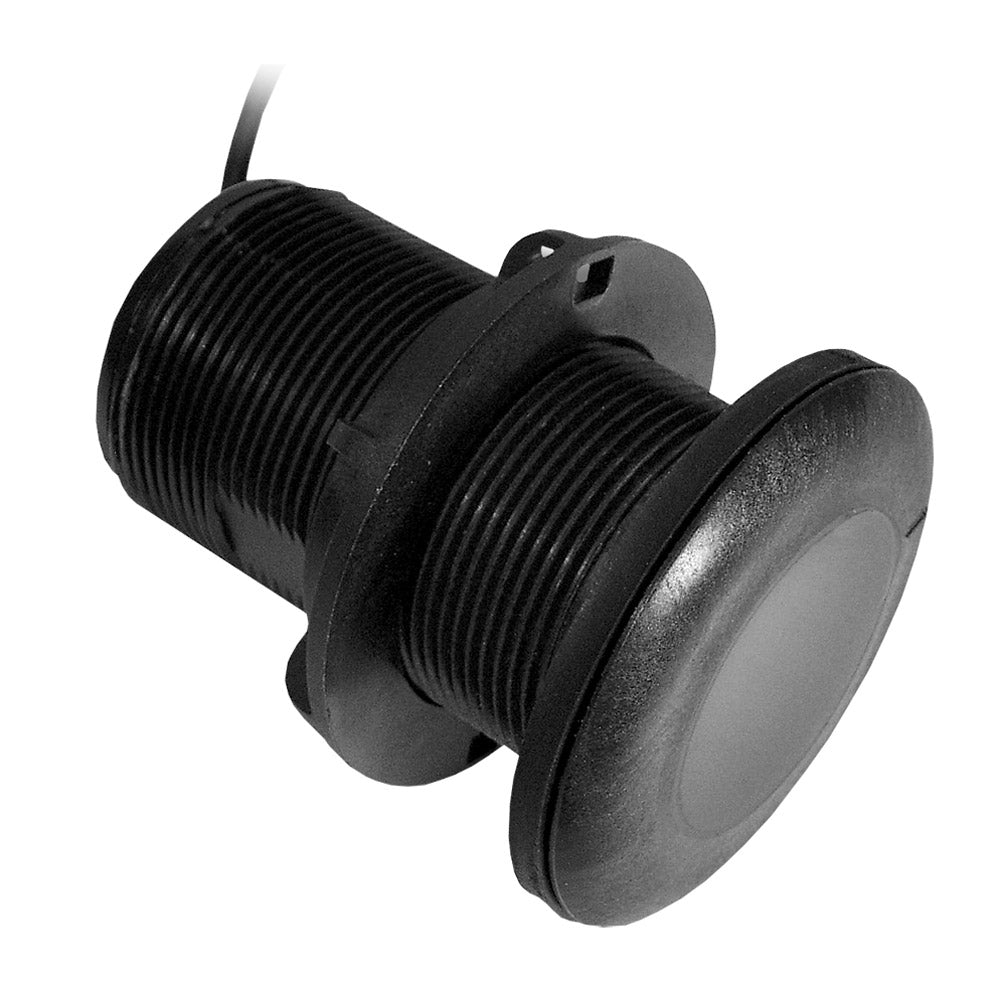

Garmin P19 Nylon 20? Tilt Transducer - 010-10218-22

Tilted Element™ Thru-Hull

Minimize Your Drag
The P19 model have been the standard in low-profile models for many years. Their large sensitive ceramics allow deep echosounding up to 206M (700'). These nearly flush units minimize drag as only 5mm (2/10") of the housing extends outside of the hull. The plastic P19 provides a vertical beam without a fairing. Inside the housing, the ceramic element is tilted to provide built-in deadrise compensation. The resulting vertical beam provides excellent echo returns for moreaccurate depth readings.

Applications

• Cruising powerboats and sailboats




• Sailboats

Features

• Depth only or Depth and temperature




• Fixed 20° tilted versions for 16° to 24° hull deadrise




• Right angle cable exit offers low headroom and protection when transducer is stepped on




• Included rubber washer allows tightening of the hull nut to irregular hull surfaces




• Housings are ABYC H-27 compliant




• Optional temperature sensor




• Plastic housing




• Boat Size: Up to 9M (30')

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Garmin P19 Nylon 20? Tilt Transducer is designed for optimal performance in marine environments, providing accurate depth readings essential for cruising powerboats and sailboats. With its sleek, low-profile design, this transducer minimizes drag by extending only a fraction outside the hull, ensuring a smooth ride. Equipped with advanced ceramic technology, it offers deep echosounding capabilities up to 700 feet, making it a reliable choice for avid sailors and boaters alike.

Features:
* Depth Measurement: Depth only or Depth and temperature options available.
* Tilted Design: Fixed 20? tilt designed for hull deadrise angles of 16? to 24?.
* Cable Exit: Right angle cable exit for low headroom and protection against stepping.
* Rubber Washer: Included rubber washer allows for secure tightening on irregular hull surfaces.
* Compliance: Housings meet ABYC H-27 standards for safety and quality.
* Temperature Sensor: Optional temperature sensor available for enhanced functionality.
* Housing Material: Durable plastic housing designed for long-lasting performance.
* Boat Size Compatibility: Suitable for boats up to 30 feet in length.
