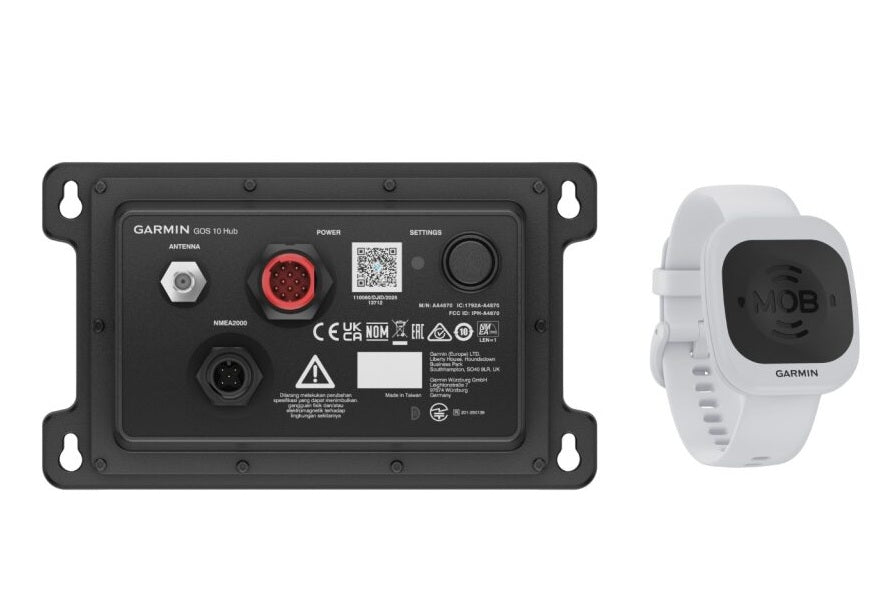

Garmin Onboard System Hub and One Tag - 010-02908-00

Garmin Onboard System Hub and One Tag

• TAGS ARE WORN ON WRIST, CARABINER OR KEY RING FLOAT


• TAGS ARE DESIGNATED AS EITHER CAPTAIN OR PASSENGER


• SET MOB TAG AS CAPTAIN TO ENABLE ENGINE CUTOFF


• TEMPORARILY UNPROTECT TAGS WITH EASE


• THE GOS 10 HUB INCLUDES A LOUD EXTERNAL ALARM


• TAG BATTERY LIFE EXCEEDS A SEASON OF TYPICAL USE

Built so you can move freely and boat confidently, the Garmin OnBoard system uses wireless tags instead of traditional tethered cords — integrating with your compatible Garmin chartplotter.

CAPTAIN TAG: Captain MOB detection will trigger engine cutoff, a MOB waypoint on the chartplotter and an audible alarm on the MFDs and hub.

WIRELESS: WIRELESS: The wearable MOB tags are part of a wireless MOB system, letting you move untethered while still being monitored.

PASSENGER TAG: Passenger MOB detection will trigger a MOB waypoint on MFDs plus an audible alarm on the MFDs and hub.

ENGINE CUTOFF SYSTEM: Should a captain tag trigger an MOB event, the system will cut power to the engines — letting the captain return to the vessel.

CAPTAIN OR PASSENGER TAGS: Through the Garmin chartplotter interface, you can designate each tag as either captain or passenger, changing their MOB action.

WAYPOINTS: When paired to your compatible Garmin chartplotter, a waypoint will be marked at the location where the MOB tag lost connection with the vessel.

AUDIO ALARM: The GOS 10 hub includes a loud external alarm, alerting you to a MOB event.

PAIR MULTIPLE TAGS: Provide peace of mind for up to 8 tags at a time.

VAST COMPATIBILITY: This product will work with any boat that has an engine cutoff switch.

Number of tags supported
8 simultaneous passengers and captains

User interface
Compatible Garmin chartplotter

MOB alarm
External beeper and MFD alert

Engine cutoff
Yes

View MOB details on MFD
Yes

View tag status on MFD
Yes (battery life, signal strength, protection status)

Manage tags on MFD
Yes (arm/disarm, captain/passenger)

Wireless engine kill
Yes

GOS Hub

Dimensions (HxWxD)
91.55 mm x 155.12 mm x 48.47 mm

Weight
171.7 g

Wireless range
66 ft (up to 20 m)

Supply voltage range
10-32 V

Operating temperature range
-15 C to 70 C

Typical power consumption
50mA @ 12 V or 0.6 W

NMEA 2000 LEN
1

Engine compatibility
Inboard, outboard, sterndrive from all major manufacturers

Engine interface
Hardwired, in-line connection to ignition harness

Number of engines supported
Up to 4 close-to-stop or 2 open-to-stop engines

Water rating
IPX6 and IPX7

Compass-safe distance
5 cm

MOB Tag

Dimensions (HxWxD)
43.94 mm x 38.60 mm x 11.96 mm

Weight
21.5 g

Wireless range
66 ft (up to 20 m)

Battery type
CR 2032 coin cell

Battery life
> 1,200 hours of connected time

View tag status on MFD
Yes (battery life, signal strength, protection status)

Water rating
IEC 60529 IPX8 (5 ATM)

Attachment
Wrist strap or carabiner

What's in the Box:

• GOS 10 Hub


• 12-pin fused power and engine cut-off harness with external buzzer


• External antenna for wireless connection to MOB tags


• NMEA 2000 tee and 6 ft drop cable


• White wireless MOB tag


• CR2032 coin cell battery


• White 20 mm quick release band


• Carabiner with 20 mm quick release attachment


• Floating foam keychain


• Installation hardware


• Documentation
