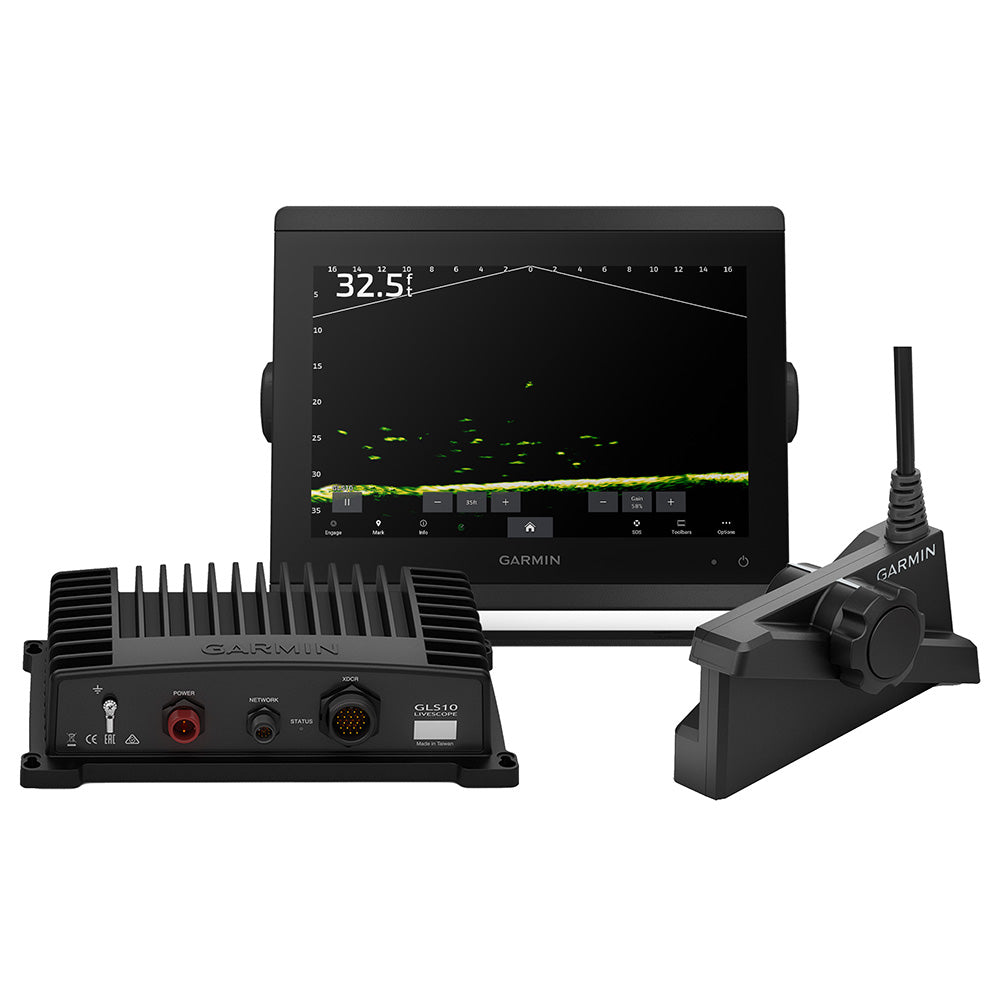

Garmin LiveScope* Plus Ice House System - Part Number 99860

LiveScope™ Plus Ice House System

Upgrade your on-ice experience with the GPSMAP® 8610xsv chartplotter, LiveScope Plus System, and everything else you’ll need to catch more fish.

Features:

• 10” full HD IPS touchscreen display


• Share to your TV or external display via HDMI output (HDMI cable not included)


• LiveScope™ forward and LiveScope™ down modes


• Preloaded with Garmin Navionics+™ mapping of 25,000+ inland and coastal lakes

GPSMAP® 8610xsv

This chartplotter features a 10” full HD IPS display with touchscreen and HDMI output, so you can display sonar on your TV or external display.

Ice House System

Get a GLS™ 10 sonar black box with a swivel pole mount and an LVS34-IF transducer, which features a transducer cable that stays flexible — even in freezing conditions.

LiveScope Modes

With an included 0-degree pole mount, the transducer can quickly switch between LiveScope Forward and LiveScope Down modes to adapt to your fishing technique.

Garmin Navionics+ Maps

You get preloaded Garmin Navionics+ maps for exceptional detail on more than 23,000 U.S. lakes.

Custom Combos

You can create custom pages that combine sonar, flashers, and maps on your display.

Built-In Sonar

See below and around your boat with built-in sonar capabilities, whether you’re on the ice or the open water.

In the Box:

• GPSMAP 8610xsv with preloaded Garmin Navionics+™ Coastal Charts and Inland Mapping for U.S. or Canada


• LiveScope Plus LVS34-IF transducer


• GLS™ 10 black box sonar module with power and network cables


• Ice fishing pole mount


• Documentation

General Specifications:

• Dimensions: 10.25 x 8.0625 x 2.95 in. / 25.9 x 20.5 x 7.5 cm


• Touchscreen: Yes


• Input: Touchscreen


• Display Size: 8.6 x 5.4 in., 10.1" in. diagonal / 21.8 x 13.7 cm; 25.7 cm diagonal


• Display Resolution: 1920 x 1200 pixels


• Display Type: WVGA, IPS


• Weight: 15.4 lbs / 7.0 kg


• Waterproof: IPX7

Maps & Memory:

• Accepts Data Cards: 2 microSD™ cards


• Waypoints: 5000


• Track Points: 50,000


• Tracks: 50 saved tracks


• Navigation Routes: 100

Ice Fishing Details:

• Bag Size: None


• Included Transducer: LiveScope™ Plus System with LVS34-IF


• Transducer Holding Feature: Pole mount

Sensors:

• Has Built-in Receiver: Yes


• Receiver: 10 Hz


• NMEA 2000 Compatible: Yes


• GPS: Yes


• Glonass: Yes


• Galileo: Yes


• Supports Waas: Yes

Built-in Maps:

• Built-in Auto Guidance+: Yes (downloadable via ActiveCaptain app)

Optional Map Support:

• Bluechart G3: Yes


• Bluechart G3 Vision: Yes


• Lakevü G3: Yes


• Lakevü G3 Ultra: Yes


• Garmin Navionics+: Yes


• Garmin Navionics+ VIision+™: Yes


• TOPO: Yes


• Standrad Mapping: Yes


• Garmin Quickdraw Contours: Yes


• Raster Chart Support: Yes

Chartplotter Features:

• ActiveCaptain® Compatable: Yes

Electrical Features:

• Power Input: 10 to 32 Vdc

Sonar Features & Specifications:

• Displays Sonar: Yes


• Power Output: 1 kW


• Traditional Sonar (Dual Frequency/Beam): Built-in (dual channel CHIRP, 70/83/200 kHz, L, M, H CHIRP)


• ClearVü™: Built-in 260/455/800/1000/1200 kHz


• SideVü™: Built-in 260/455/800/1000/1200 kHz


• Panoptix™ Sonar: Yes


• Livescope; Yes

Connections:

• NMEA 2000® Ports: 1


• Video Input Ports: 1 (BNC composite); 1 HDMI (HDCP compliant)


• Video Output Ports: 1 HDMI


• Garmin Marine Network Ports: 2


• 8-Pin Transducer Ports: Yes


• 12-Pin Transducer Ports: Yes


• Bluetooth® Pairing: Yes


• Ant+ (Connectivity): Yes


• Garmin Wi-Fi Network (Local Connection): Yes

WARNING: This product can expose you to chemicals including NICKEL (METALLIC) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov.

Enhance your ice fishing experience with the Garmin LiveScope* Plus Ice House System. This comprehensive kit includes the advanced GPSMAP? 8610xsv chartplotter and LiveScope Plus system, designed to help you catch more fish. With features like a high-definition touchscreen display and preloaded Garmin Navionics+ mapping, you*ll have everything you need for a successful outing on the ice.

Features:
* Display: 10-inch full HD IPS touchscreen for clear visibility
* HDMI Output: Share your sonar display with TVs or external monitors (HDMI cable not included)
* LiveScope Modes: Switch between LiveScope Forward and LiveScope Down to suit your fishing style
* Mapping: Comes preloaded with Garmin Navionics+ maps covering over 25,000 inland and coastal lakes
* Sonar Module: Includes GLS* 10 sonar black box for enhanced sonar performance
* Flexible Transducer Cable: Designed to remain flexible even in freezing temperatures
* Custom Combos: Create personalized pages that combine sonar, flashers, and maps
* Built-In Sonar: View below and around your boat with integrated sonar technology
* Easy Installation: Comes with an ice fishing pole mount for straightforward setup
* Advanced Features: Compatible with various Garmin maps and navigation tools
