Garmin GT360UHD Transducer for Spy Pole - 010-03012-10
Free Ground Shipping ( 2-6 Day Delivery Time )
Truck Freight: No
⏳ Hurry! Only 28 left in stock
Contact: 866-675-8464
30-day returns available
Manufactures Part Number: 010-03012-10
Truck Freight: No

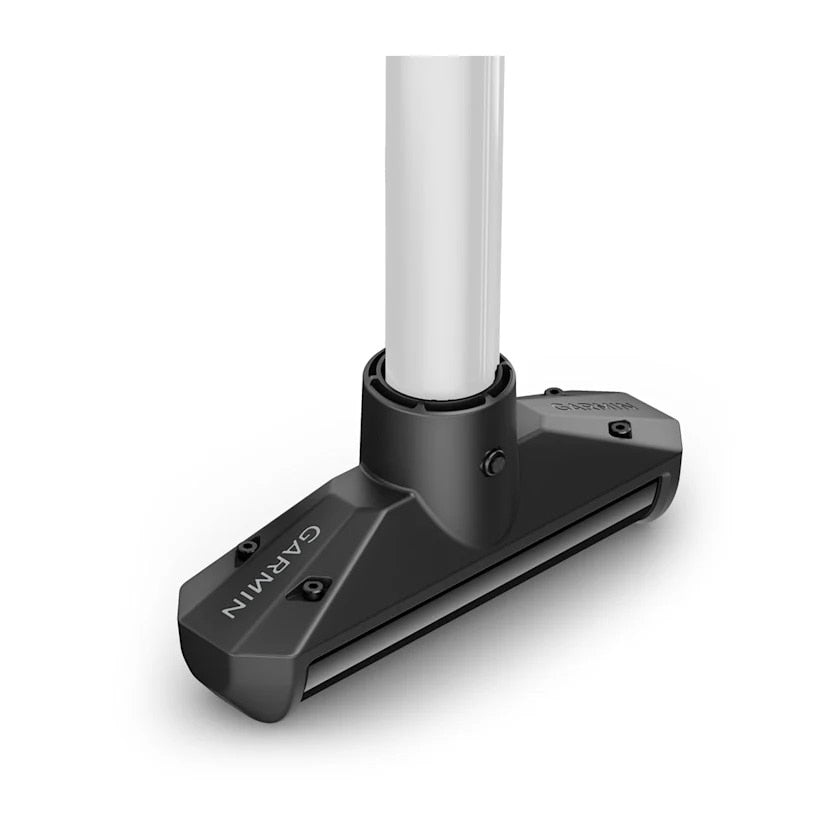

Garmin GT360UHD Transducer for Spy Pole
Model: 010-03012-10
- CAPTURE CRISP, CLEAR 360-DEGREE IMAGERY
- SEE A BIRD'S-EYE VIEW OF WHAT'S BENEATH THE SURFACE
- PAIR WITH YOUR COMPATIBLE GARMIN CHARTPLOTTER
- GET A LIVE WINDOW INTO 3D IMAGERY WITH LIVESCOPE SONAR
- TRUE MOTION TECHNOLOGY INTEGRATES WITH GPS TO KEEP SCANS TRUE TO LOCATION
See the underwater world like never before with the GT360UHD transducer. Mount it on Spy pole (sold separately) to capture OneVü sonar, 360 degrees of bird's-eye imagery around your boat in 2D and 3D views - then fish that area without having to constantly rescan. GT360UHD seamlessly integrates with GPS through True Motion technology, so your sonar scans stay true to location as your boat moves through the water. Combine with your LiveScope transducer to overlay your live sonar onto the detailed imagery for an all-new 3D view.
Specifications| Transducer frequency | OenVu/SideVu: 455 kHz, 800 kHz, 1070 kHz |
| Transducer power | 500 W |
| Transducer beamwidth | Oneu/SideVu 0.52 x 52 @ 1000 kHz, 0.64 x 35 @ 800 kHz, 1.1 x 52 @ 455 kHz |
| Transducer maximum depth | 500 ft range |
| Transducer cable length | 20.3 ft (6.2 m) |
| Transducer depth/speed/temperature | Depth and Temperature |
| Transducer number of pins | 12 |
| Dimensions (with mount; LxWxH) | 216 mm (8.5") x 58 mm (2.3") x 97 mm (3.8") |
| Transducer frequency | 455 kHz, 800 kHz, 1070 kHz |
What's in the Box:
- GT360UHD 12-pin transducer
- GT360UHD transducer mount for Spy Pole
- LiveScope adjustable perspective shaft mount
- Dogbone stabilizer
- Mounting hardware
- Documentation
